SuperRack SoundGrid / User Guide
68
Part 4: Patch Window
The Patch window is a grid that’s used for patching between assigned I/O devices on the SoundGrid network. It also
provides a quick way to assign racks to link groups and latency groups, and to get an overview of all group
assignments.
Patching is the same for each kind of connectiononly the frame around the Patching Grid changes to match the
nature of the assignment. Making a patch involves three steps.

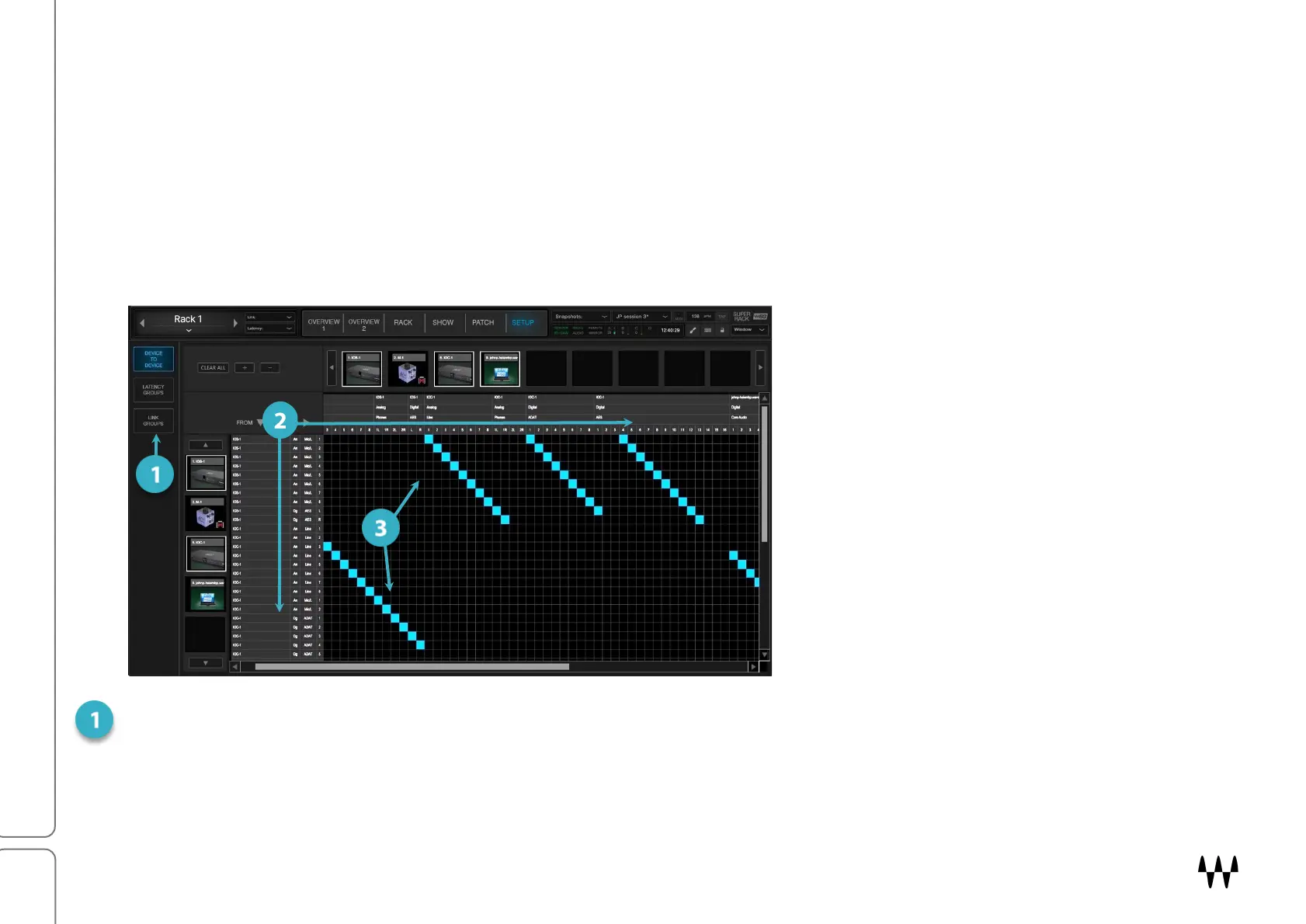

PATCH VIEWS: What kind of patch do
you want to make? This choice
establishes the patching framework.
PATCHING FRAMEWORK: These are
the devices and device channels or
groups available for patching, based on
the selected Patch View.
PATCHING GRID: The specific patch
points between devices or groups.
Patch Views
The Patch Views selector is on the left side of the window. Selecting a Patch View determines the category of patch.
This establishes the framework of the patch grid and sets the possibilities of what can be patched to what.
