MVW01C (COMPACT)
1200 mm*
600 mm
1000 mm
2800 mm
1000 mm
2316 mm
Input switchgear
phase-shifting transformer
18 pulse
WEG MVW01
compact VSD

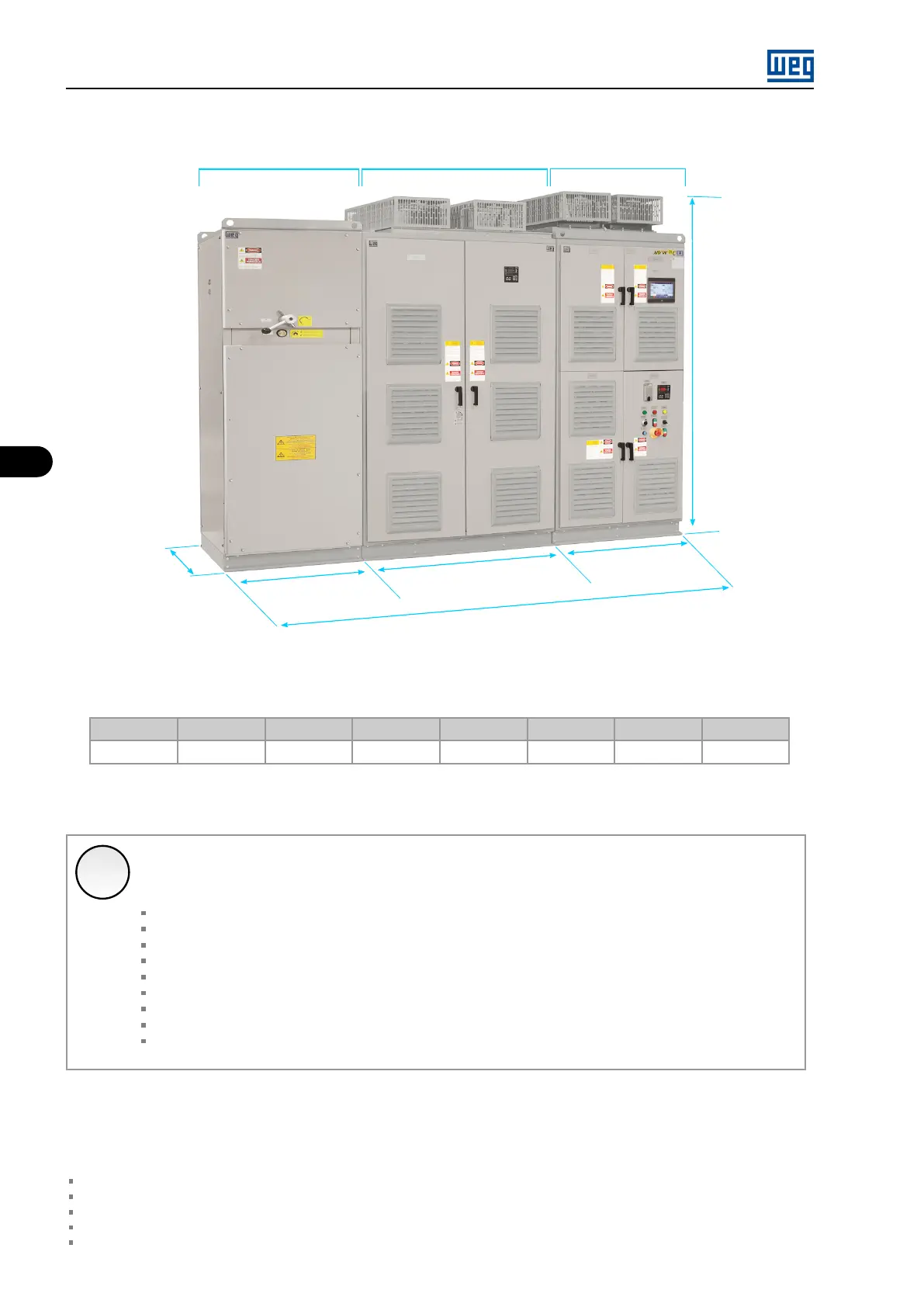

Figure 5.2: MVW01C panel
Table 5.1: Mechanical data (dimensions in mm)
Frame size
L
S
(mm) L
T
(mm) L
C
(mm) L (mm) H (mm) P (mm)
Weight (kg)
A0
600
1200 *
1000 2800 2316 980 900
Tolerance for all dimensions ± 10 mm.
✓
NOTE!
The values shown in Table 5.1 on page 5-2 are standard values, however, they may change due to the special characteristics
of the product:
Transformer configurations;
Input switchgear;
Compartment for dynamic braking;
Exciter compartment (for synchronous machines);
Output filters;
Input filters (AFE);
Additional inverter compartment (AFE);
Special grounding and safety systems;
Special cooling system;
Transformer
An isolating transformer is required to provide the number of secondary windings necessary to the rectifier bridge and the appropriate voltage
level. The minimum specifications of the input transformer are:
Nominal power according to the inverter power rating considering the input current harmonics.
Minimum impedance of 6 %.
Shield between primary and secondary windings.
Primary voltage according to the available line voltage.
Secondary voltages according to the motor nominal voltage and 7.2 kV voltage insulation class.
