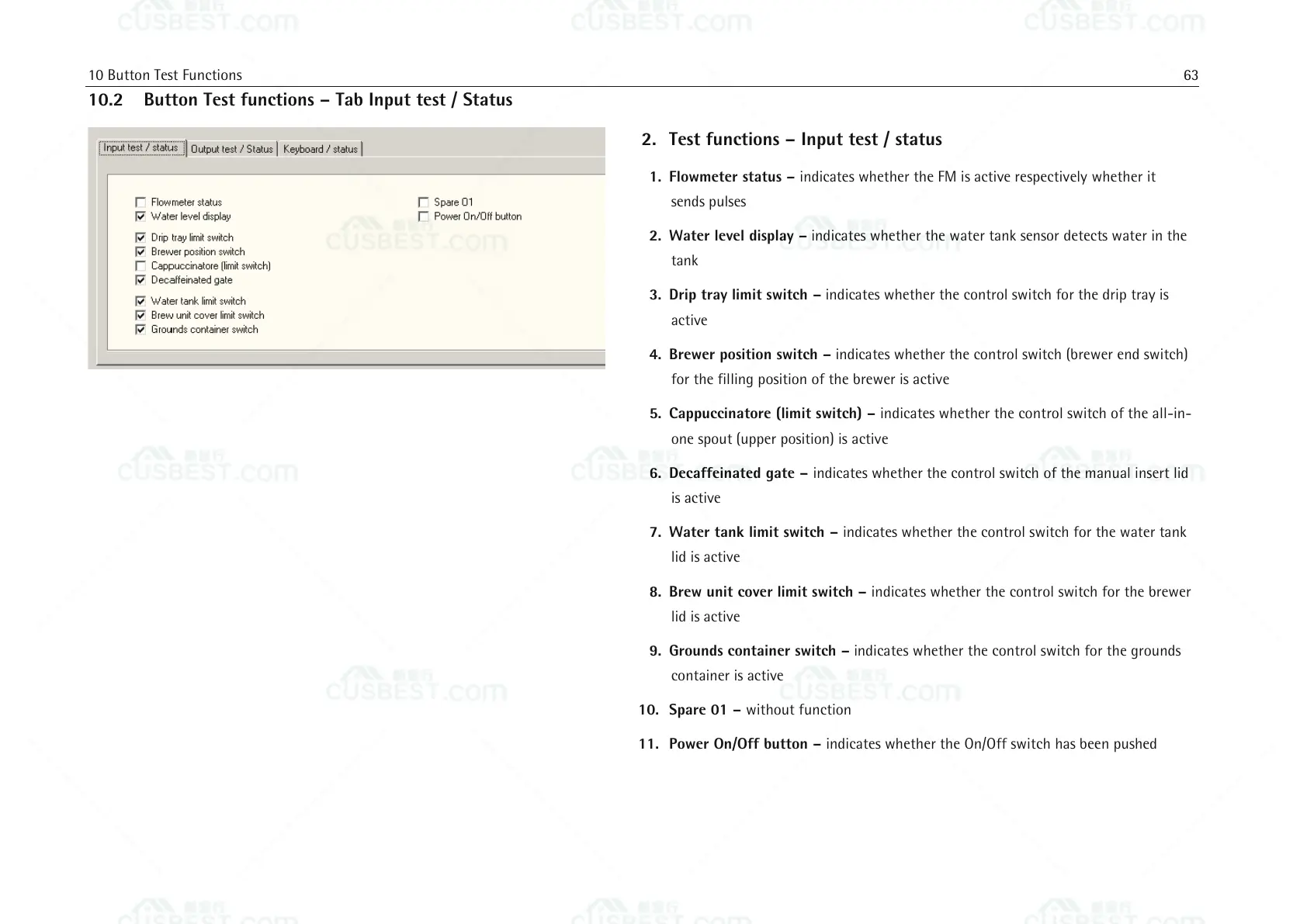

2. Test functions – Input test / status
1. Flowmeter status – indicates whether the FM is active respectively whether it
sends pulses
2. Water level display – indicates whether the water tank sensor detects water in the
tank
3. Drip tray limit switch – indicates whether the control switch for the drip tray is
active
4. Brewer position switch – indicates whether the control switch (brewer end switch)
for the filling position of the brewer is active
5. Cappuccinatore (limit switch) – indicates whether the control switch of the all-in-
one spout (upper position) is active
6. Decaffeinated gate – indicates whether the control switch of the manual insert lid
is active
7. Water tank limit switch – indicates whether the control switch for the water tank
lid is active
8. Brew unit cover limit switch – indicates whether the control switch for the brewer
lid is active
9. Grounds container switch – indicates whether the control switch for the grounds
container is active
10. Spare 01 – without function
11. Power On/Off button – indicates whether the On/Off switch has been pushed
