WMF 800 - 2;8.1.4 Controller Layout T2-44

Engin eering
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT
T2-44
Error without display message
• Beverage buttons do not react
• The display lighting does not function
Spare parts
• Front panel, complete
2/8.1.3 Controller
In addition to the inputs and outputs, the following interface is provided on the
controller:
• USB (interface for the service technician)
Outputs are generally connection to ground, while the voltage (12V or 24V) is
applies to the components (valves, motors, etc.)
Spare parts
• Programmed complete controller

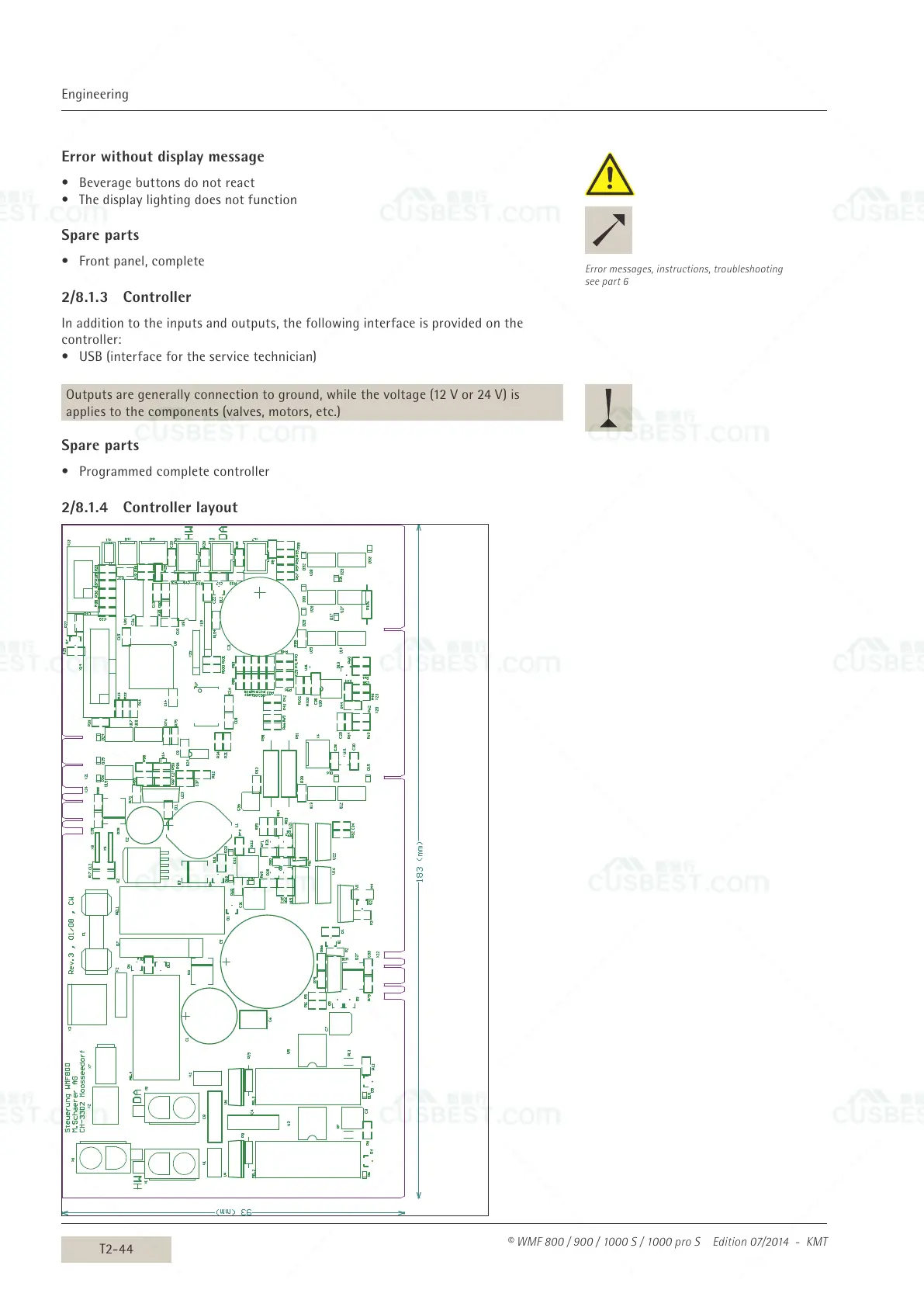

2/8.1.4 Controller layout
Error messages, instructions, troubleshooting
see part 6
