Dispensing devices and dispensing of beverages
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT
T2-37
Technician instructions
If the coffee has been dispensed in an uneven way, first the Y-piece, that distributes
the coffee to the two spouts, and the hoses need to be examined for contamination
and may have to be replaced.
If the milk foam is dispensed in an uneven way, the All-in-One spout and the steam
nozzle must be examined for contamination and, if necessary, replaced.
Spare parts
• Complete All-in-One spout
• Holder, All-in-One spout limit switch
• Milk hose assembly
• Complete milk foamer
• Y connector
• Screws
• Complete air intake cap.
• Complete air intake tube
• Ejector
• Microswitch without aroller
• Elastomer nozzle (steam nozzle)

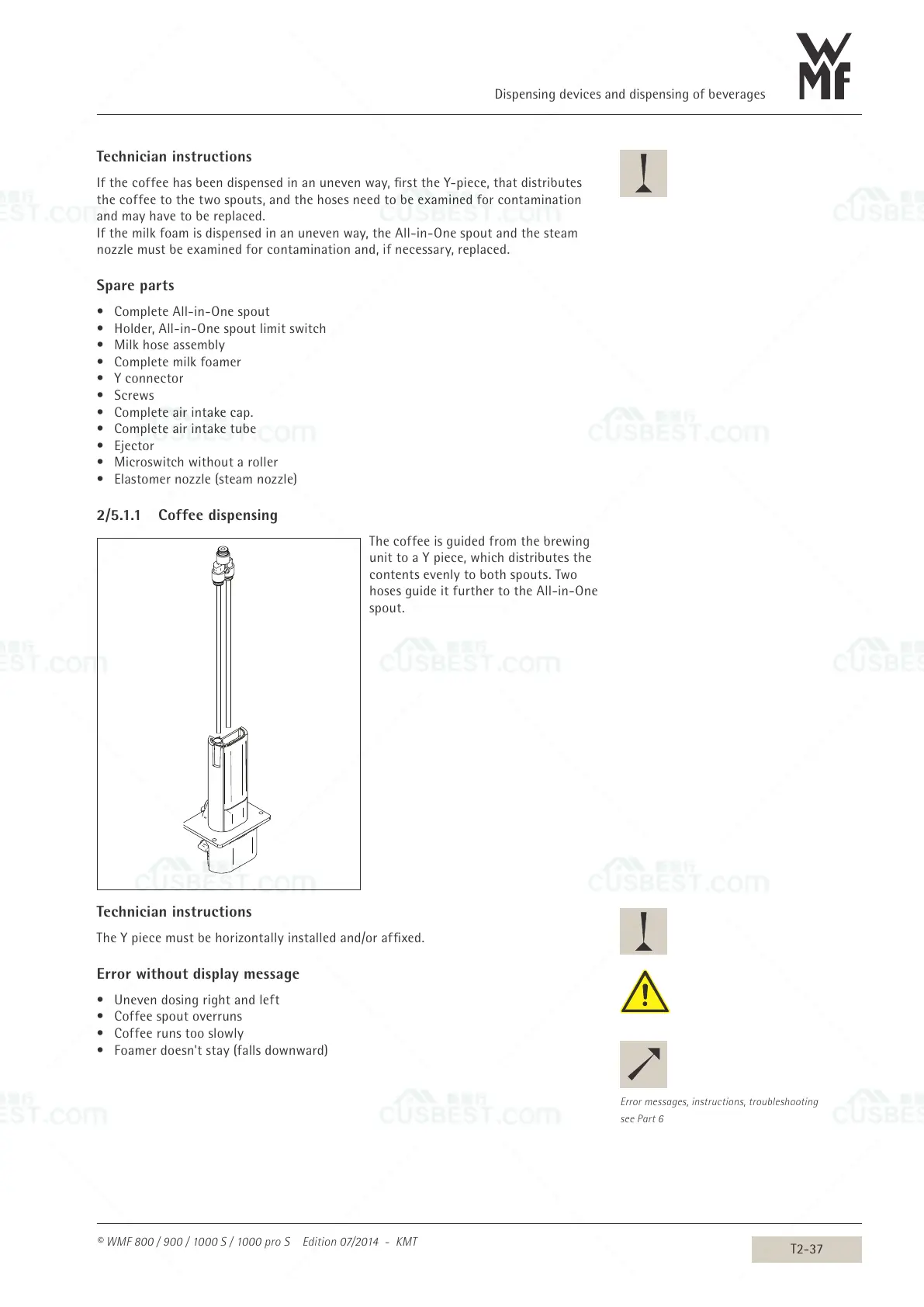

2/5.1.1 Coffee dispensing
The coffee is guided from the brewing
unit to aY piece, which distributes the
contents evenly to both spouts. Two
hoses guide it further to the All-in-One
spout.
Technician instructions
The Ypiece must be horizontally installed and/or affixed.
Error without display message
• Uneven dosing right and left
• Coffee spout overruns
• Coffee runs too slowly
• Foamer doesn't stay (falls downward)
Error messages, instructions, troubleshooting
see Part 6
