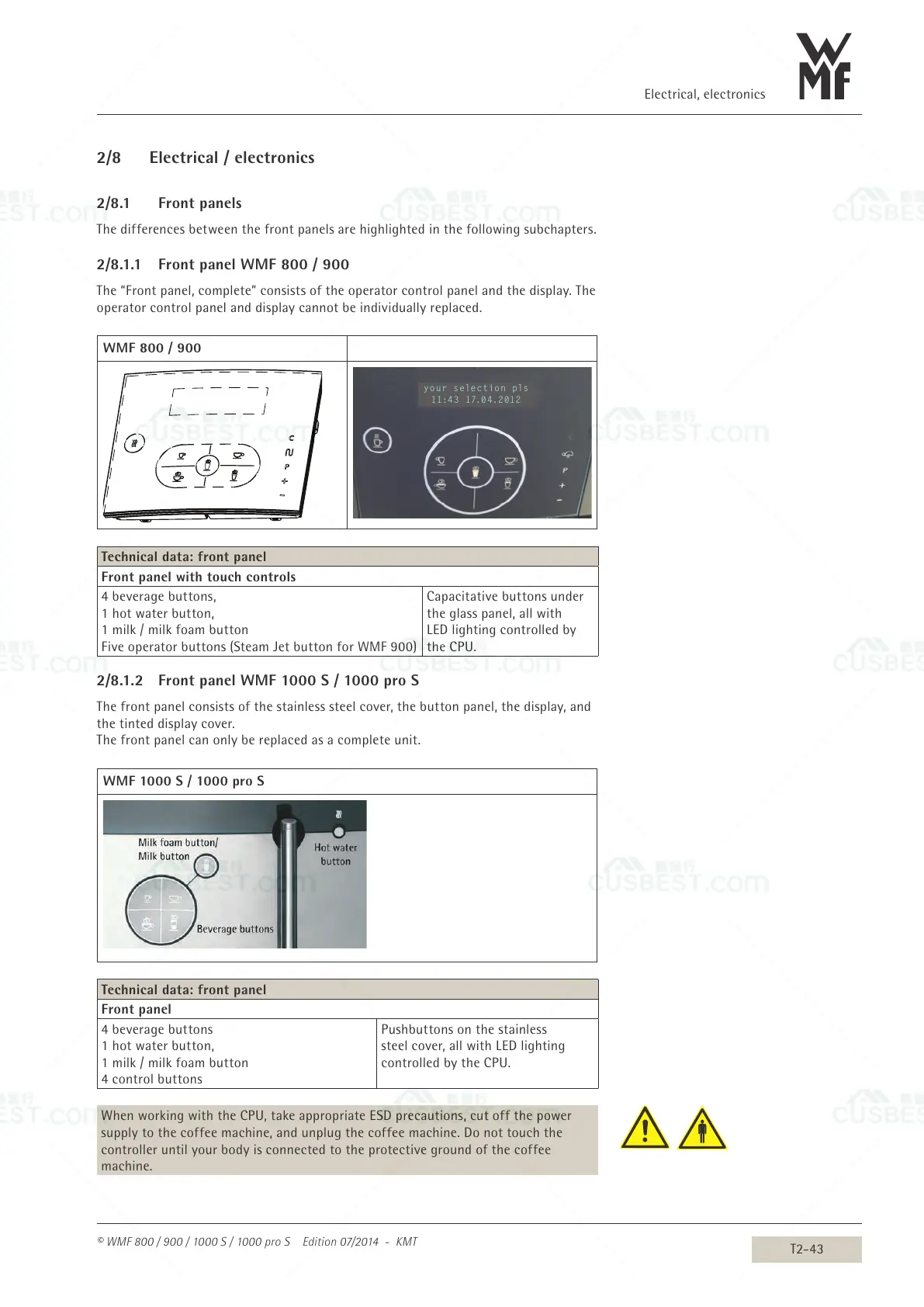

2/8 Electrical/electronics
2/8.1 Front panels
The differences between the front panels are highlighted in the following subchapters.
2/8.1.1 Front panel WMF800 / 900
The “Front panel, complete” consists of the operator control panel and the display. The
operator control panel and display cannot be individually replaced.
WMF800 / 900
Technical data: front panel
Front panel with touch controls
4beverage buttons,
1hot water button,
1milk/milk foam button
Five operator buttons (Steam Jet button forWMF900)
Capacitative buttons under
the glass panel, all with
LEDlighting controlled by
the CPU.
2/8.1.2 Front panel WMF1000S / 1000proS
The front panel consists of the stainless steel cover, the button panel, the display, and
the tinted display cover.
The front panel can only be replaced as acomplete unit.
WMF1000S / 1000proS
Technical data: front panel
Front panel
4beverage buttons
1hot water button,
1milk/milk foam button
4control buttons
Pushbuttons on the stainless
steel cover, all with LED lighting
controlled by the CPU.
When working with the CPU, take appropriate ESD precautions, cut off the power
supply to the coffee machine, and unplug the coffee machine. Do not touch the
controller until your body is connected to the protective ground of the coffee
machine.
your selection pls
1 1: 4 3 1 7.0 4. 2 0 1 2
