WMF 800 - Boiler Water System Overview

Engin eering
T2-6
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT

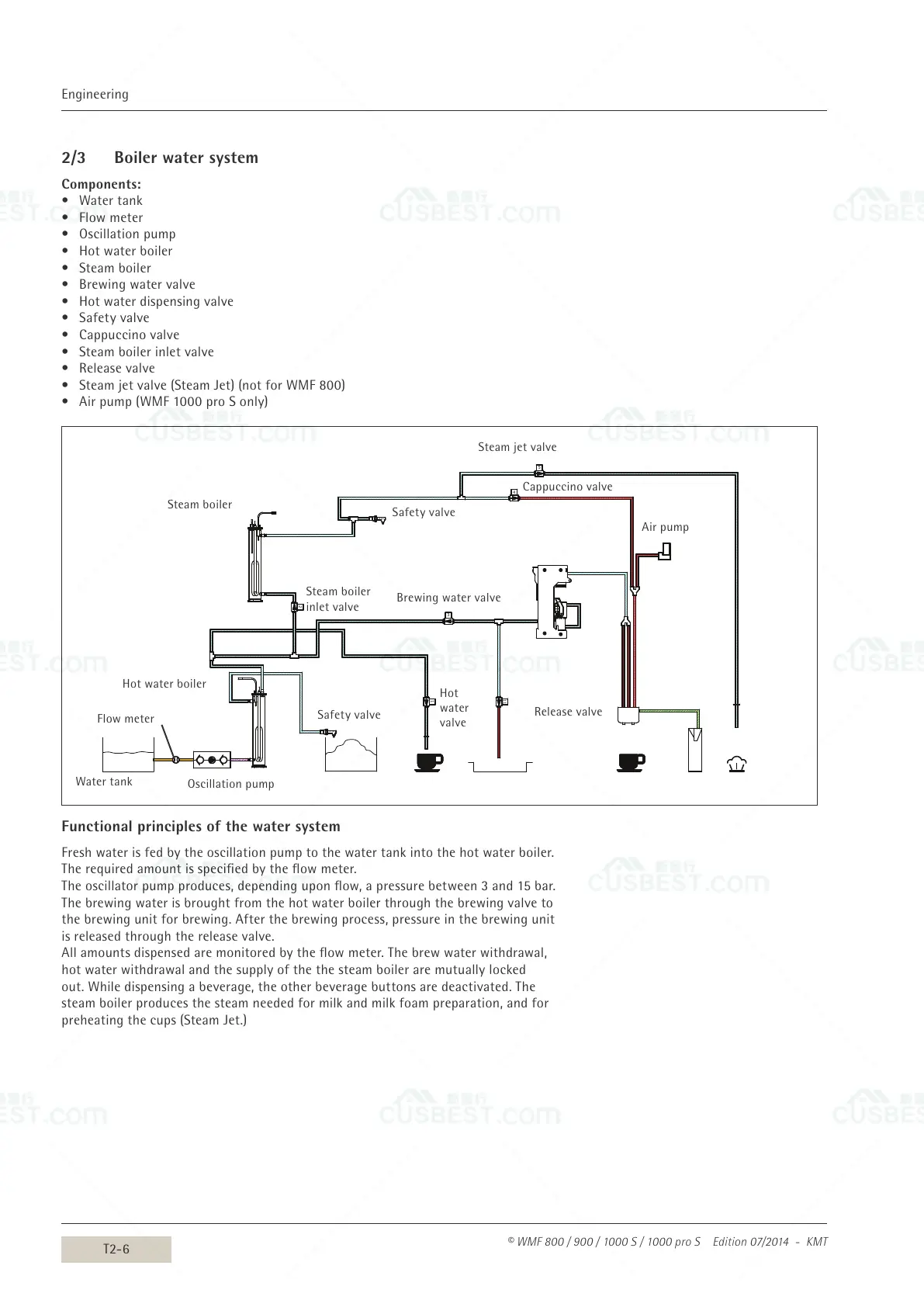

2/3 Boiler water system
Components:
• Watertank
• Flowmeter
• Oscillationpump
• Hotwaterboiler
• Steamboiler
• Brewingwatervalve
• Hotwaterdispensingvalve
• Safetyvalve
• Cappuccinovalve
• Steamboilerinletvalve
• Releasevalve
• Steamjetvalve(SteamJet)(notforWMF800)
• Airpump(WMF1000proSonly)
16 bar
16 bar
4
3
2
11
1
5
Functional principles of the water system
Freshwaterisfedbytheoscillationpumptothewatertankintothehotwaterboiler.
Therequiredamountisspeciedbytheowmeter.
Theoscillatorpumpproduces,dependinguponow,apressurebetween3and15bar.
Thebrewingwaterisbroughtfromthehotwaterboilerthroughthebrewingvalveto
thebrewingunitforbrewing.Afterthebrewingprocess,pressureinthebrewingunit
isreleasedthroughthereleasevalve.
Allamountsdispensedaremonitoredbytheowmeter.Thebrewwaterwithdrawal,
hotwaterwithdrawalandthesupplyofthethesteamboileraremutuallylocked
out.Whiledispensingabeverage,theotherbeveragebuttonsaredeactivated.The
steamboilerproducesthesteamneededformilkandmilkfoampreparation,andfor
preheatingthecups(SteamJet.)
Steamboiler
Hotwaterboiler
Watertank
Oscillationpump
Flowmeter
Steamboiler
inletvalve
Safetyvalve
Steamjetvalve
Cappuccinovalve
Brewingwatervalve
Releasevalve
Safetyvalve
Hot
water
valve
Airpump
