WMF 800 - 1;2 Technical Information WMF 1000 S; 1000 Pro S T1-4

General information
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT
T1-4

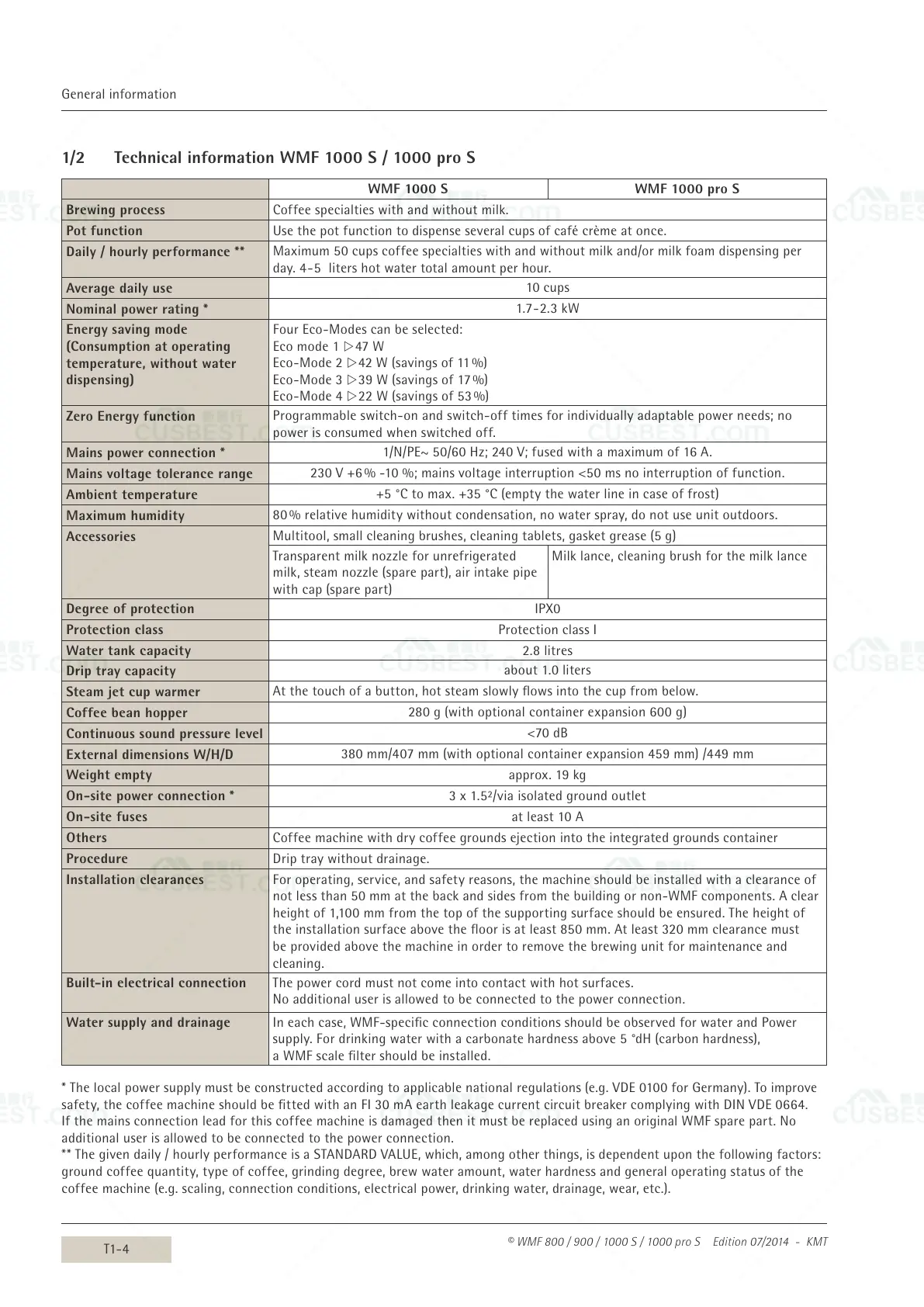

1/2 Technical information WMF1000S / 1000proS
WMF1000S WMF1000proS
Brewing process
Coffeespecialtieswithandwithoutmilk.
Pot function
Usethepotfunctiontodispenseseveralcupsofcafécrèmeatonce.
Daily/hourly performance**
Maximum50cupscoffeespecialtieswithandwithoutmilkand/ormilkfoamdispensingper
day.4-5litershotwatertotalamountperhour.
Average daily use
10cups
Nominal power rating *
1.7-2.3kW
Energy saving mode
(Consumption at operating
temperature, without water
dispensing)
FourEco-Modescanbeselected:
Ecomode1
w47W
Eco-Mode2w42W(savingsof11%)
Eco-Mode3
w39W(savingsof17%)
Eco-Mode4
w22W(savingsof53%)
Zero Energy function
Programmableswitch-onandswitch-offtimesforindividuallyadaptablepowerneeds;no
powerisconsumedwhenswitchedoff.
Mains power connection *
1/N/PE~50/60Hz;240V;fusedwithamaximumof16A.
Mains voltage tolerance range
230V+6%-10%;mainsvoltageinterruption<50msnointerruptionoffunction.
Ambient temperature
+5°Ctomax.+35°C(emptythewaterlineincaseoffrost)
Maximum humidity
80%relativehumiditywithoutcondensation,nowaterspray,donotuseunitoutdoors.
Accessories
Multitool,smallcleaningbrushes,cleaningtablets,gasketgrease(5g)
Transparentmilknozzleforunrefrigerated
milk,steamnozzle(sparepart),airintakepipe
withcap(sparepart)
Milklance,cleaningbrushforthemilklance
Degree of protection
IPX0
Protection class
ProtectionclassI
Water tank capacity
2.8litres
Drip tray capacity
about1.0liters
Steam jet cup warmer
Atthetouchofabutton,hotsteamslowlyowsintothecupfrombelow.
Coffee bean hopper
280g(withoptionalcontainerexpansion600g)
Continuous sound pressure level
<70dB
External dimensions W/H/D
380mm/407mm(withoptionalcontainerexpansion459mm)/449mm
Weight empty
approx.19kg
On-site power connection*
3x1.5²/viaisolatedgroundoutlet
On-site fuses
atleast10A
Others
Coffeemachinewithdrycoffeegroundsejectionintotheintegratedgroundscontainer
Procedure
Driptraywithoutdrainage.
Installation clearances
Foroperating,service,andsafetyreasons,themachineshouldbeinstalledwithaclearanceof
notlessthan50mmatthebackandsidesfromthebuildingornon-WMFcomponents.Aclear
heightof1,100mmfromthetopofthesupportingsurfaceshouldbeensured.Theheightof
theinstallationsurfaceabovetheoorisatleast850mm.Atleast320mmclearancemust
beprovidedabovethemachineinordertoremovethebrewingunitformaintenanceand
cleaning.
Built-in electrical connection
Thepowercordmustnotcomeintocontactwithhotsurfaces.
Noadditionaluserisallowedtobeconnectedtothepowerconnection.
Water supply and drainage
Ineachcase,WMF-specicconnectionconditionsshouldbeobservedforwaterandPower
supply.Fordrinkingwaterwithacarbonatehardnessabove5°dH(carbonhardness),
aWMFscaleltershouldbeinstalled.
*Thelocalpowersupplymustbeconstructedaccordingtoapplicablenationalregulations(e.g.VDE0100forGermany).Toimprove
safety,thecoffeemachineshouldbettedwithanFI30mAearthleakagecurrentcircuitbreakercomplyingwithDINVDE0664.
IfthemainsconnectionleadforthiscoffeemachineisdamagedthenitmustbereplacedusinganoriginalWMFsparepart.No
additionaluserisallowedtobeconnectedtothepowerconnection.
**Thegivendaily/hourlyperformanceisaSTANDARDVALUE,which,amongotherthings,isdependentuponthefollowingfactors:
groundcoffeequantity,typeofcoffee,grindingdegree,brewwateramount,waterhardnessandgeneraloperatingstatusofthe
coffeemachine(e.g.scaling,connectionconditions,electricalpower,drinkingwater,drainage,wear,etc.).
