Boiler water system
T2-11
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT

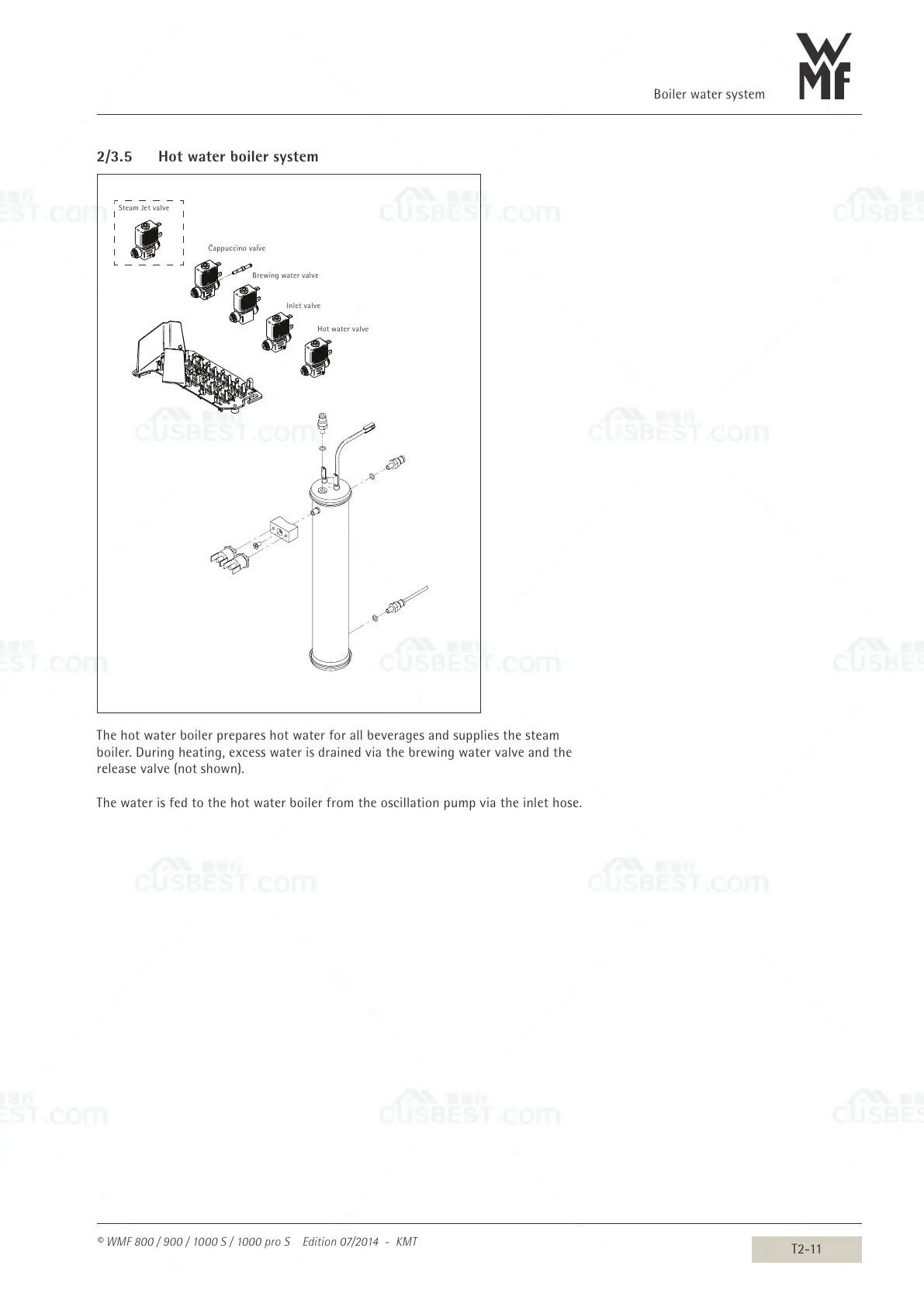

2/3.5 Hot water boiler system
Zulaufventil
Heißwasserventil
Cappuccinoventil
Brühwasserventil
Steam-Jet Ventil
Thehotwaterboilerprepareshotwaterforallbeveragesandsuppliesthesteam
boiler.Duringheating,excesswaterisdrainedviathebrewingwatervalveandthe
releasevalve(notshown).
Thewaterisfedtothehotwaterboilerfromtheoscillationpumpviatheinlethose.
Hotwatervalve
Inletvalve
Brewingwatervalve
Cappuccinovalve
SteamJetvalve
