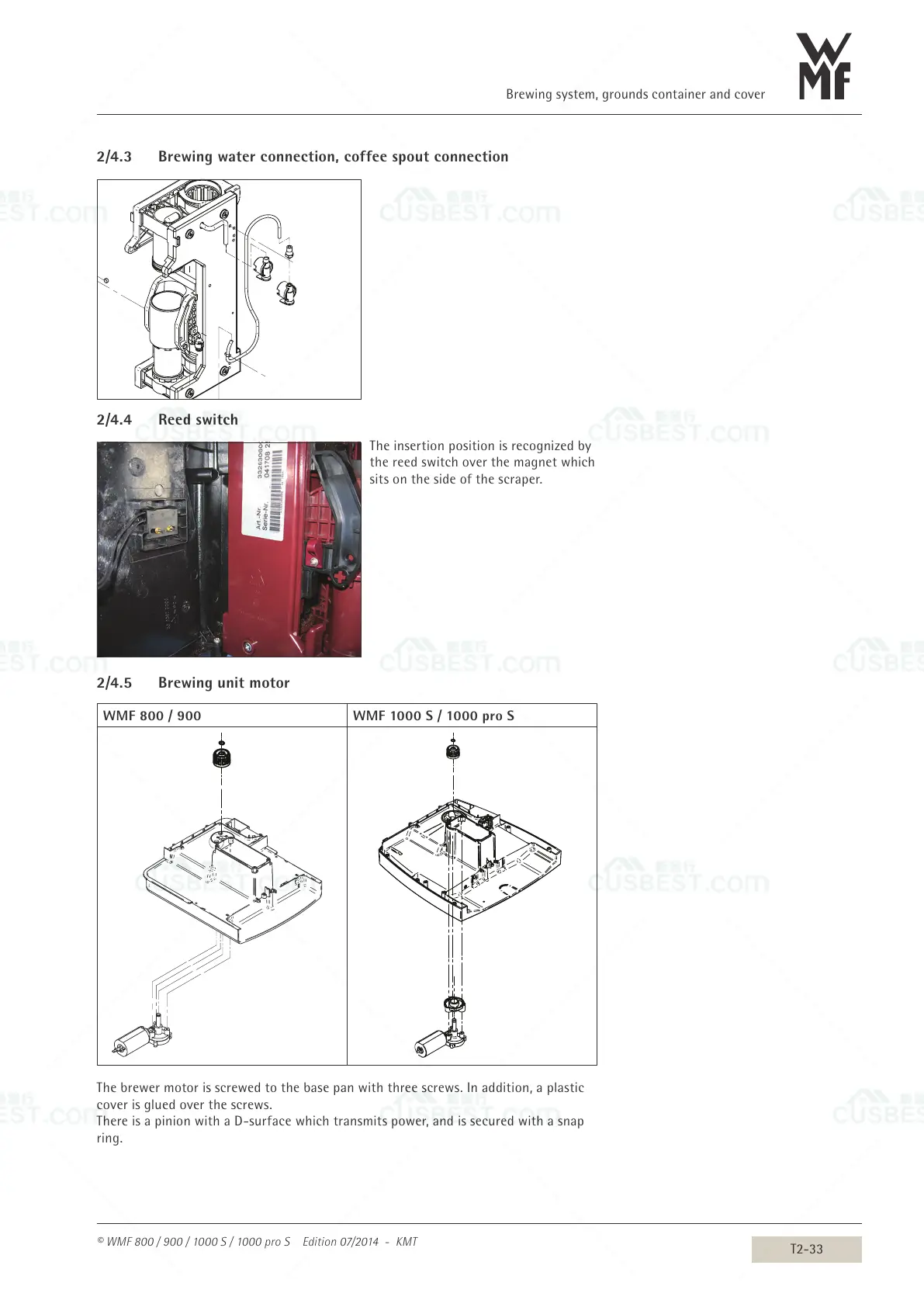

WMF 800 - Brewing Water Connection, Coffee Spout Connection; Reed Switch; Brewing Unit Motor

Brewing system, grounds container and cover
T2-33
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT
2/4.3 Brewing water connection, coffee spout connection
2/4.4 Reed switch
The insertion position is recognized by
the reed switch over the magnet which
sits on the side of the scraper.
2/4.5 Brewing unit motor
WMF800 / 900 WMF1000S / 1000proS
The brewer motor is screwed to the base pan with three screws. In addition, aplastic
cover is glued over the screws.
There is apinion with aD-surface which transmits power, and is secured with asnap
ring.
