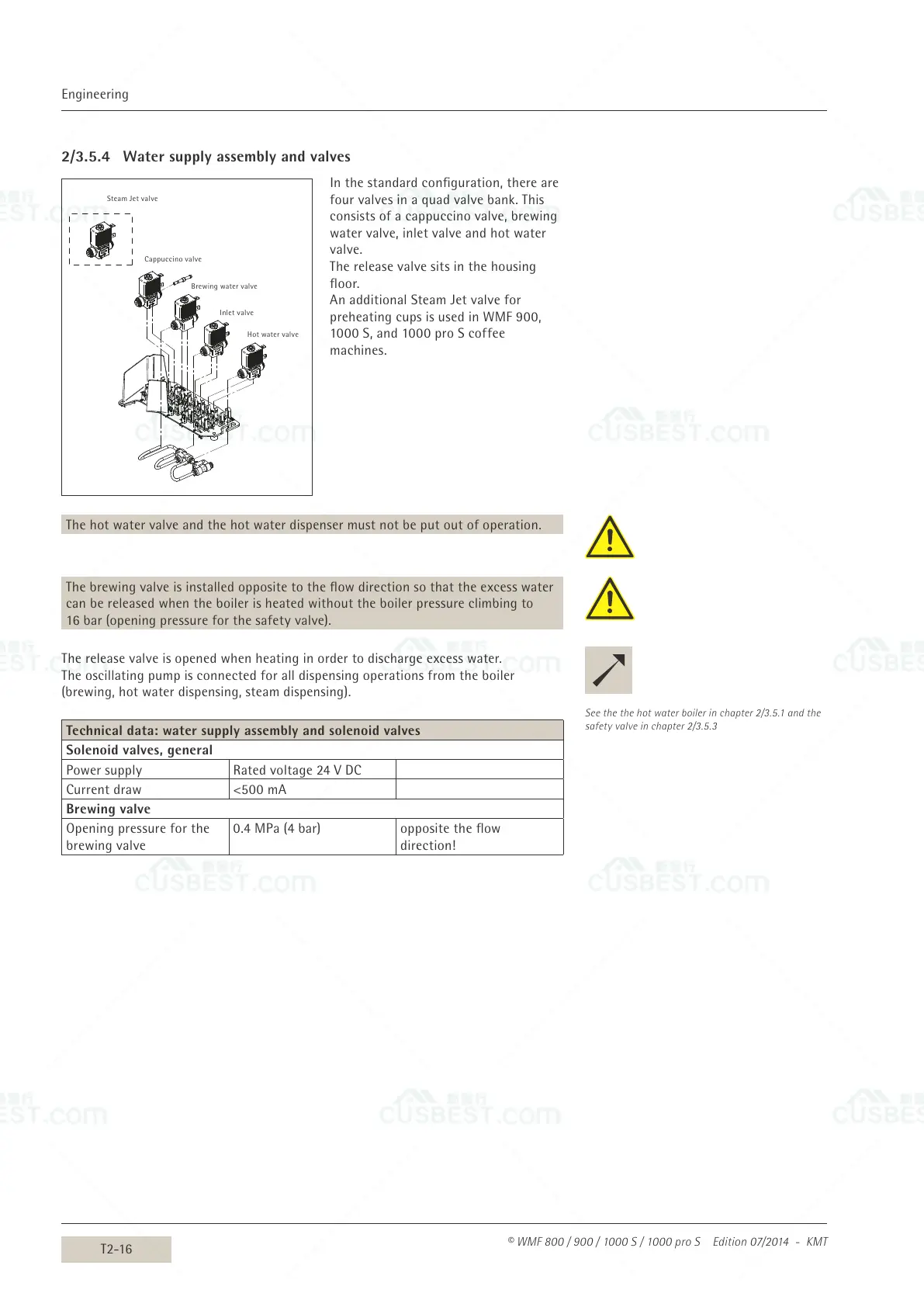

2/3.5.4 Water supply assembly and valves
Cappuccinoventil
Brühwasserventil
Zulaufventil
Heißwasserventil
Steam-Jet Ventil
Inthestandardconguration,thereare
fourvalvesinaquadvalvebank.This
consistsofacappuccinovalve,brewing
watervalve,inletvalveandhotwater
valve.
Thereleasevalvesitsinthehousing
oor.
AnadditionalSteamJetvalvefor
preheatingcupsisusedinWMF900,
1000S,and1000proScoffee
machines.
Thehotwatervalveandthehotwaterdispensermustnotbeputoutofoperation.
Thebrewingvalveisinstalledoppositetotheowdirectionsothattheexcesswater
canbereleasedwhentheboilerisheatedwithouttheboilerpressureclimbingto
16bar(openingpressureforthesafetyvalve).
Thereleasevalveisopenedwhenheatinginordertodischargeexcesswater.
Theoscillatingpumpisconnectedforalldispensingoperationsfromtheboiler
(brewing,hotwaterdispensing,steamdispensing).
Technical data: water supply assembly and solenoid valves
Solenoid valves, general
Powersupply Ratedvoltage24VDC
Currentdraw <500mA
Brewing valve
Openingpressureforthe
brewingvalve
0.4MPa(4bar) oppositetheow
direction!
See the the hot water boiler in chapter 2/3.5.1and the
safety valve in chapter 2/3.5.3
Hotwatervalve
Inletvalve
Brewingwatervalve
Cappuccinovalve
SteamJetvalve
