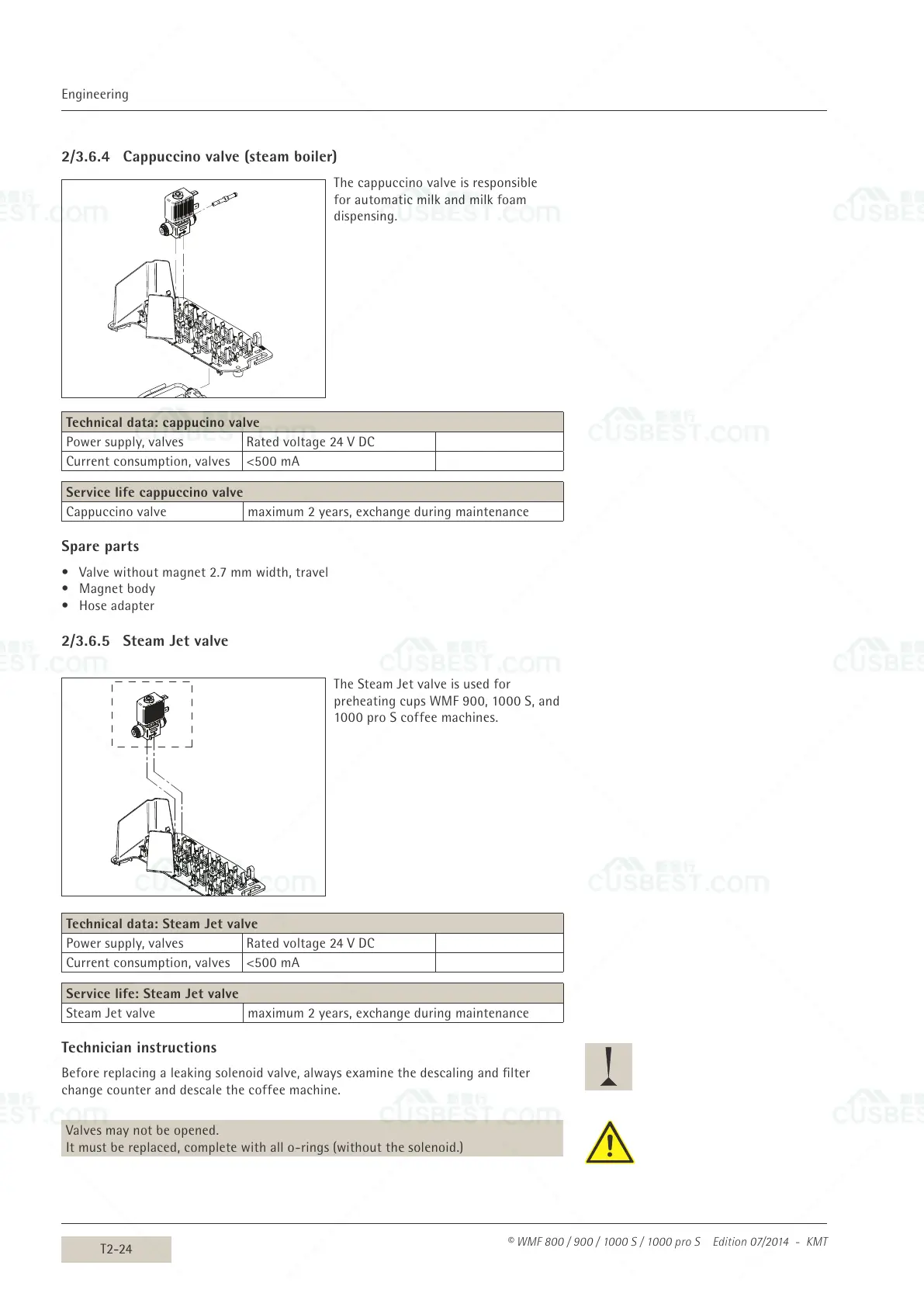

2/3.6.4 Cappuccino valve (steam boiler)
Thecappuccinovalveisresponsible
forautomaticmilkandmilkfoam
dispensing.
Technical data: cappucino valve
Powersupply,valves Ratedvoltage24VDC
Currentconsumption,valves <500mA
Service life cappuccino valve
Cappuccinovalve maximum2years,exchangeduringmaintenance
Spare parts
• Valvewithoutmagnet2.7mmwidth,travel
• Magnetbody
• Hoseadapter
2/3.6.5 Steam Jet valve
TheSteamJetvalveisusedfor
preheatingcupsWMF900,1000S,and
1000proScoffeemachines.
Technical data: Steam Jet valve
Powersupply,valves Ratedvoltage24VDC
Currentconsumption,valves <500mA
Service life: Steam Jet valve
SteamJetvalve maximum2years,exchangeduringmaintenance
Technician instructions
Beforereplacingaleakingsolenoidvalve,alwaysexaminethedescalingandlter
changecounteranddescalethecoffeemachine.
Valvesmaynotbeopened.
Itmustbereplaced,completewithallo-rings(withoutthesolenoid.)
