Engin eering
T2-34
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT

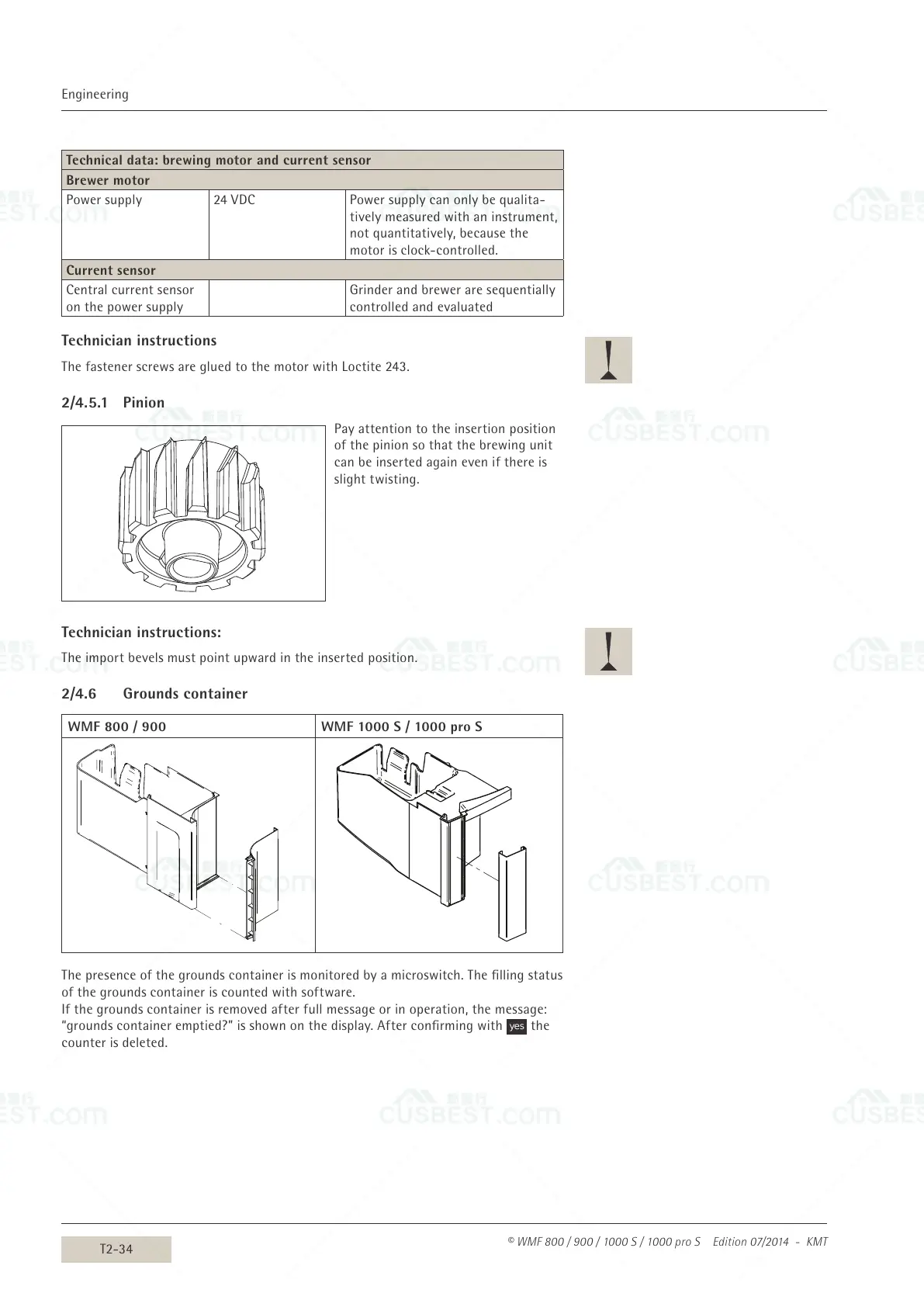

Technical data: brewing motor and current sensor
Brewer motor
Power supply 24VDC Power supply can only be qualita-
tively measured with an instrument,
not quantitatively, because the
motor is clock-controlled.
Current sensor
Central current sensor
on the power supply
Grinder and brewer are sequentially
controlled and evaluated
Technician instructions
The fastener screws are glued to the motor with Loctite 243.
2/4.5.1 Pinion
Pay attention to the insertion position
of the pinion so that the brewing unit
can be inserted again even if there is
slight twisting.
Technician instructions:
The import bevels must point upward in the inserted position.
2/4.6 Grounds container
WMF800 / 900 WMF1000S / 1000proS
The presence of the grounds container is monitored by amicroswitch. The filling status
of the grounds container is counted with software.
If the grounds container is removed after full message or in operation, the message:
“grounds container emptied?” is shown on the display. After confirming with
yes
the
counter is deleted.
