Boiler water system
T2-19
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT

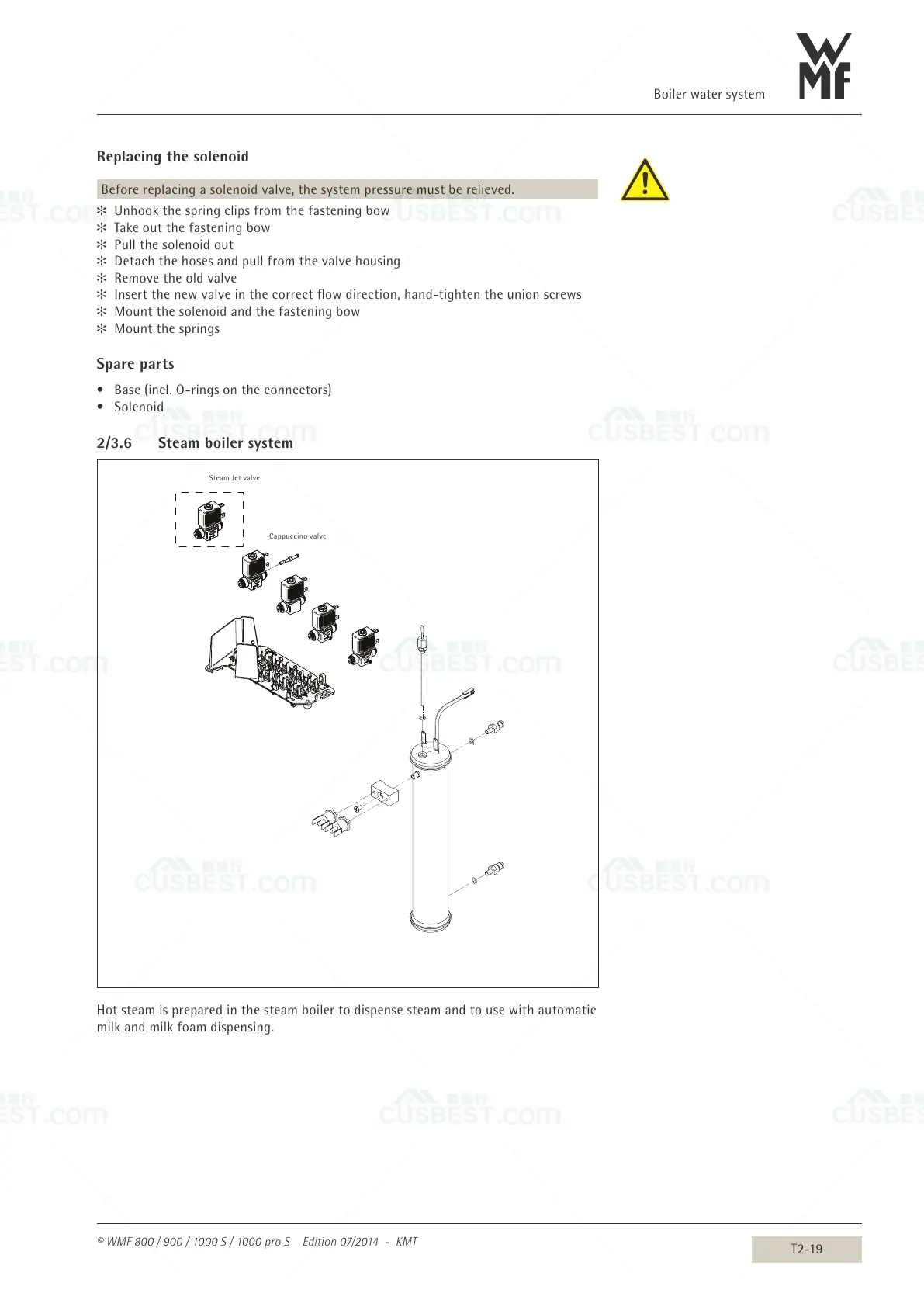

Replacing the solenoid
Beforereplacingasolenoidvalve,thesystempressuremustberelieved.
 Unhookthespringclipsfromthefasteningbow
 Takeoutthefasteningbow
 Pullthesolenoidout
 Detachthehosesandpullfromthevalvehousing
 Removetheoldvalve
 Insertthenewvalveinthecorrectowdirection,hand-tightentheunionscrews
 Mountthesolenoidandthefasteningbow
 Mountthesprings
Spare parts
• Base(incl.O-ringsontheconnectors)
• Solenoid
2/3.6 Steam boiler system
Cappuccinoventil
Steam-Jet Ventil
Hotsteamispreparedinthesteamboilertodispensesteamandtousewithautomatic
milkandmilkfoamdispensing.
Cappuccinovalve
SteamJetvalve
