Electrical, electronics
© WMF800 / 900 / 1000S / 1000proS Edition 07/2014 - KMT
T2-45

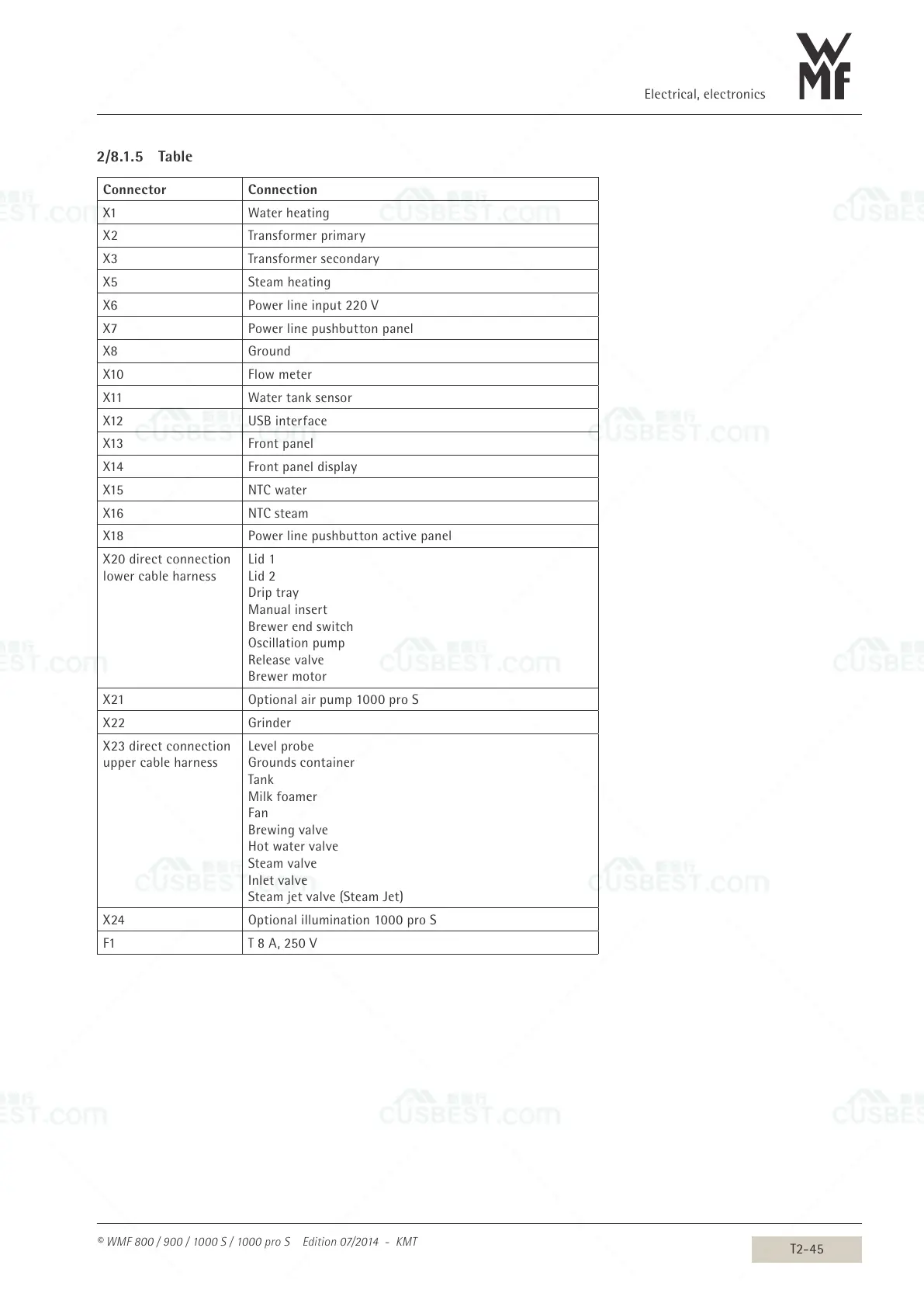

2/8.1.5 Table
Connector Connection
X1 Water heating
X2 Transformer primary
X3 Transformer secondary
X5 Steam heating
X6 Power line input 220V
X7 Power line pushbutton panel
X8 Ground
X10 Flow meter
X11 Water tank sensor
X12 USB interface
X13 Front panel
X14 Front panel display
X15 NTC water
X16 NTC steam
X18 Power line pushbutton active panel
X20direct connection
lower cable harness
Lid 1
Lid 2
Drip tray
Manual insert
Brewer end switch
Oscillation pump
Release valve
Brewer motor
X21 Optional air pump 1000proS
X22 Grinder
X23direct connection
upper cable harness
Level probe
Grounds container
Tank
Milk foamer
Fan
Brewing valve
Hot water valve
Steam valve
Inlet valve
Steam jet valve (Steam Jet)
X24 Optional illumination 1000proS
F1 T 8A, 250V
