Phaser 3300MFP Service Manual 8-13
Service Parts Disassembly

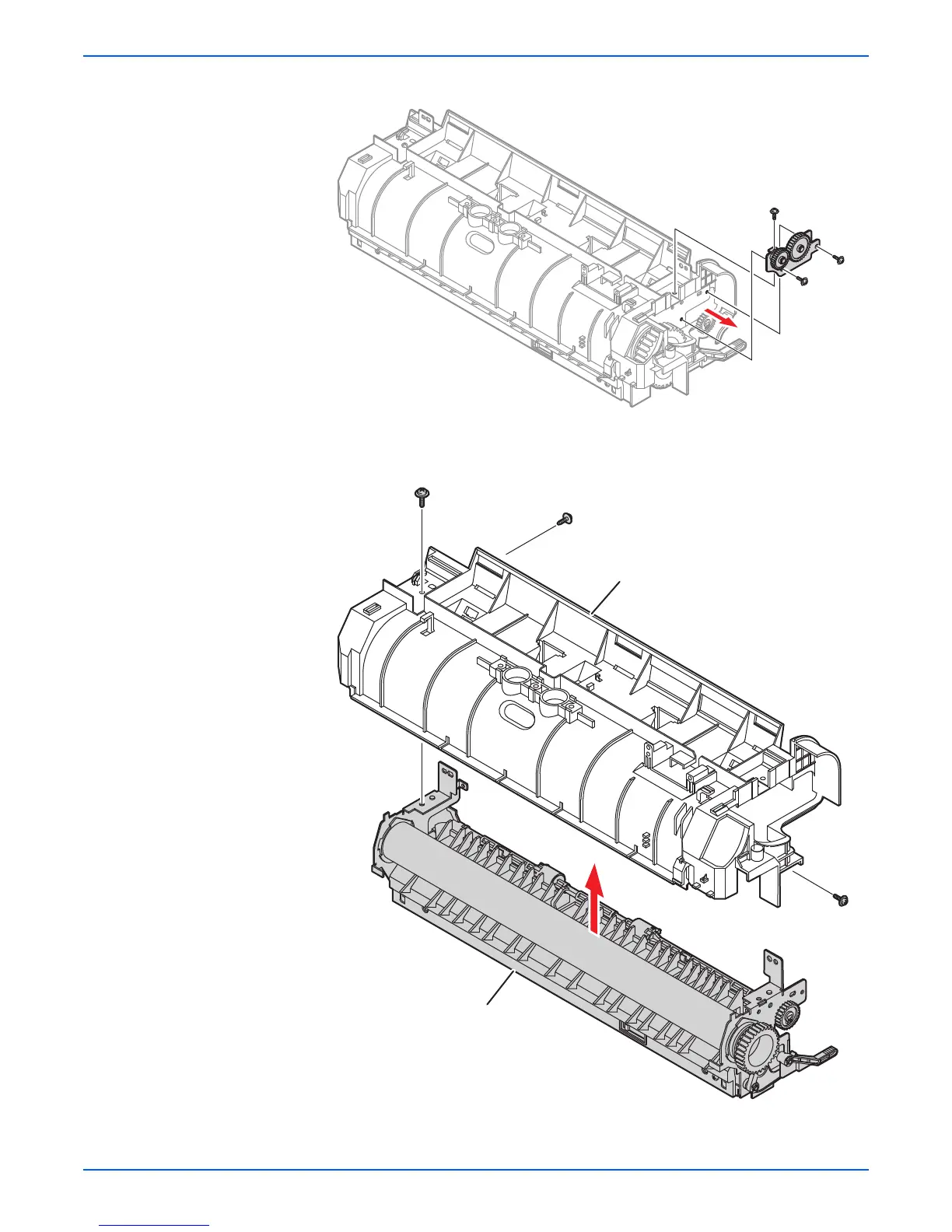

7. Remove three machine screws, then the Idle Gear Bracket.
8. Remove the three screws (two machine screws and one tapping screw
with washer and lock washer), then release the Fuser Cover from the
Fuser Frame.
s3300mfp-021
s3300mfp-022
Fuser Frame
Fuser Cover
To Next Page
