Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-7

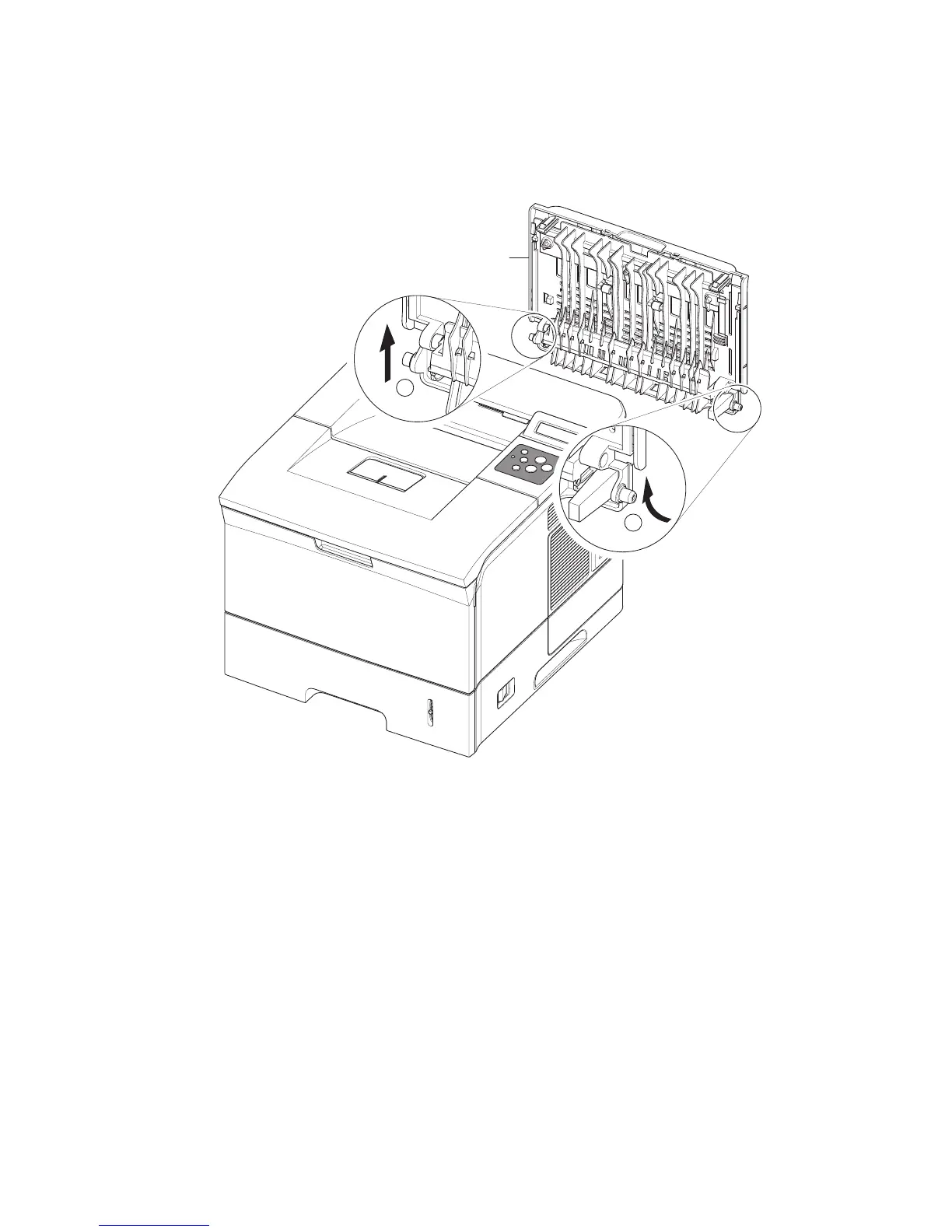

3. To release the 2 posts securing the Rear Cover; Lift up on the left (printer left) hinge pin,
then slide the Rear Cover to the left to free the right hinge pin and remove the Rear Cover
from the printer.
2
1
Rear Cover
s3500-082
