Xerox Phaser 3500 - PTL Board

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-23
PTL Board
1. Remove:
■ Covers on page 4-4
■ Left Cover on page 4-5
■ Top Cover on page 4-8
■ Registration Assembly on page 4-21
2. Disconnect the wiring harness.

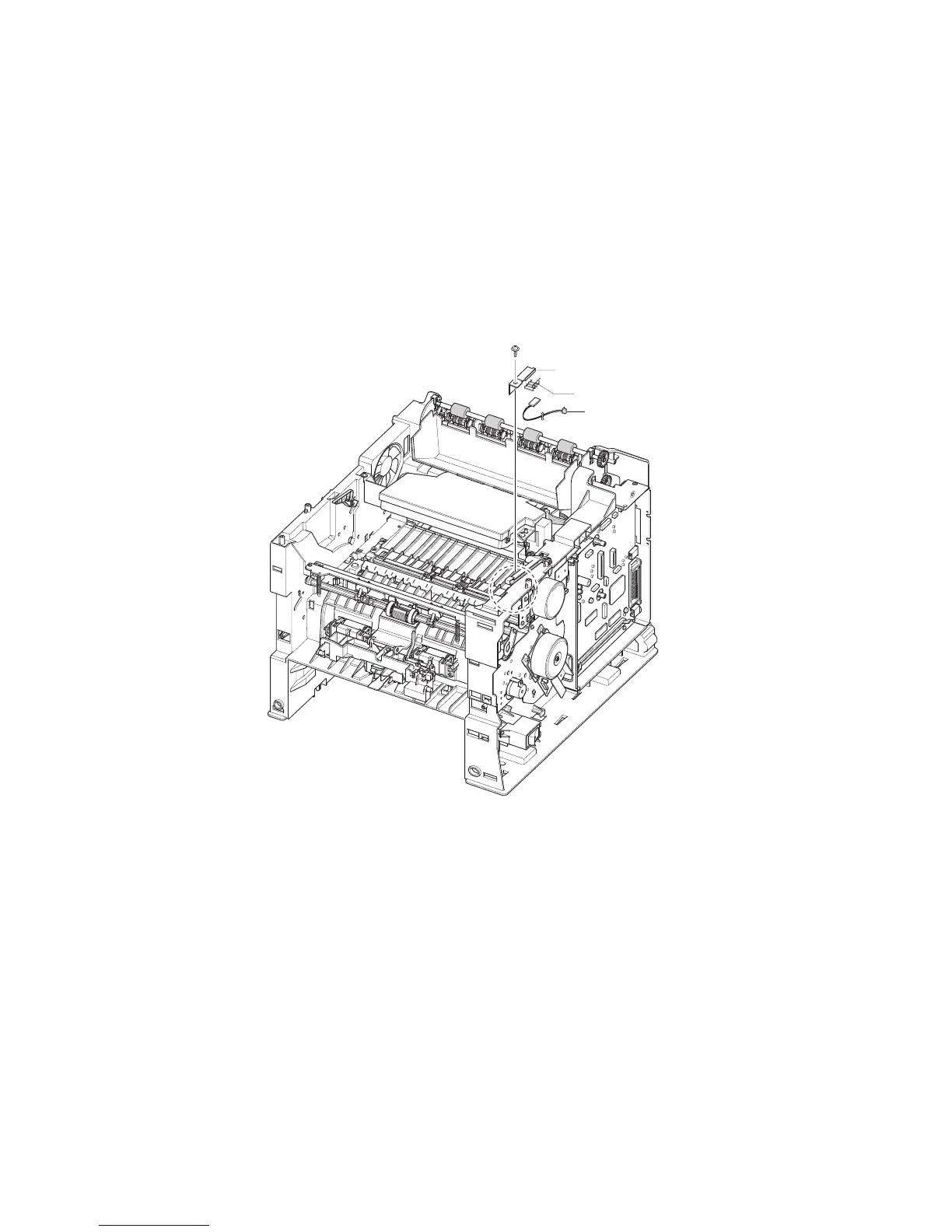

3. Remove 1 screw and take out the PTL board.
PTL Upper
Terminal
PTL PBA
s3500-117
