Xerox Phaser 3500 Service Manual

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-48
Power Supply and Shield
1. Remove:
■ Print Cartridge
■ Tray 2 and Tray 3 (if installed)
■ Covers on page 4-4
■ Rear Cover on page 4-6
■ Fuser Assembly on page 4-37
2. Turn the printer onto it’s left side.
3. Remove the rear crossbar secured by 2 screws.
4. Remove the Tray 2 no paper actuator for better access.

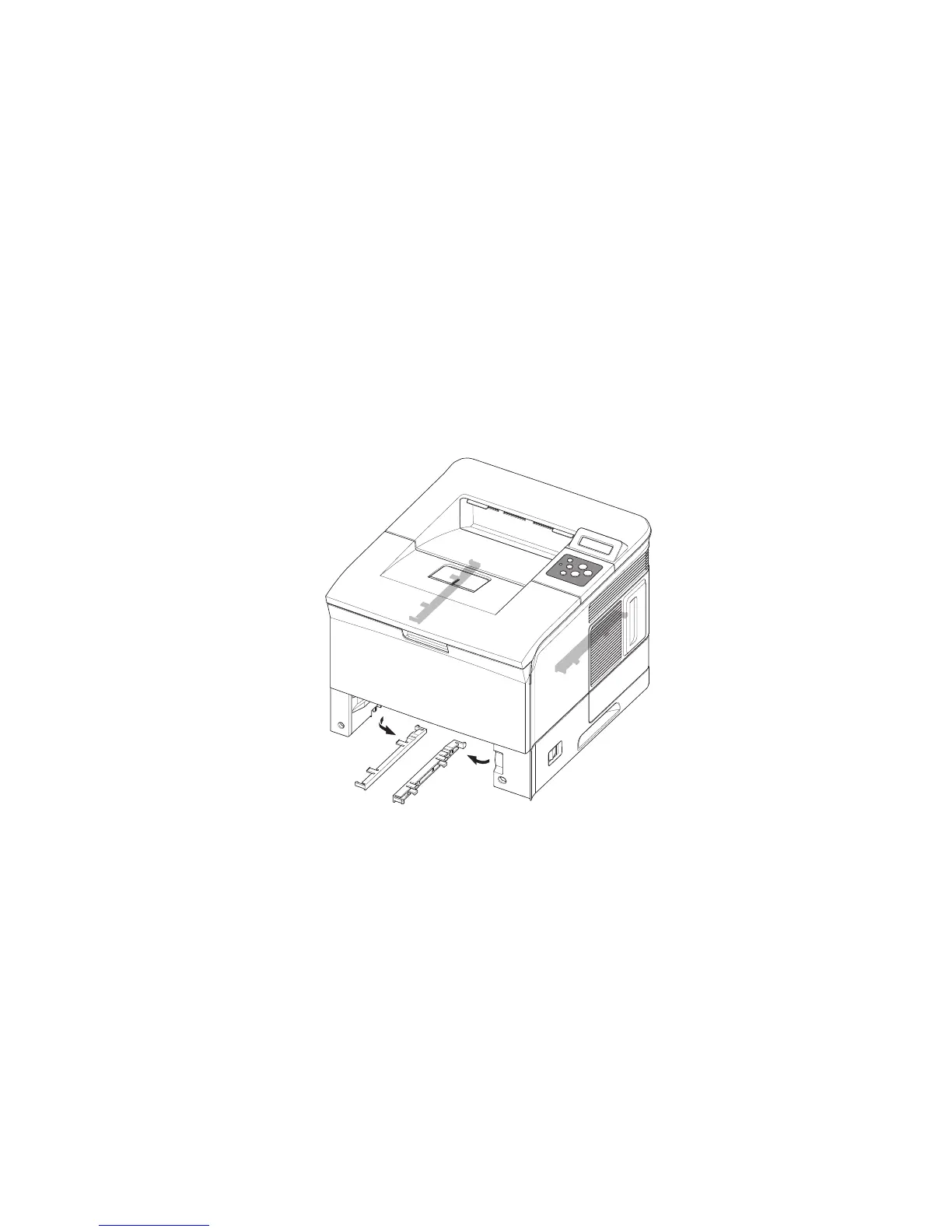

5. Remove the left and right duplex unit guides.
Guide-Duplex L
Guide-Duplex R
s3500-136
