Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-34
Connector Board
1. Remove:
■ Covers on page 4-4
2. Disconnect all connectors to the connector board.
3. Remove 1 screw securing the board to the chassis.
4. Remove the connector board.

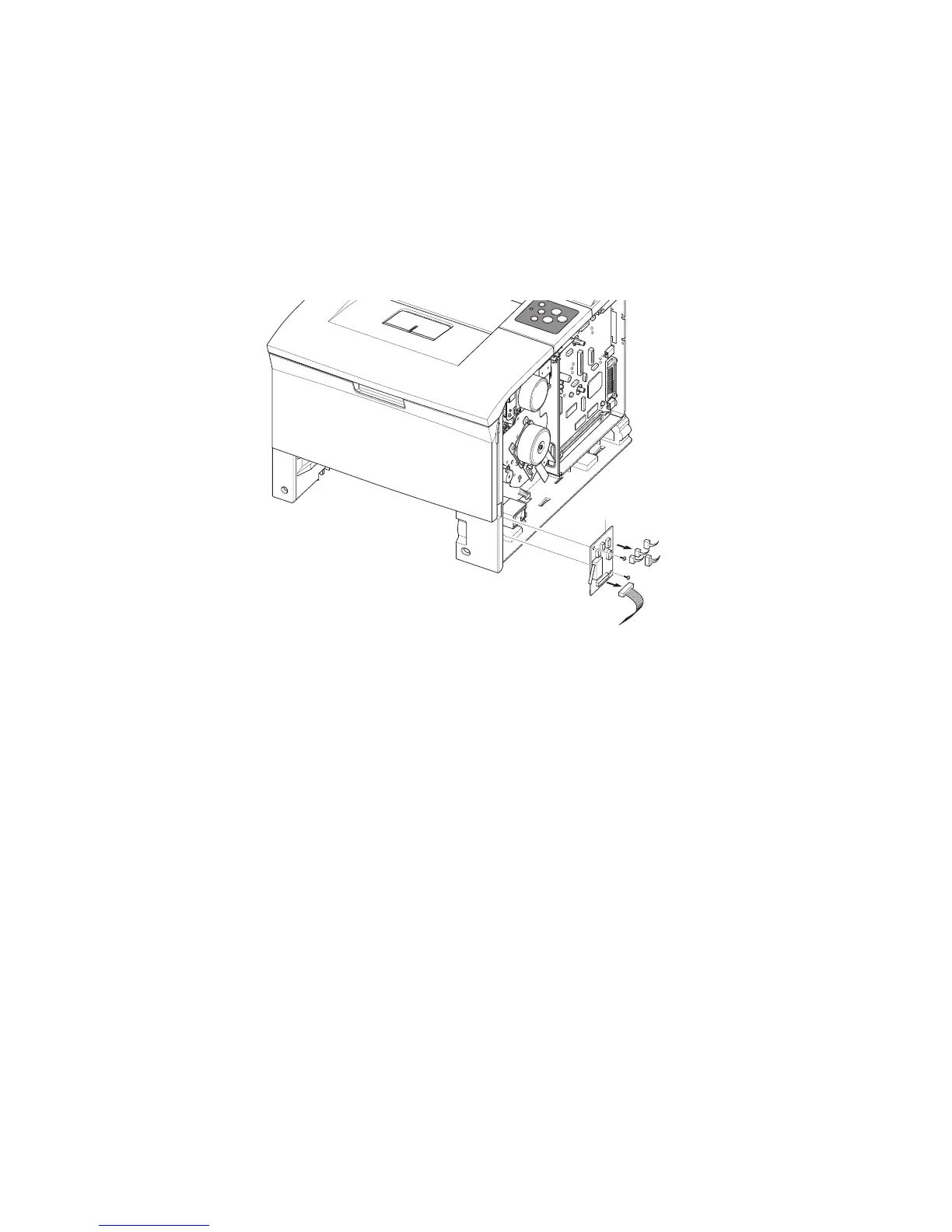

Connector
PBA
s3500-076
