Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-17
Transfer Roller
Caution: Do not touch the surface of the Transfer Roller.
1. Open the Top Cover.
2. Remove the Print Cartridge and protect it from exposure to light.
3. Remove the cap from the left side of the Transfer Roller.
4. Pinch the bearing clips on both ends of the Transfer Roller.
Note: The gear on the left end of the Transfer Roller shaft is not secured in place. Hold
the gear when removing the roller to prevent it from falling into the printer.
Note: The 2 bearing clips are not interchangeable, and the levers face the rear of the
printer. The clip with the ground contact goes on the gear side of the Transfer Roller.
5. Slide the roller slightly to the right so the end of the shaft clears the lip on the printer case
and lift the Transfer Roller, together with the Bearing Clips and the Transfer Roller Gear,
out of the printer.

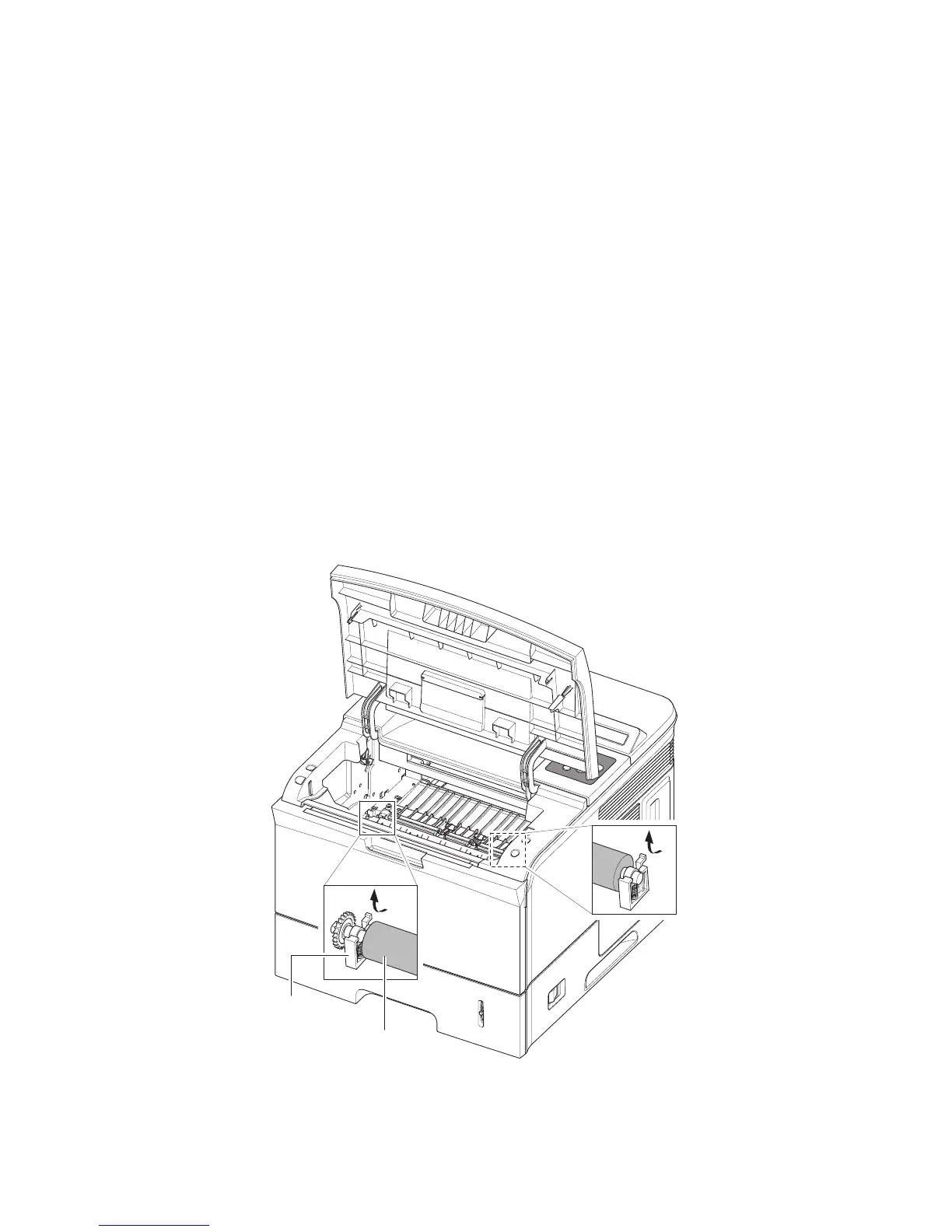

Transfer Roller
Holder
s3500-057
