Xerox Phaser 3500 Service Manual

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-10

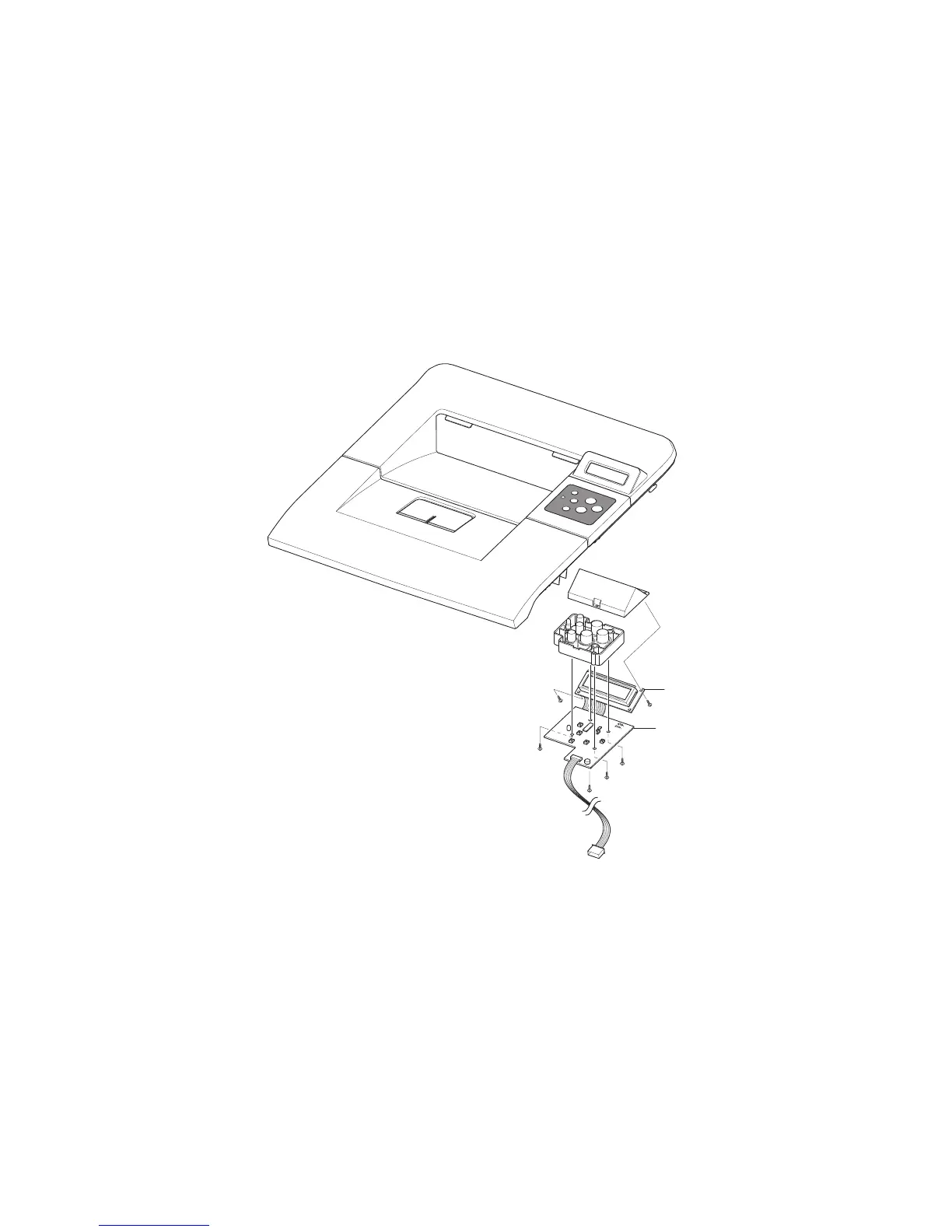

Control Panel and LCD Display
1. Remove:
■ Top Cover on page 4-8
2. Remove the 6 screws securing the LCD and control panel and remove from the top cover.
■ 2 screws to the LCD Board.
■ 4 screws on the key panel board.
Note: DO NOT remove the 3 screws securing the plastic portion of the LCD display.
LCD Panel
Key Panel
s3500-086
