Xerox Phaser 3500 - Exit Gear; Tray Full Actuator

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-40
Exit Gear

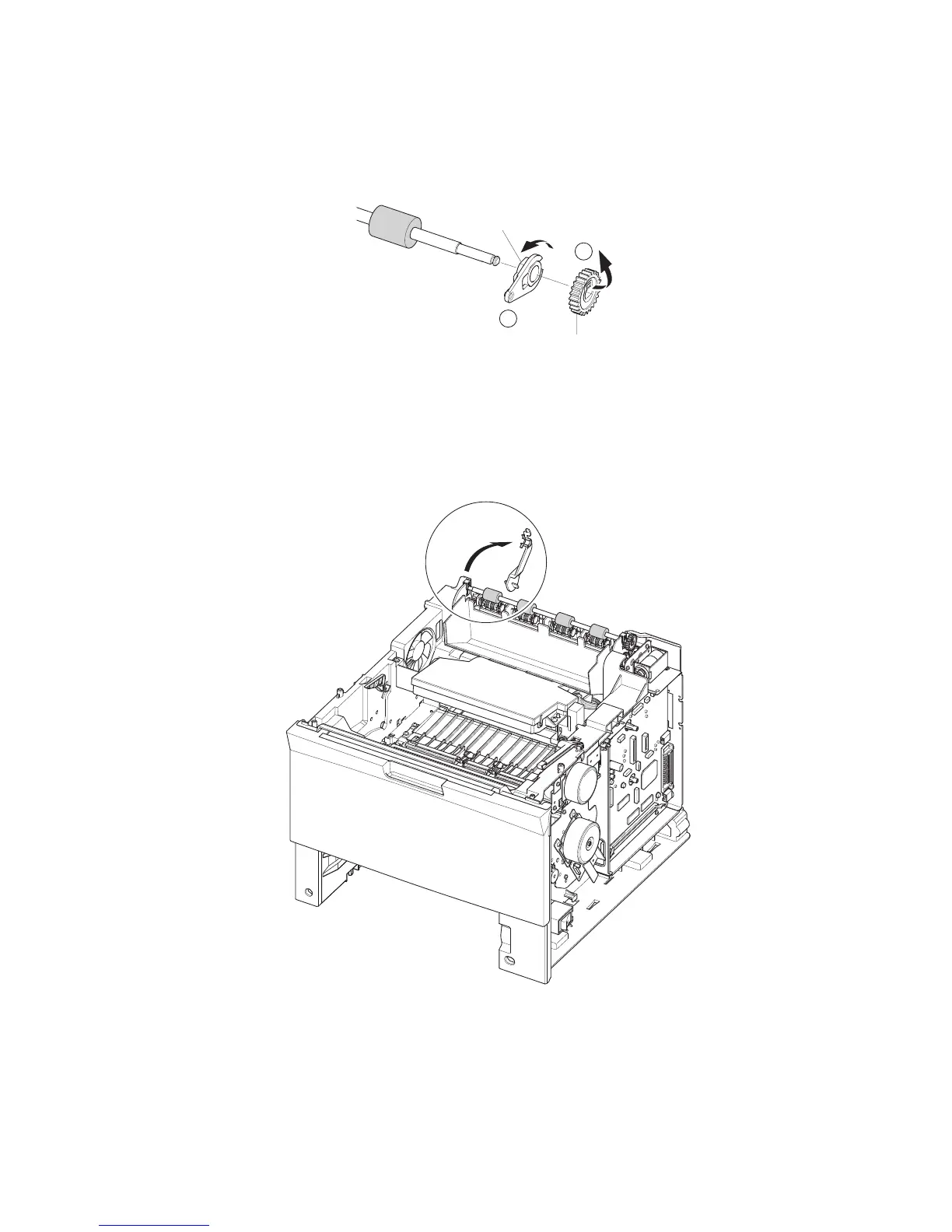

1. Remove the bearing in order to remove the gear.
Tray Full Actuator
1. Remove the actuator from the exit roller.
Exit Gear
Bearing
2
1
s3500-102
Actuator
s3500-100
