Xerox Phaser 3500 - Tray 1 Pick-Up Rack

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-15
Tray 1 Pick-Up Rack

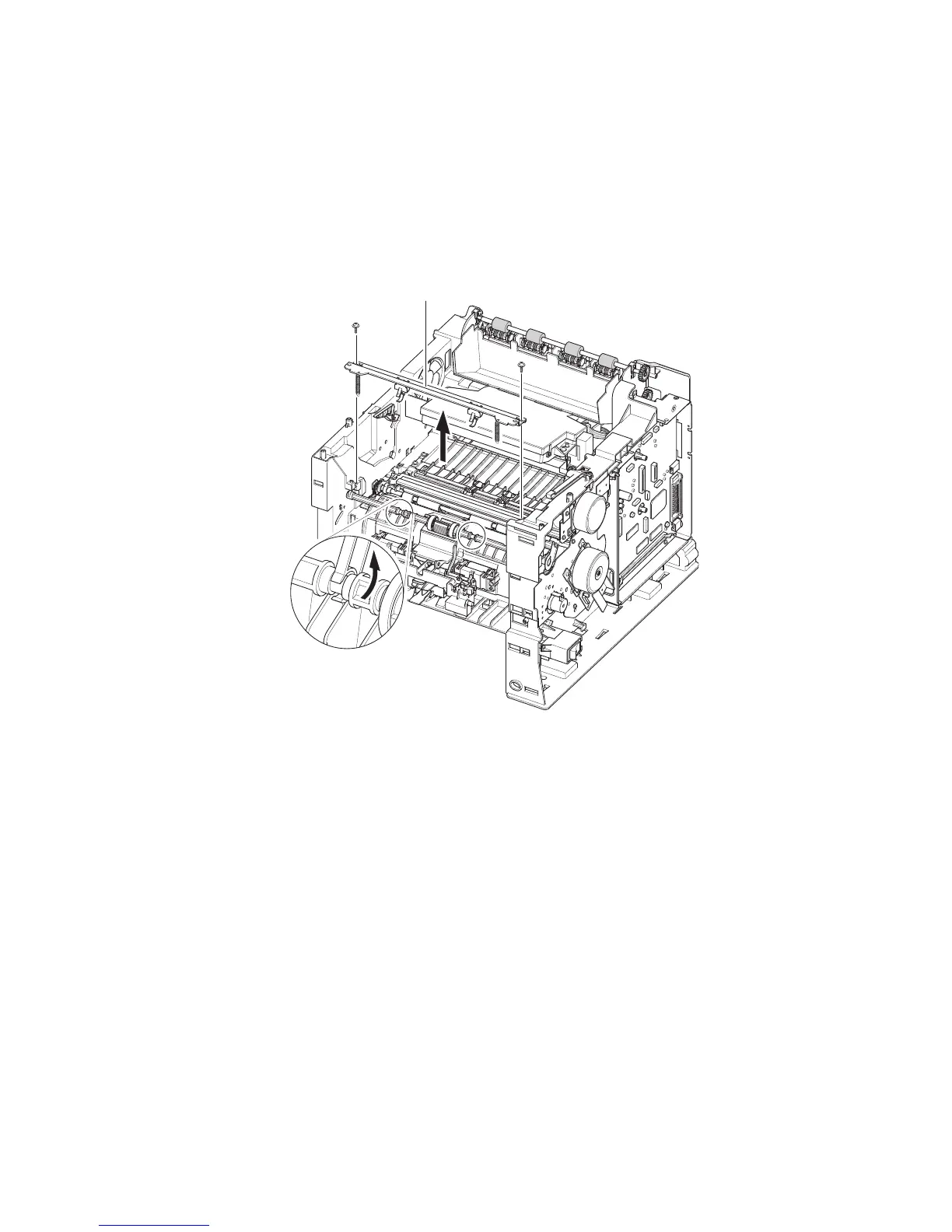

1. Remove 2 screws securing the Pick-Up Rack and remove the rack.
2. Separate the clips from the Pick Roller shaft and remove the Pick-Up Rack.
Caution: Do not remove or loose the springs.
MP Pick Up Rack
s3500-118
