Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-42
Laser (LSU) Assembly and Lower Cover
1. Remove:
■ Covers on page 4-4
■ Left Cover on page 4-5
■ Top Cover on page 4-8
2. Remove the cover-frame exit cover.
3. Disconnect the connector from the LSU to the Main Board.
4. Remove the 3 screws securing the LSU to the chassis.
5. Remove the LSU from the printer.
Note: The screws are numbered and need to be replaced and tightened in the correct order.

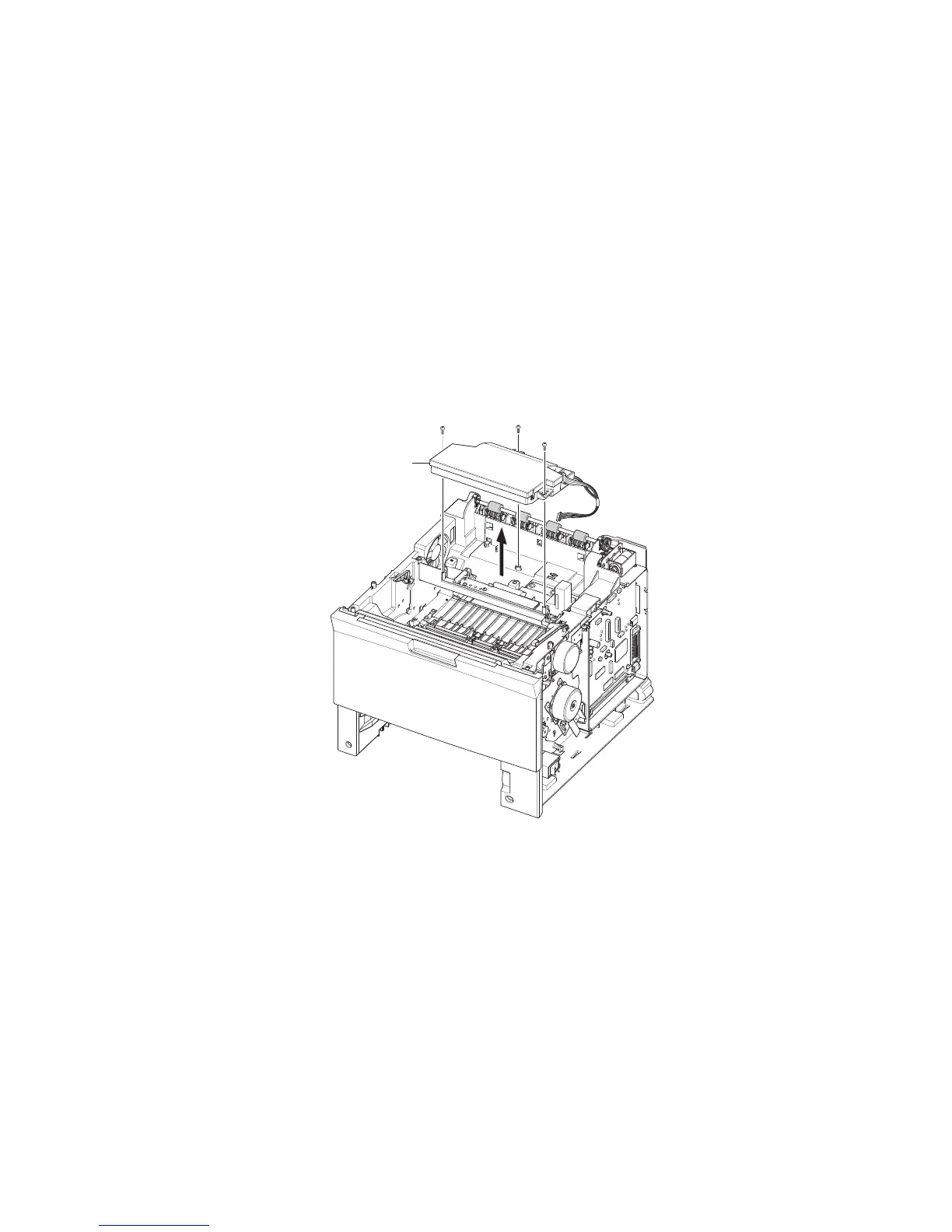

LSU
s3500-106
