Xerox Phaser 3500 - Open Cover

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-11
Open Cover
1. Remove:
■ Covers on page 4-4
■ Left Cover on page 4-5
■ Top Cover on page 4-8

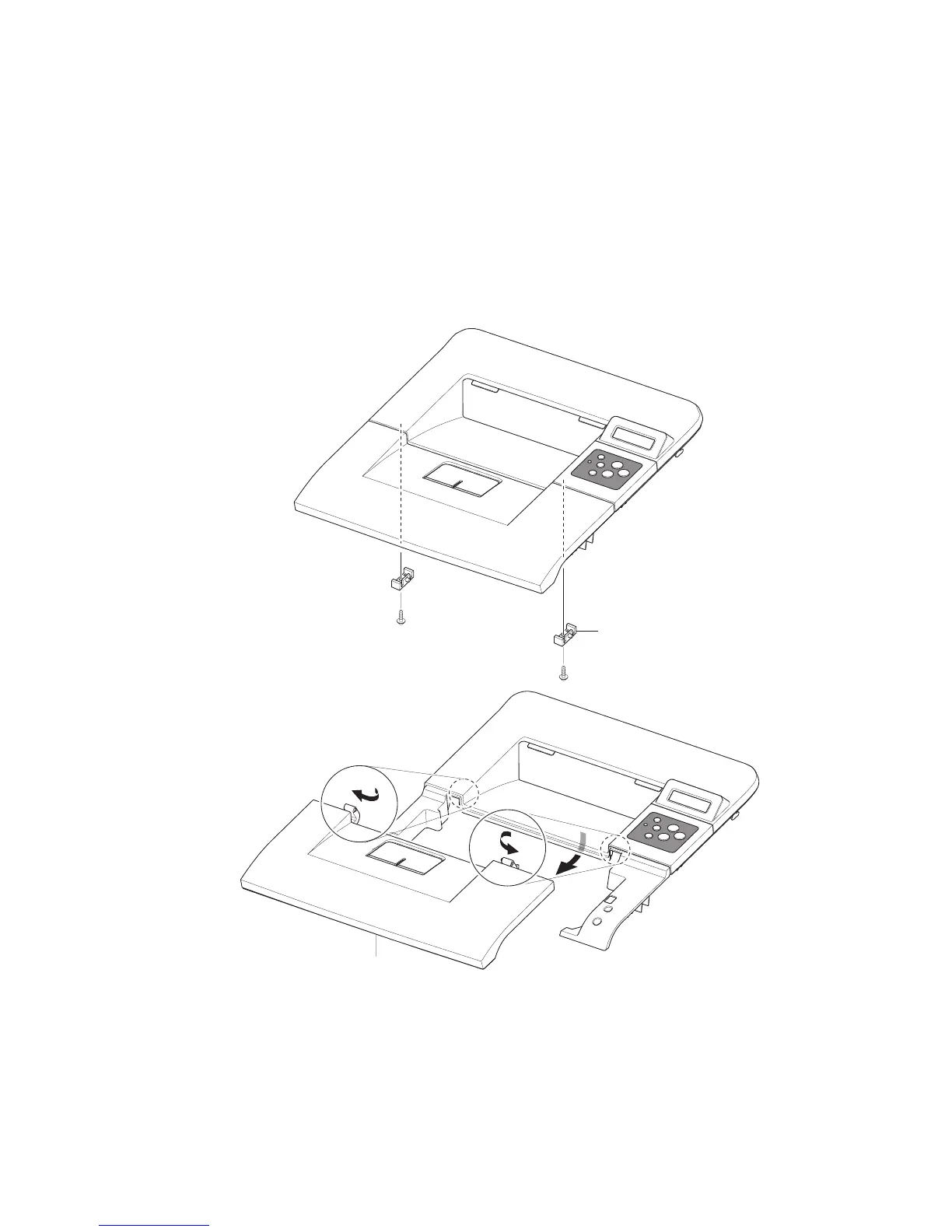

2. Remove the 2 screws and stoppers from the Open Cover.
3. Remove the Open Cover from the Top Cover by flexing the 2 tabs as shown below.
Stopper
s3500-087
Open Cover
s3500-088
