Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-44
Left Side Cooling Supply Fan and Duct
1. Remove:
■ Covers on page 4-4
■ Left Cover on page 4-5
■ Top Cover on page 4-8
■ Laser (LSU) Assembly and Lower Cover on page 4-42
2. Disconnect the connector to the Toner Sensor Board.
3. Remove 1 screw to remove the fan from the printer.

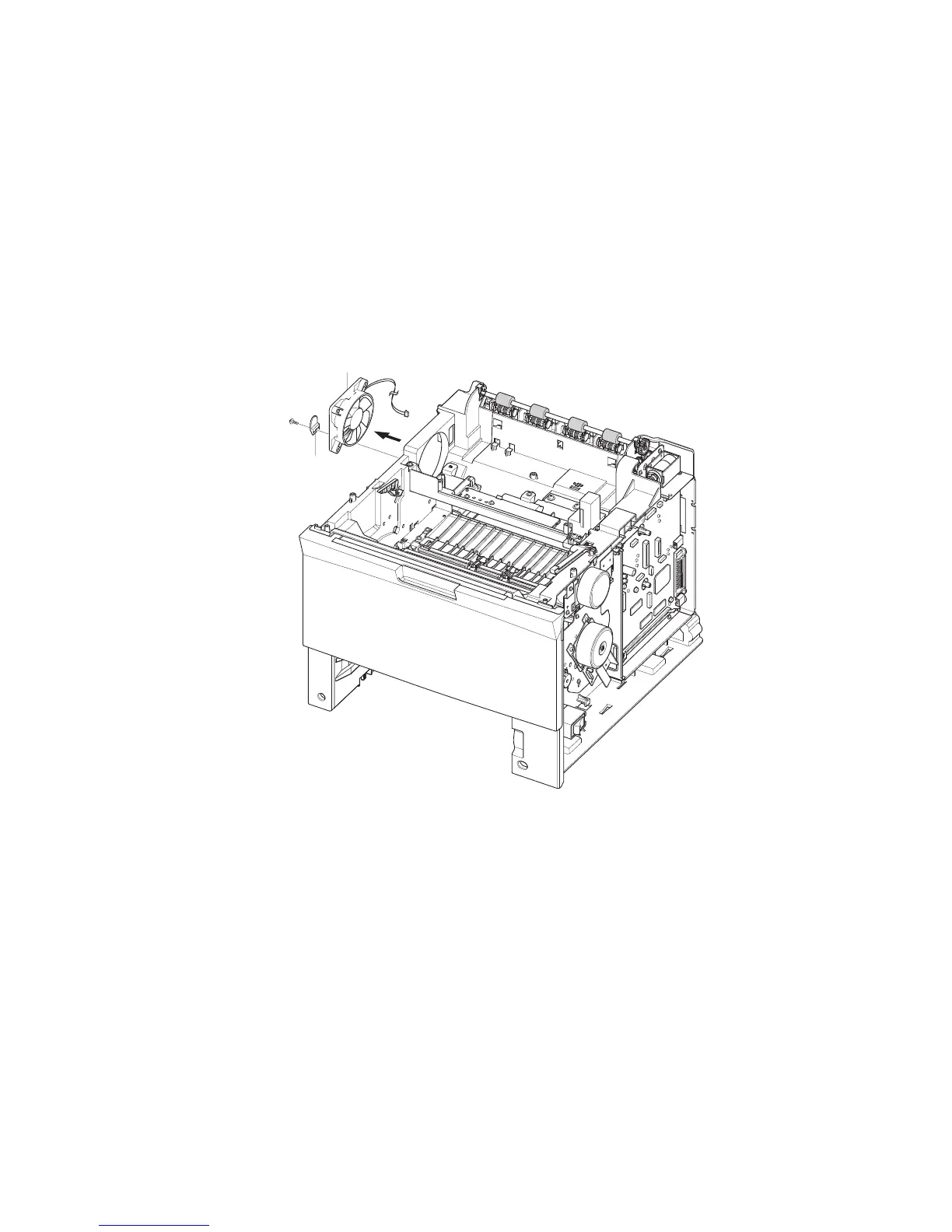

Stopper
DC Fan
s3500-108
