Xerox Phaser 3500 Service Manual

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-43

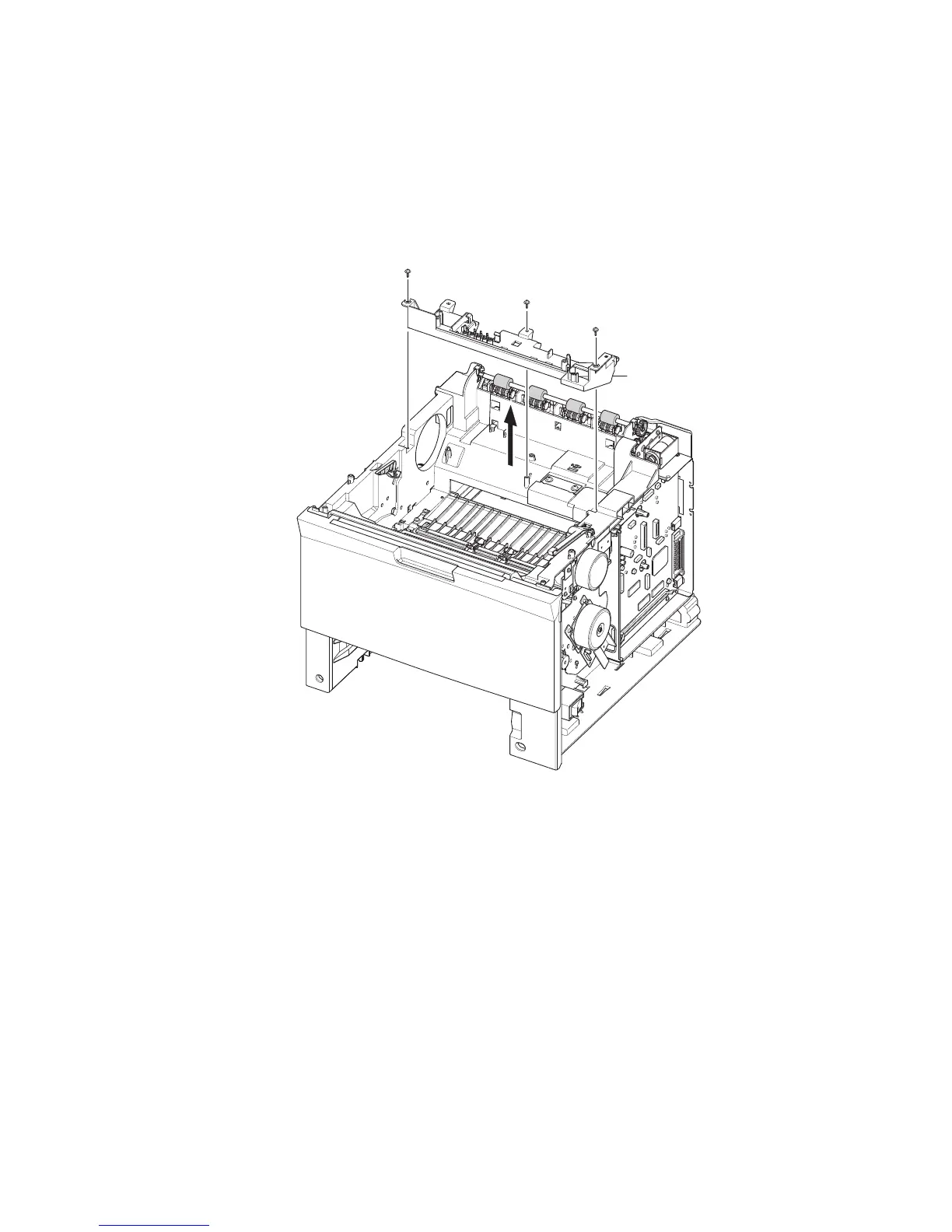

LSU Lower Cover
1. Remove 1 screw securing the fan duct.
2. Remove the fan and duct to access the screw in the next step.
3. Remove 3 screws securing the LSU Cover and remove the cover.
4. Disconnect all the connectors running to the LSU Cover.
LSU Lower
Cover
s3500-113
