Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-25

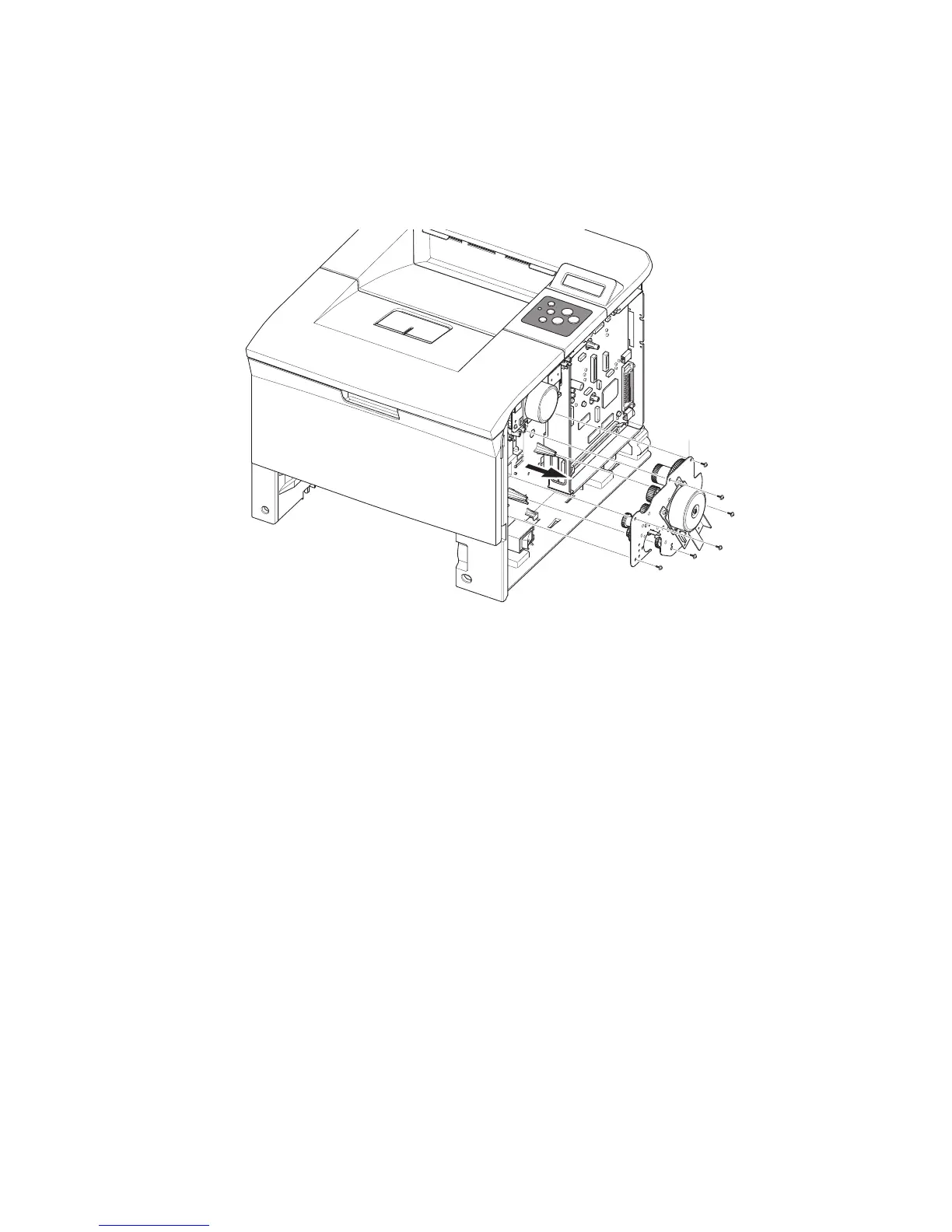

Main Drive Assembly
1. Disconnect 1 connector from the main motor assembly.
2. Remove the 6 screws securing the Main Drive to the printer.
3. Remove the Main Drive from the printer.
Replacement Notes
Note: There are numbers for replacing each of the 6 screws in the appropriate order when
reassembling the Main Drive Assembly. There is a veristor that is secured underneath the
number 3 screw.
Main Drive
Ass'y
s3500-074
To Next Page
