Xerox Phaser 3500 - Registration Assembly

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-21
Registration Assembly
1. Remove:
■ Covers on page 4-4
■ Left Cover on page 4-5
■ Top Cover on page 4-8

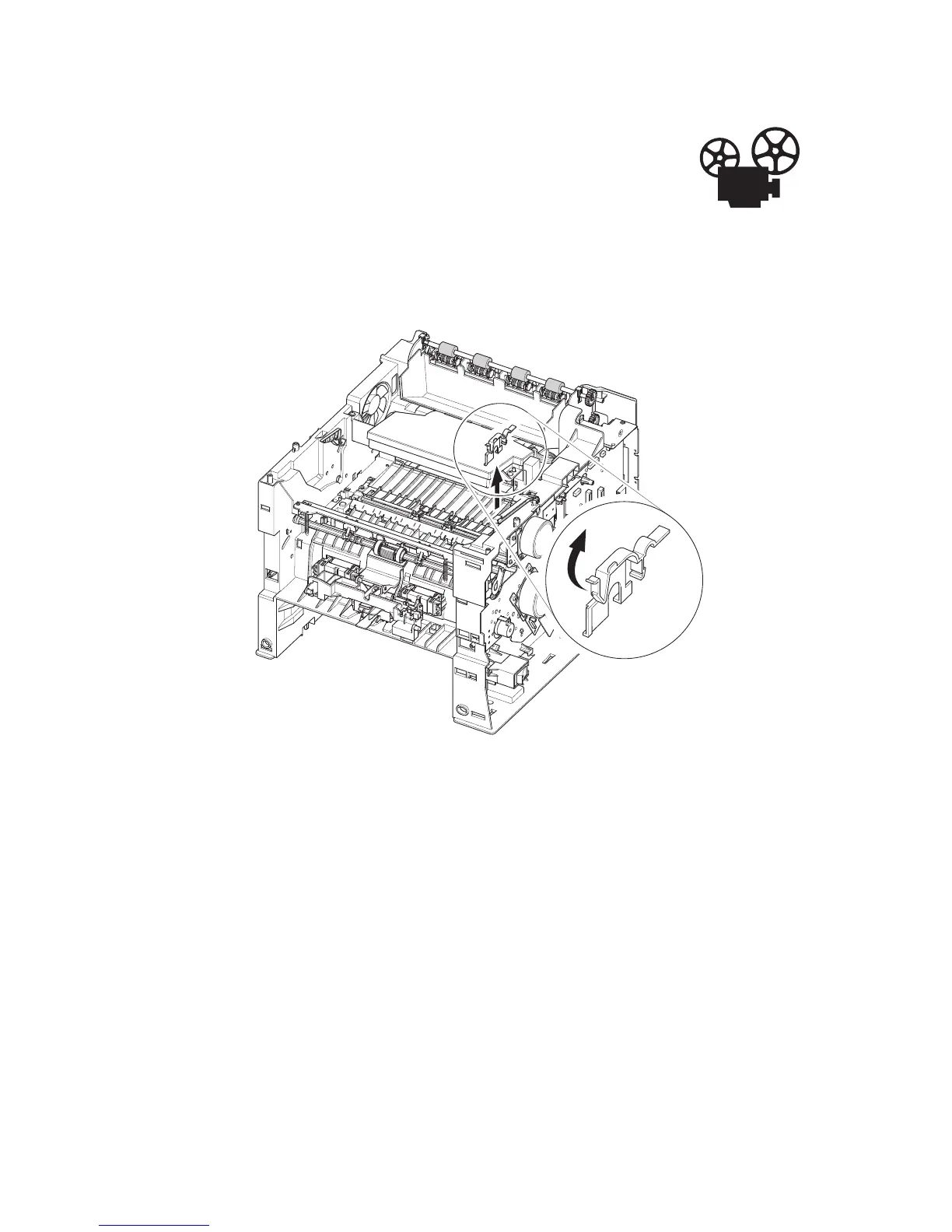

2. Remove the Gear Cap located on the right side of the Registration Assembly, the release is
on the front of the cap.
Gear Cap
s3500-115
