Xerox Phaser 3500 Service Manual

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-33
Developer Drive Assembly
1. Remove:
■ Covers on page 4-4
2. Disconnect the connector from the developer drive assembly.
3. Remove 4 screws securing the developer drive to the printer.
Replacement Notes
Note: There are numbers for replacing each of the 4 screws in the appropriate order when
reassembling the Developer Drive Assembly.

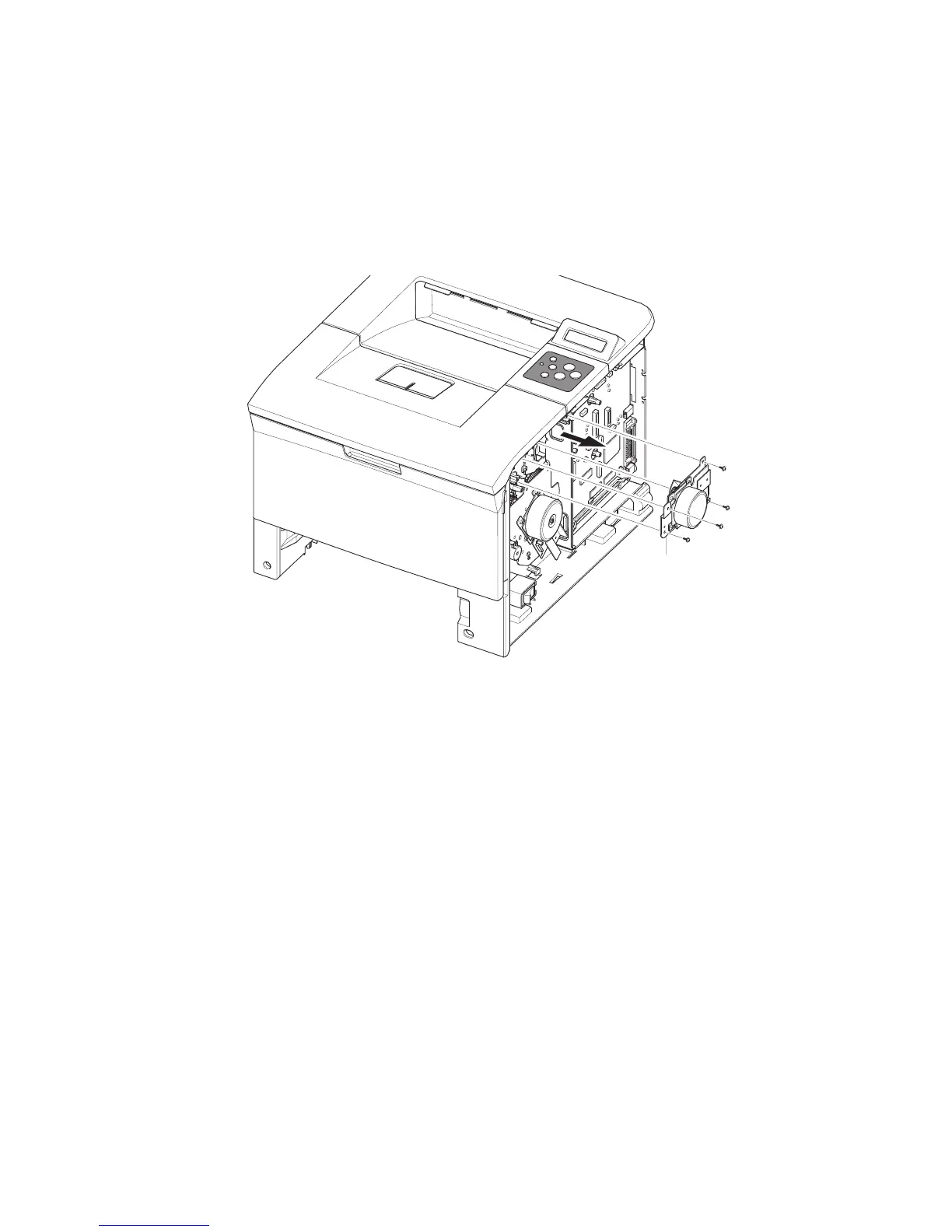

DEVE Drive
Ass'y
s3500-075
