Xerox Phaser 3500 - Retard Assembly

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-18
Retard Assembly
1. Remove:
■ Tray 1 (MPT) Assembly on page 4-12

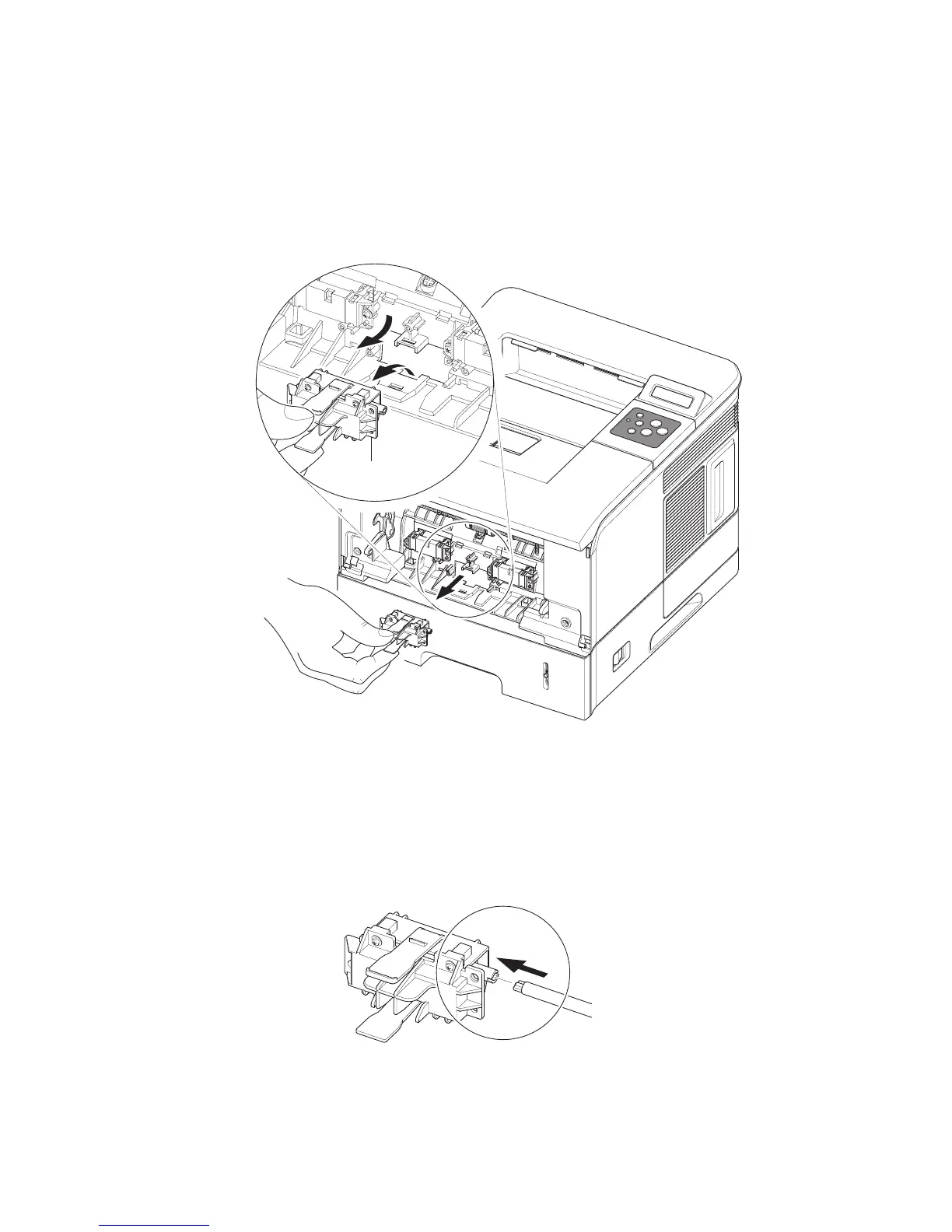

2. Squeeze the lock as shown below and take out the retard assembly.
Reassembly Notes
Note: When reassembling the retard roller, insert the left end of the retard shaft through
the retard roller first.
Retard Ass'y
s3500-065
s3500-066
