Xerox Phaser 3500 Service Manual

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-12
Tray 1 (MPT) Assembly

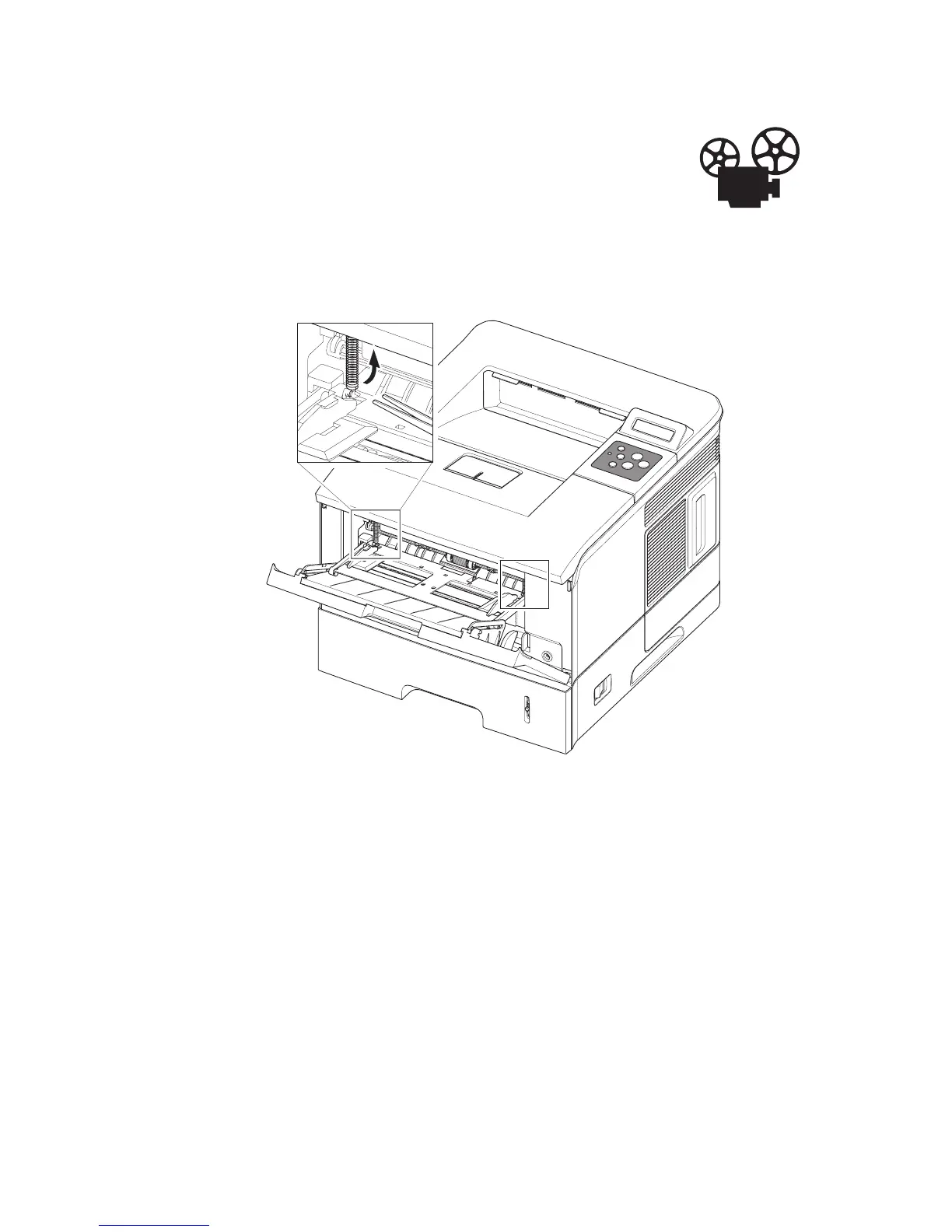

1. Open Tray 1.
2. Unhook the 2 springs connecting the Knock-up Plate to the Pick-Up
Rack.
Note: DO NOT unhook the springs from the Pick-Up Rack.
Note: In the next step, if you exert too much pressure you can break the tracks.
s3500-058
