Xerox Phaser 3500 - Inner Cover

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-16
Inner Cover
1. Remove:
■ Tray 1 (MPT) Assembly on page 4-12
■ Top Cover on page 4-8
2. Open or remove Tray 2 for better access.
3. Remove 2 screws securing the Inner Cover to the printer frame.
4. Remove the Inner Cover.

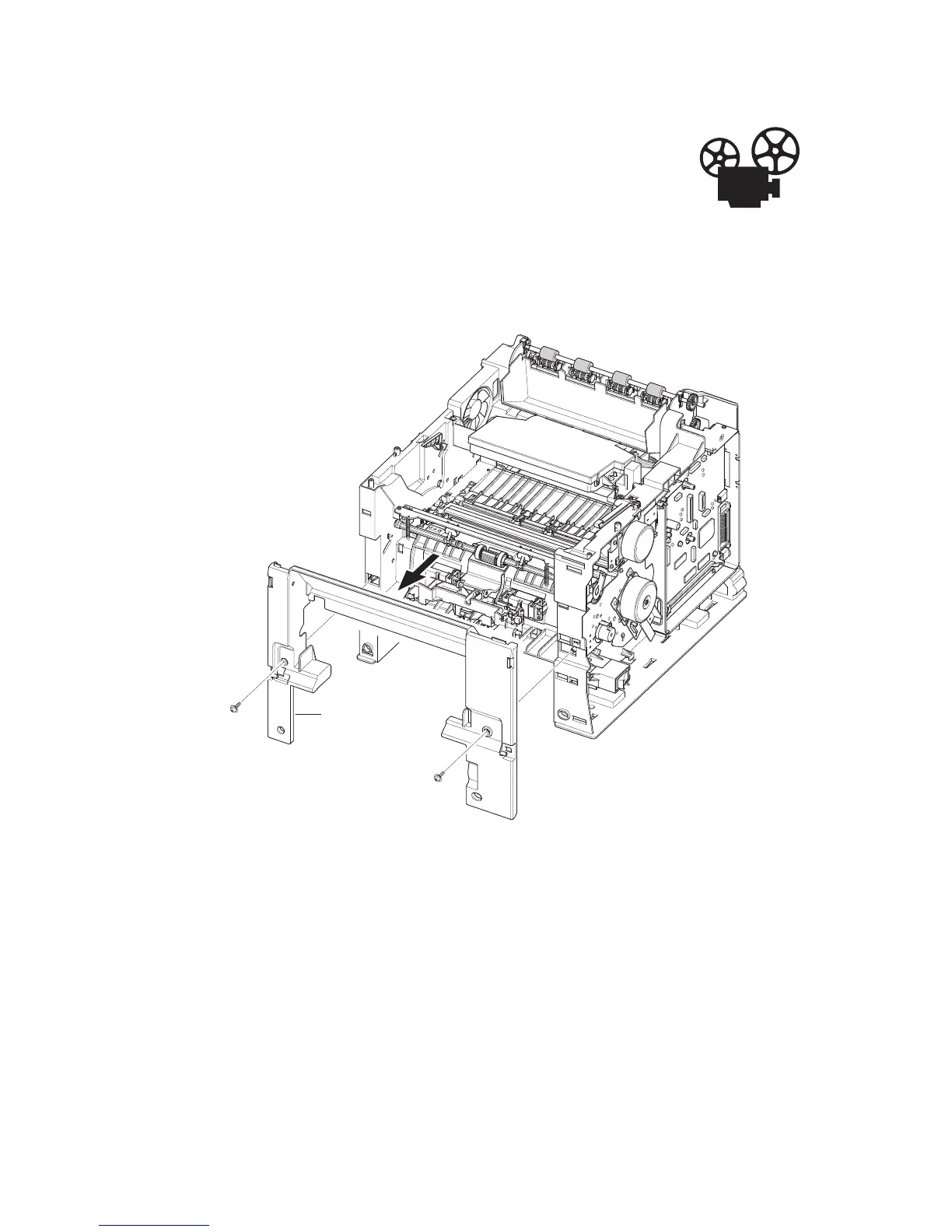

Inner Cover
s3500-089
