Xerox Phaser 3500 - Exit Solenoid Assembly

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-38
Exit Solenoid Assembly
1. Remove:
■ Covers on page 4-4
■ Left Cover on page 4-5
■ Top Cover on page 4-8
2. Disconnect the connector running to the main board.
3. Remove 3 screws securing the solenoid to the printer.
4. Remove the solenoid assembly.
Note: There is a resistor attached by the upper right hand screw. When reassembling the
printer, ensure the resistor is in place.

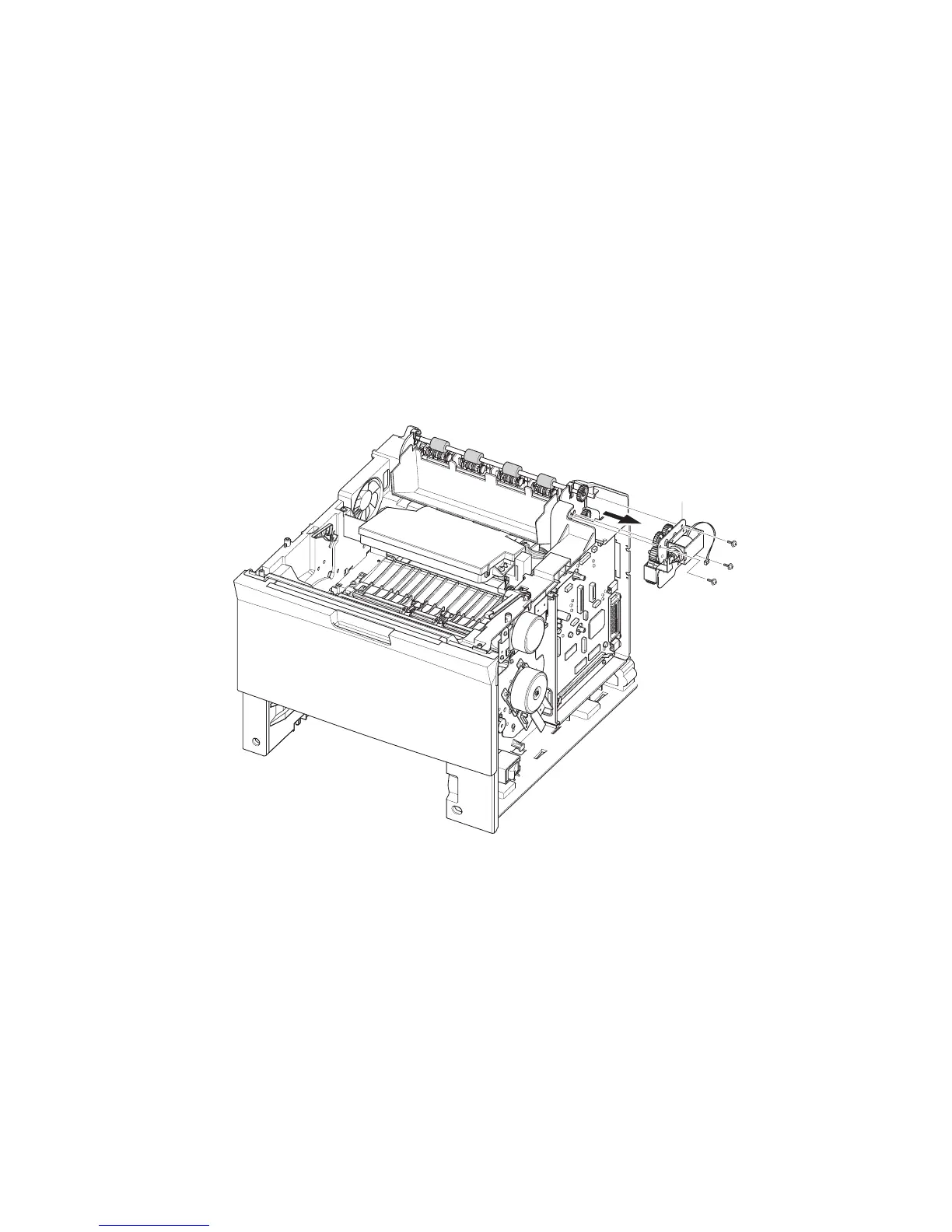

Exit Solenoid
Ass'y
s3500-099
