Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-37
Fuser Assembly
1. Remove:
■ Rear Cover on page 4-6

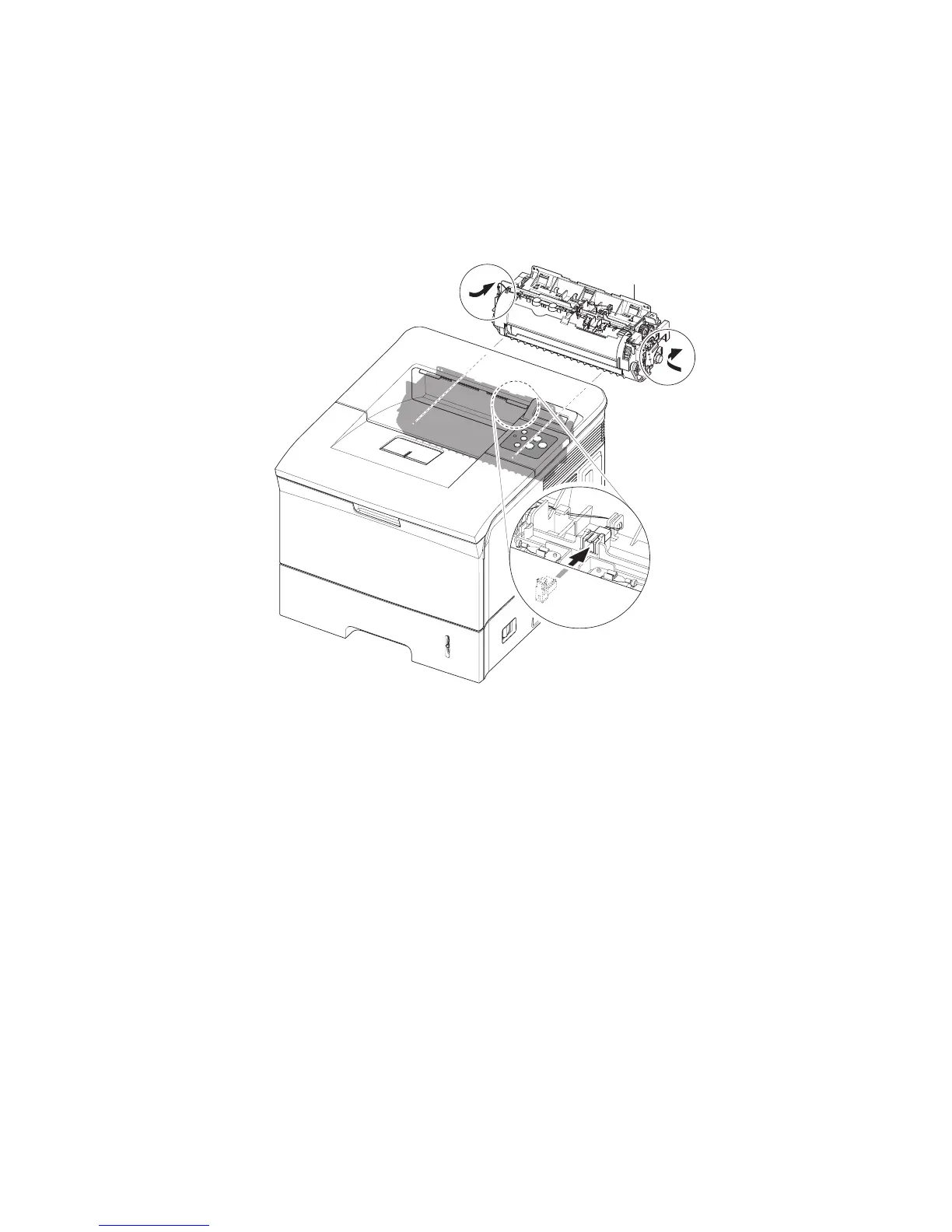

2. Pull the locking lever and take out the Fuser Assembly.
Thermistor
Connector
Fuser Ass'y
s3500-090
