Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-49

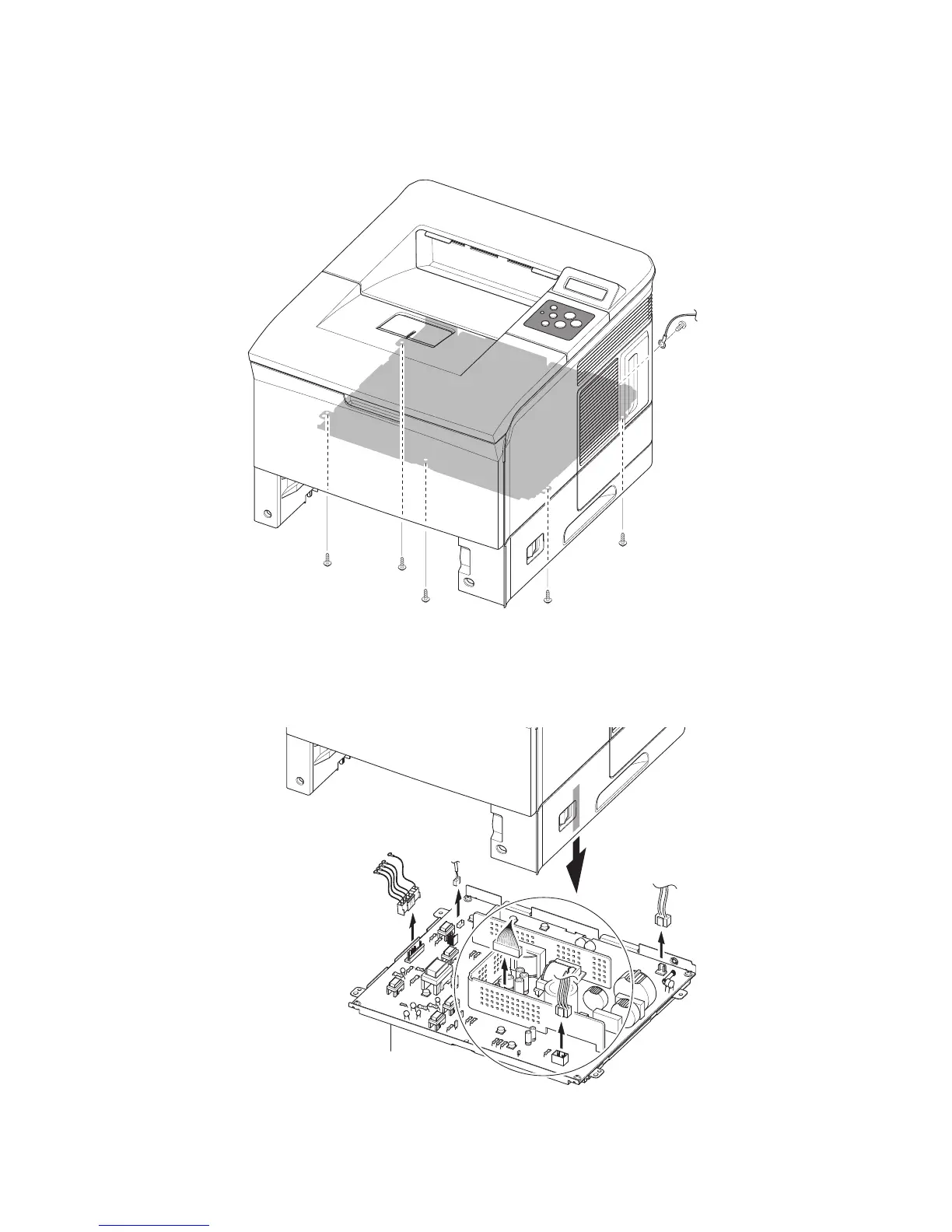

6. Remove 5 screws from the power supply shield.
7. Remove 1 grounding screw from the rear of the power supply shield.
8. Pull out the shield slightly and disconnect all connectors to the power supply board.
9. Remove the power supply from the printer.
Engine Shield
Ass'y
s3500-135
Engine Shield Ass'y
s3500-137
