Xerox Phaser 3500 Service Manual

Repairs and Adjustments
Phaser® 3500 Laser Printer Service Manual
4-28

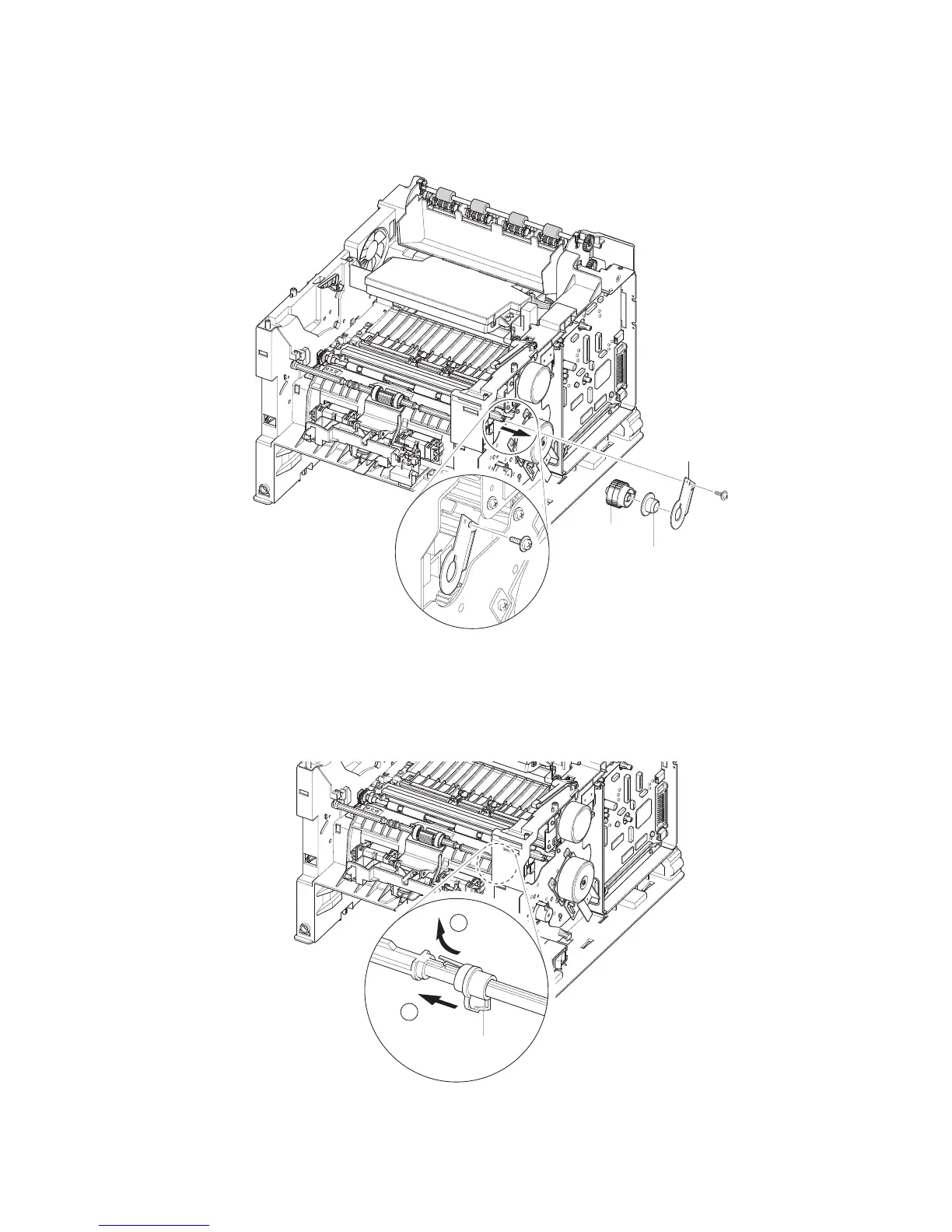

3. Remove 1 screw, on the right end of the shaft, securing the bracket, remove the bracket
with the bearing.
4. Remove the right side gear from the shaft.
5. Lift the latch on the idle cam and slide the shaft to the right, throught the cam, to free it
from the printer.
Gear ass'y
Bearing
Bracket
s3500-120
Idle-Cam
2
1
s3500-121
