Xerox WorkCentre 5021 Service Documentation

08/2012
4-81
WorkCentre 5021/5019
REP 56.10.1
Repairs and Adjustments
Initial Issue

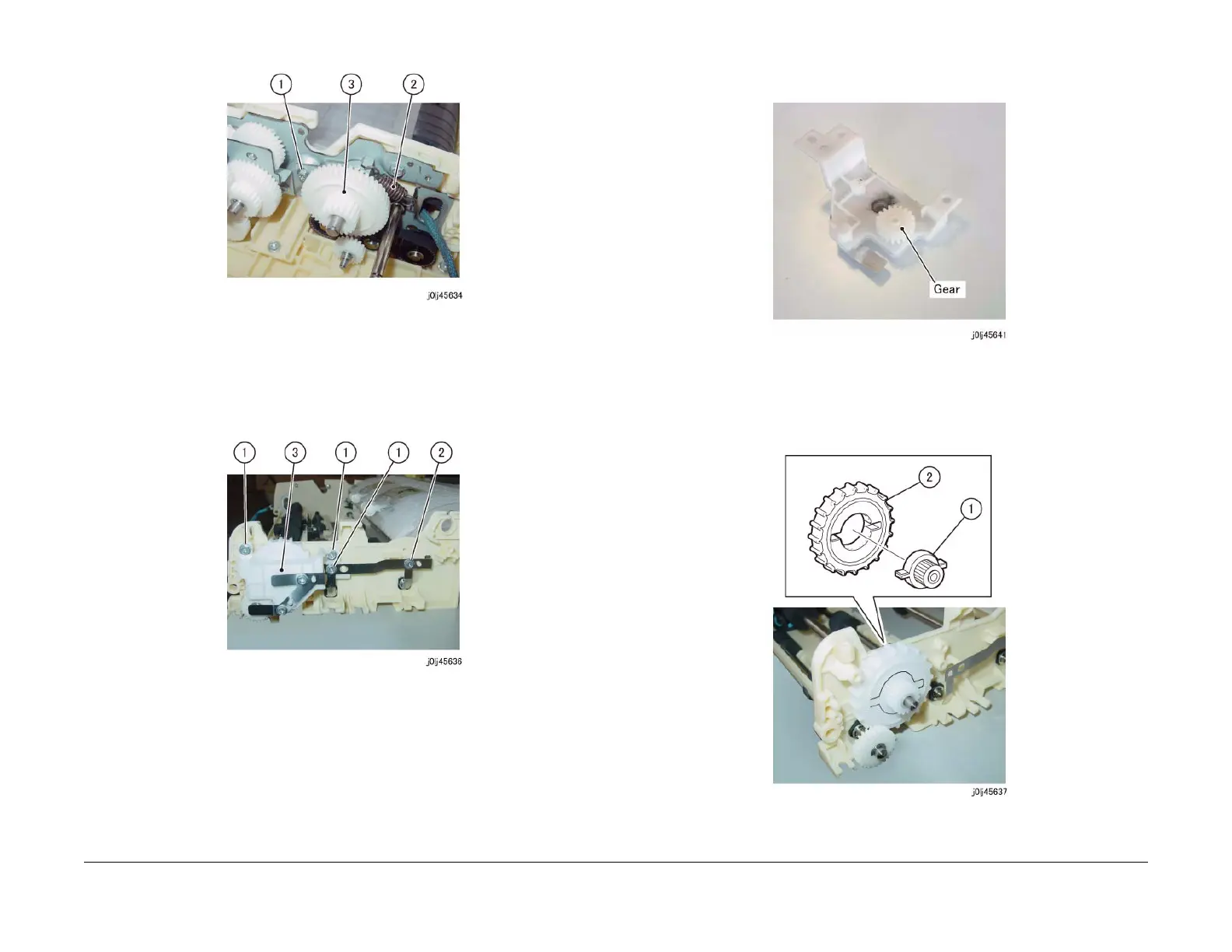

Figure 4 j0lj45634
12. Remove the Bracket and Ground Plate at the front. (Figure 5)
(1) Remove the Tapping Screw (x3).
(2) Loosen the screw.
(3) Remove the Bracket and Ground Plate.
Figure 5 j0lj45636
NOTE: Be careful so as to not lose the gear under the Bracket and Ground Plate. (Figure
6)
Figure 6 j0lj45641
13. Remove the Knob Handle. (Figure 7)
(1) Remove the gear.
(2) Remove the Knob Handle.
Figure 7 j0lj45637
14. Remove the bearing at the front. (Figure 8)

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
