WorkCentre 5021/5019
REP 56.10.1
Initial Issue
Repairs and Adjustments
(1) Remove the KL-Clip.
(2) Remove the Bearing.

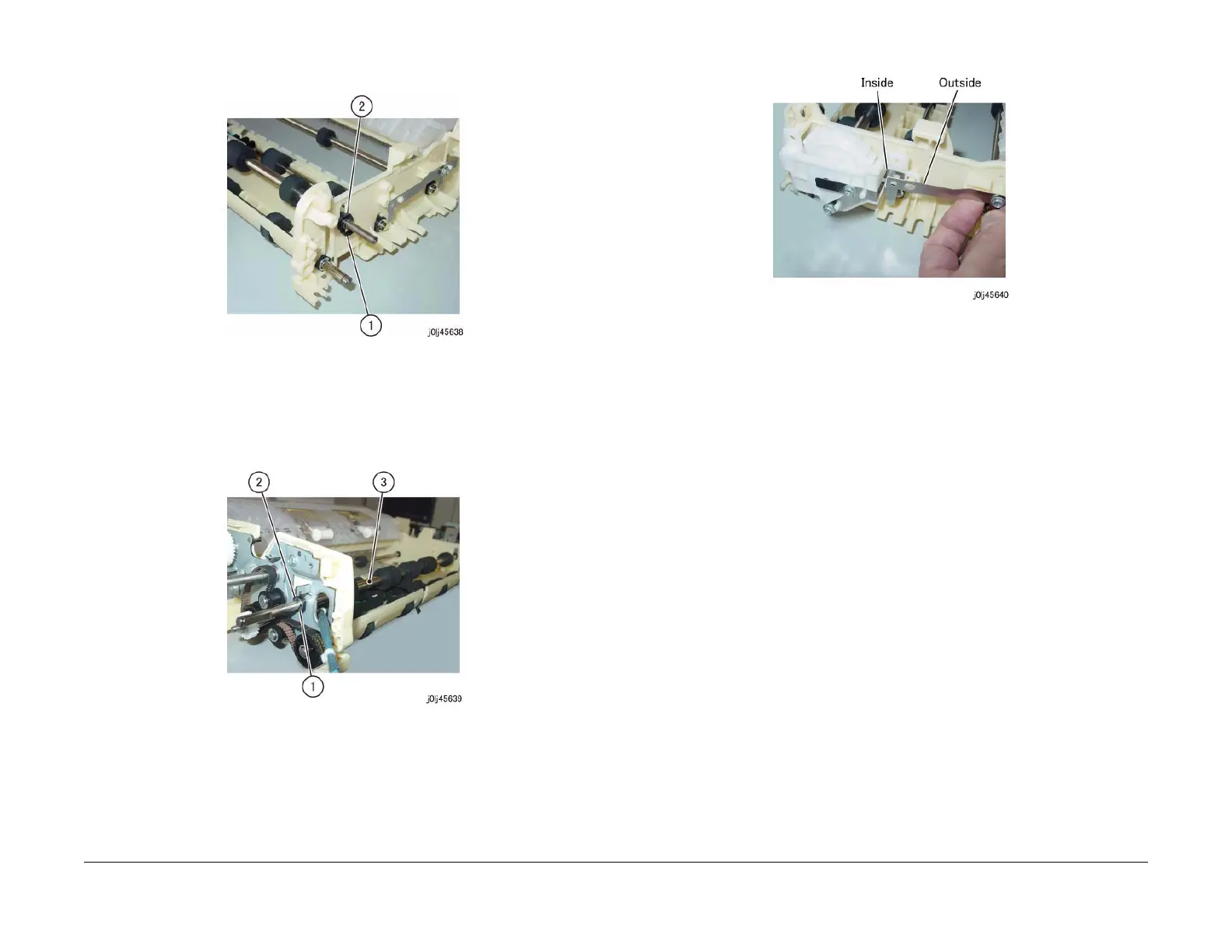

Figure 8 j0lj45638
15. Remove the bearing at the rear and remove the DADF Takeaway Roll. (Figure 9)
(1) Remove the E-Clip.
(2) Remove the Bearing.
(3) Remove the DADF Takeaway Roll.
Figure 9 j0lj45639
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Bracket and Ground Plate, install the Ground Plate as shown in the
figure.
(Figure 10)
Figure 10 j0lj45640
