Xerox WorkCentre 5021 Service Documentation

08/2012
4-84
WorkCentre 5021/5019
REP 56.10.2
Initial Issue
Repairs and Adjustments

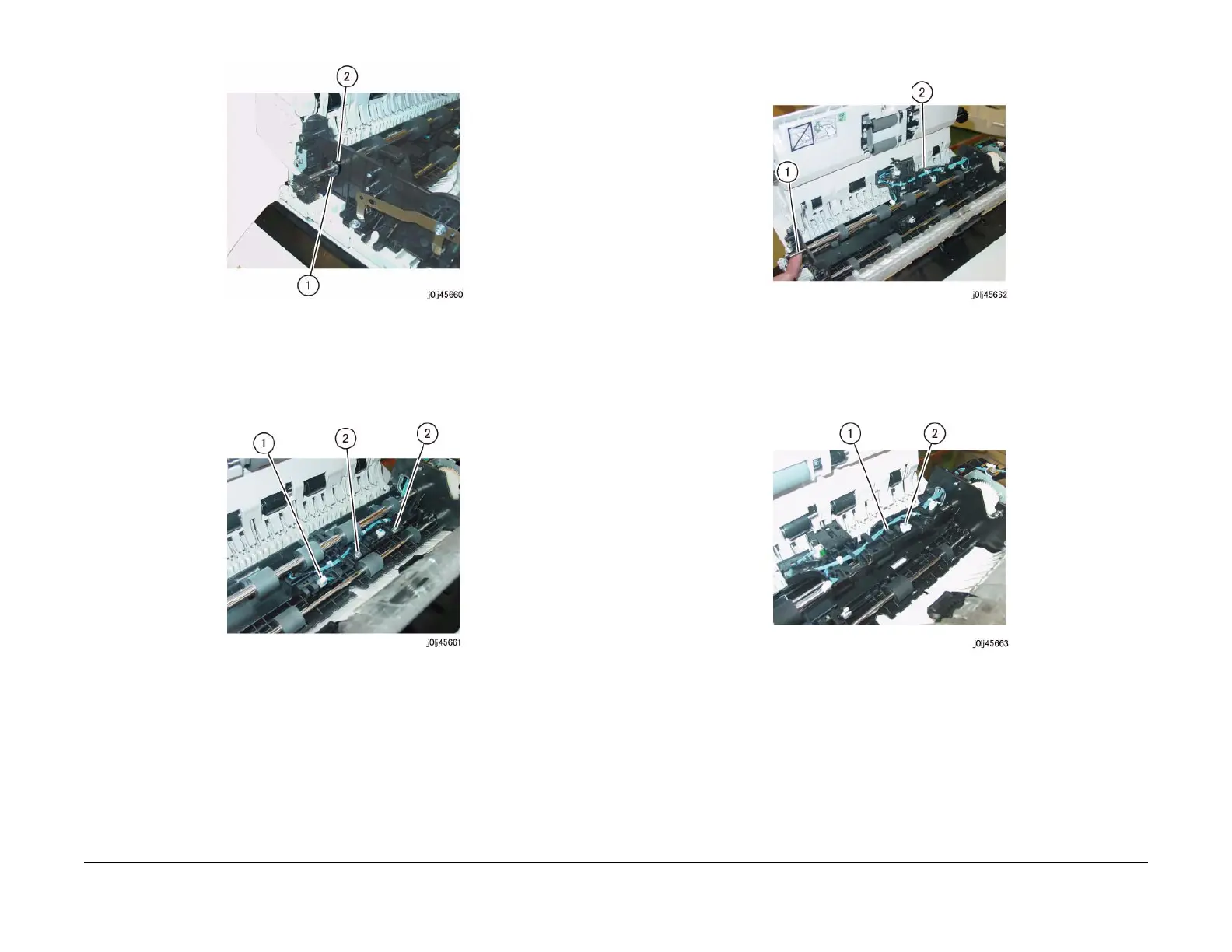

Figure 4 j0lj45660
7. Remove the screws that secure the Sensor Bracket. (Figure 5)
(1) Disconnect the connector.
(2) Remove the Tapping Screw (x2).
Figure 5 j0lj45661
8. Remove the Sensor Bracket from underneath the DADF Takeaway Roll. (Figure 6)
(1) Lift up the Front side of the DADF Takeaway Roll.
(2) Remove the Sensor Bracket.
Figure 6 j0lj45662
9. Remove the DADF Pre Regi Sensor. (Figure 7)
(1) Release the hook to remove the DADF Pre Regi Sensor.
(2) Disconnect the connector.
Figure 7 j0lj45663
10. Remove the DADF Regi Sensor at the back of the Sensor Bracket. (Figure 8)
(1) Release the hook to remove the DADF Regi Sensor.
(2) Disconnect the connector.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
