Xerox WorkCentre 5021 Service Documentation

08/2012
4-85
WorkCentre 5021/5019
REP 56.10.2
Repairs and Adjustments
Initial Issue

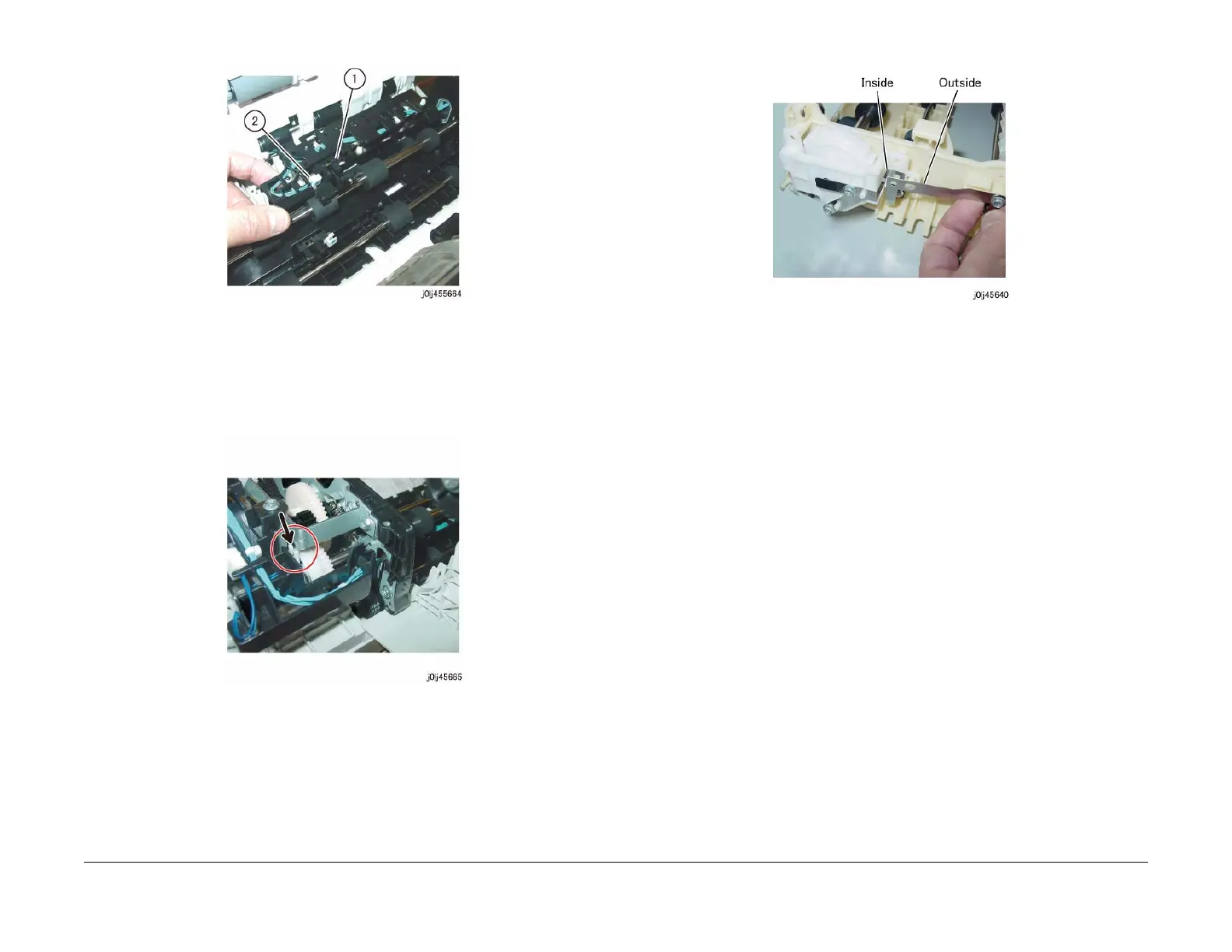

Figure 8 j0lj45664
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Bearing of the DADF Takeaway Roll, align the Cutout of the DADF
Takeaway Clutch at the Rear side to the Tab of the Bracket of the DADF Feed Motor. (Fig-
ure 9)
Figure 9 j0lj45665
3. When installing the Bracket and Ground Plate, install the Ground Plate as shown in the
figure.
(Figure 10)
Figure 10 j0lj45640

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
