6.1.7 Installation Space
6.1.7.1 Installation Space
Sufficient space must be made available around the machine for performing activities such as
loading paper, refilling, retrieving printouts, replacing consumables, clearing Jams, mainte-
nance inspection, and etc., as well as to ensure that the machine's performance can be main-
tained.
• Width: The max. width with the MSI Tray pulled out is 921 mm.
• Depth: The depth with the Tray pulled out is 960 mm. (Including the Front Cover)
The installation space includes the following working space.
• Width: 80 mm added to the left and 100 mm added to the right
• Depth: 400 mm added to the front (for pulling out of Tray) and 100 mm added to the back
(for air circulation)
6.1.7.2 Occupied Space
The occupied space may include a fully extended Bypass Tray and Output Tray.

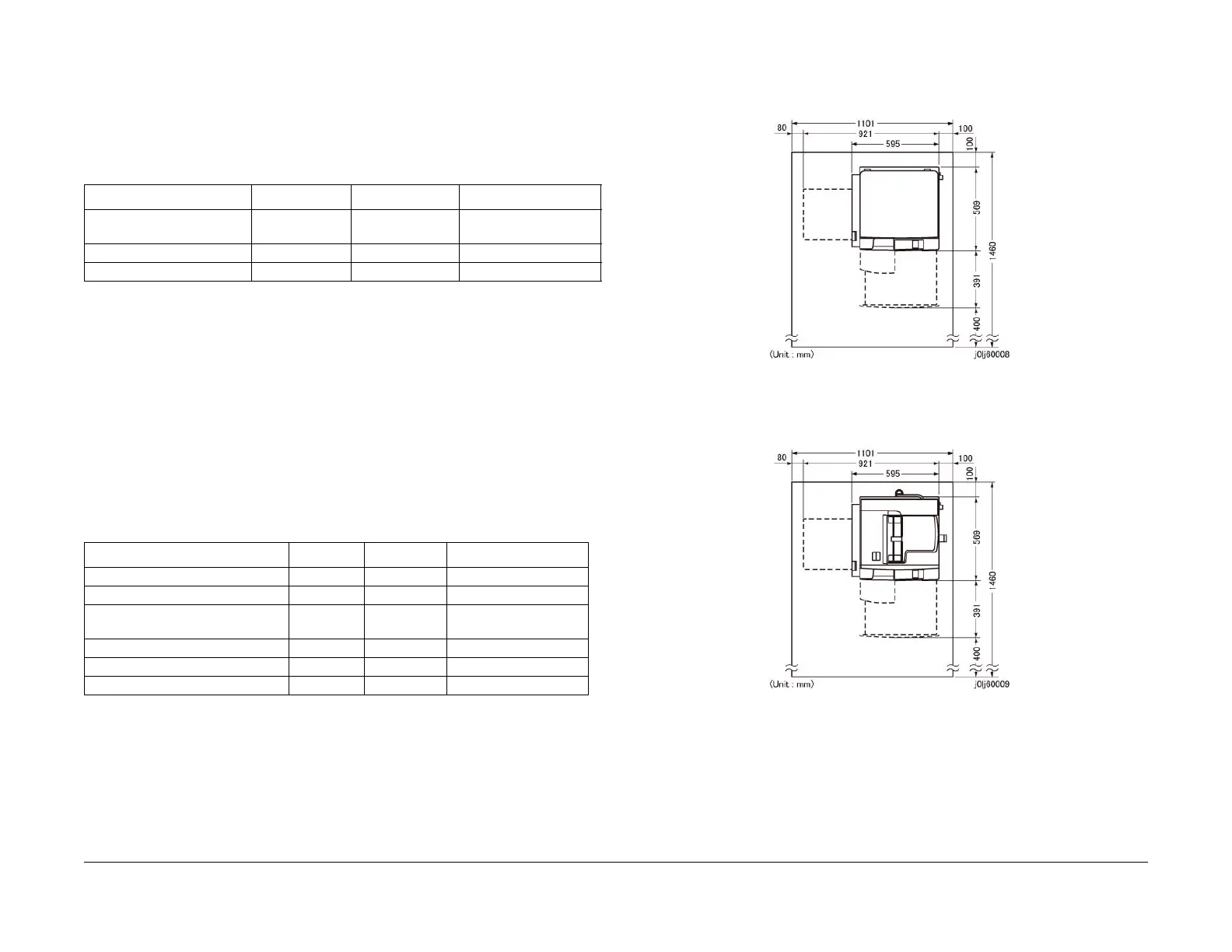

6.1.7.3 Installation Space Details
1. Main Unit (w/Platen Cover)
• Installation Space (W x D): 1101 mm x 1460 mm (Figure 1)
Figure 1 j0lj60008
2. Main Unit (w/DADF) + STM
• Installation Space (W x D): 1101 mm x 1460 mm (Figure 2)
Figure 2 j0lj60009
3. Main Unit (w/DADF) +STM+ Stand
Table 1
Configuration Width (mm) Depth (mm) Area (square meters)
Main Unit (w/Platen Cover or
w/DADF)
1101 1460 1.61
Main Unit + STM 1101 1460 1.61
Main Unit + STM + Stand 1101 1460 1.61
Table 2
Configuration Width (mm) Depth (mm) Area (square meters)
Main Unit + Platen Cover 947 569 0.54
Main Unit + Platen Cover + STM 947 569 0.54
Main Unit + Platen Cover + STM +
Stand
947 685 0.65
Main Unit + DADF 972 569 0.56
Main Unit + DADF + STM 972 569 0.56
Main Unit + DADF + STM + Stand 972 685 0.66
