WorkCentre 5021/5019
6.1.6
General Procedures
Initial Issue

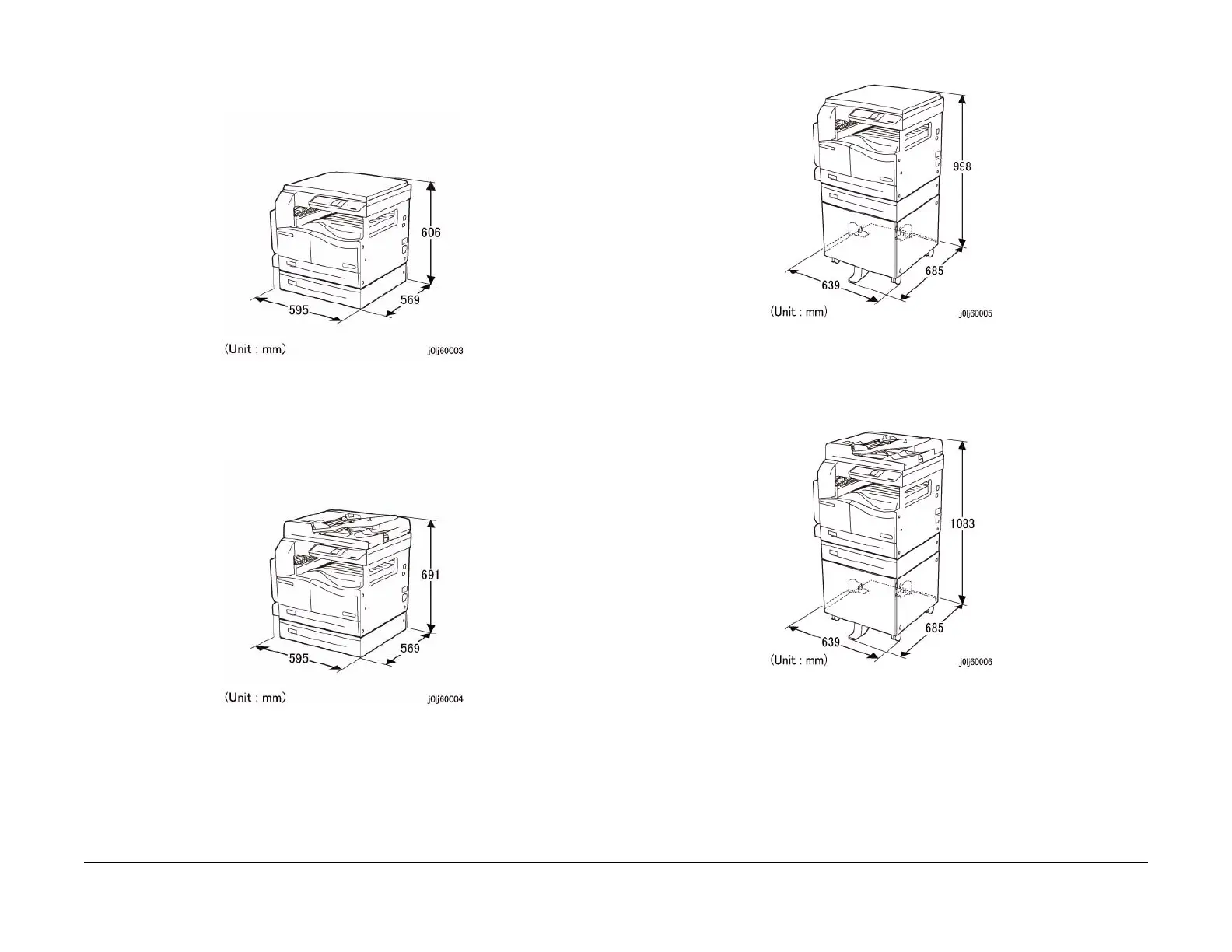

• Basic Model 2-1 (Main Unit +STM+ Platen Cover)
Machine Size (W x D x H): 595 mm x 569 mm x 606 mm (Figure 3)
*1: This machine size (W) does not include the Power Cord.
Figure 3 j0lj60003
• Basic Model 2-2 (Main Unit +STM+ DADF)
Machine Size (W x D x H): 595 mm x 569 mm x 691 mm (Figure 4)
*1: This machine size (W) does not include the Power Cord.
Figure 4 j0lj60004
3. Basic Model 3
• Basic Model 3-1 (Main Unit +STM+ Stand + Platen Cover)
Machine Size (W x D x H): 639 mm x 685 mm x 998 mm (Figure 5)
*1: This machine size (W) does not include the Power Cord.
Figure 5 j0lj60005
• Basic Model 3-2 (Main Unit +STM+ Stand + DADF)
Machine Size (W x D x H): 639 mm x 685 mm x 1083 mm (Figure 6)
*1: This machine size (W) does not include the Power Cord.
Figure 6 j0lj60006
