08/2012
6-6
WorkCentre 5021/5019
6.1.6
Initial Issue
General Procedures
6.1.6 Machine Sizes and Basis Weights
The following are the sizes and weights of the individual products: (excluding toner)
6.1.6.1 Machine Sizes
Projecting sections such as label recesses are not included. The sizes are for when the Bypass
Tray is minimized.
The tolerance is +/-5 mm.
*1: For details on the machine sizes, refer to 6.1.6.3.
*2: This measurement is for when the Power Cord is disconnected. If it is connected, add +27
mm for Basic Models 1 and 2, and add +22 mm for Basic Model 3.
*3: The height is measured up to the top surface of the Platen Glass. Add +34 mm to this if the
Platen Cover is installed and add +119 mm if the DADF is installed.
6.1.6.2 Machine Weights
Measurement Conditions:
Not inclusive of Options, Output Tray, Paper, and New Toner Cartridges.
Max Floor Weight Capacity (Reference value):
= Main Unit (w/Dup + w/DADF) + STM + Stand = 36.0 kg + 10.7 kg + 19 kg = 65.7 kg

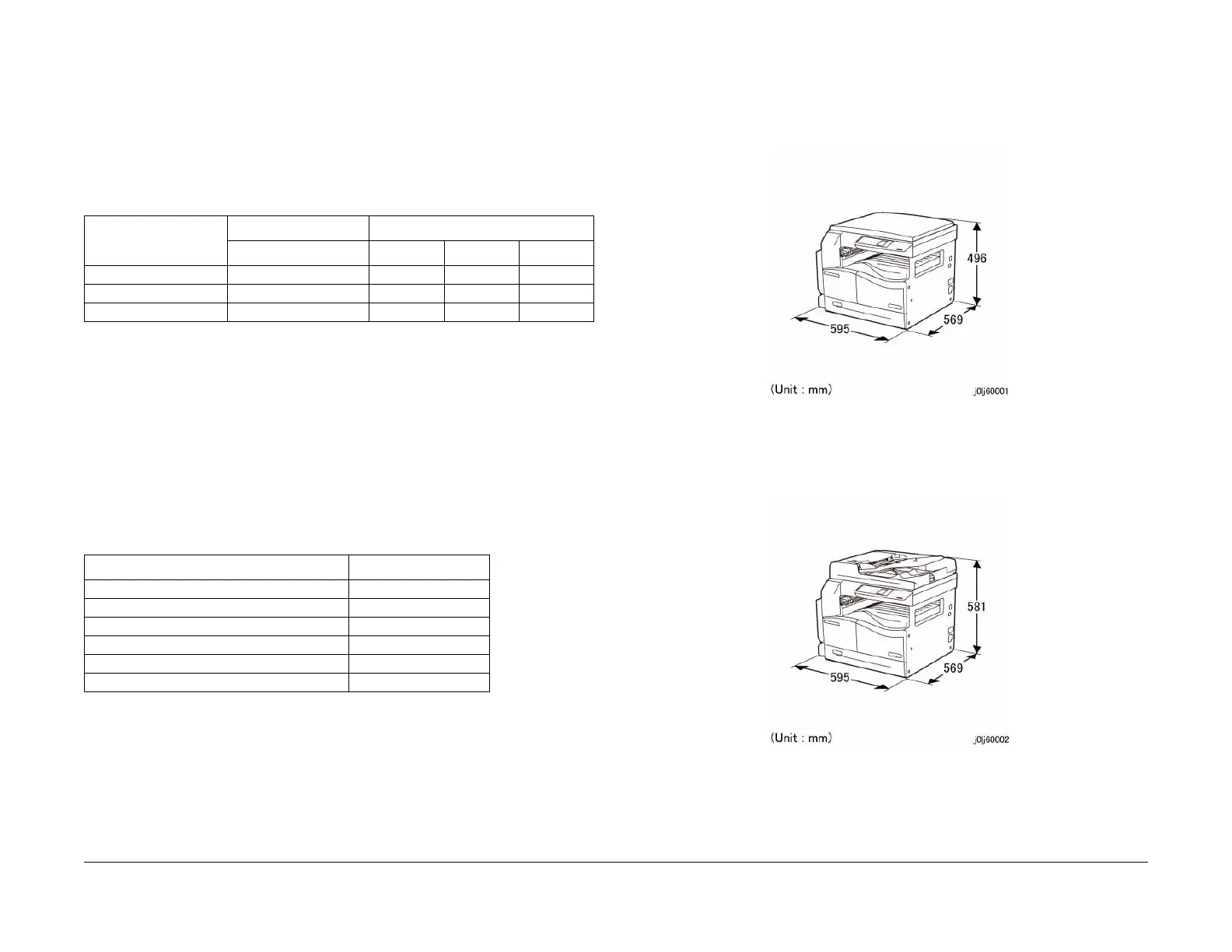

6.1.6.3 Detailed Machine Sizes
1. Basic Model 1
• Basic Model 1-1 (Main Unit + Platen Cover)
Machine Size (W x D x H): 595 mm x 569 mm x 496 mm (Figure 1)
*1: This machine size (W) does not include the Power Cord.
Figure 1 j0lj60001
• Basic Model 1-2 (Main Unit + DADF)
Machine Size (W x D x H): 595 mm x 569 mm x 581 mm (Figure 2)
*1: This machine size (W) does not include the Power Cord.
Figure 2 j0lj60002
2. Basic Model 2
Table 1
Product Configuration
Configuration Machine Size (mm) *1
Tray Module Width *2 Depth Height *3
Basic Model 1 None (Desktop) 595 569 462
Basic Model 2 STM 595 569 572
Basic Model 3 STM+Stand 639 685 964
Table 2
Configuration Main Unit Weight
Main Unit (IOT w/Dup + IIT w/DADF) 36.0 kg or lighter
Main Unit (IOT Simp + IIT + Platen Cover) 36.0 kg or lighter
Platen Cover 1.8 kg or lighter
DADF 6.3 kg or lighter
STM 10.7 kg or lighter
Stand 19 kg or lighter
