WorkCentre 5021/5019
6.4.2.8
Initial Issue
General Procedures
6.4.2.8 HFSI Counter Reset
Purpose
To clear all the HFSI Counters at one go.
To clear the HFSI Counters separately, refer to [6.4.2.9 HFSI Read/Clear].
NOTE: [950-807 Drum Cycle HFSI] will not be initialized.
NOTE: For more details on the HFSI Counter Code, refer to 6.3.4 in Chapter 6. Furthermore, it
is also listed in [6.4.2.7 Maintenance Report].
Procedure
1. Enter the CE Diag Mode and input 998-982 in the Chain-Link.
2. Pressing the [Start] button transitions to the [Check Initialization] screen. At this time, the
[CLR] and the [Start] button will be flashing.

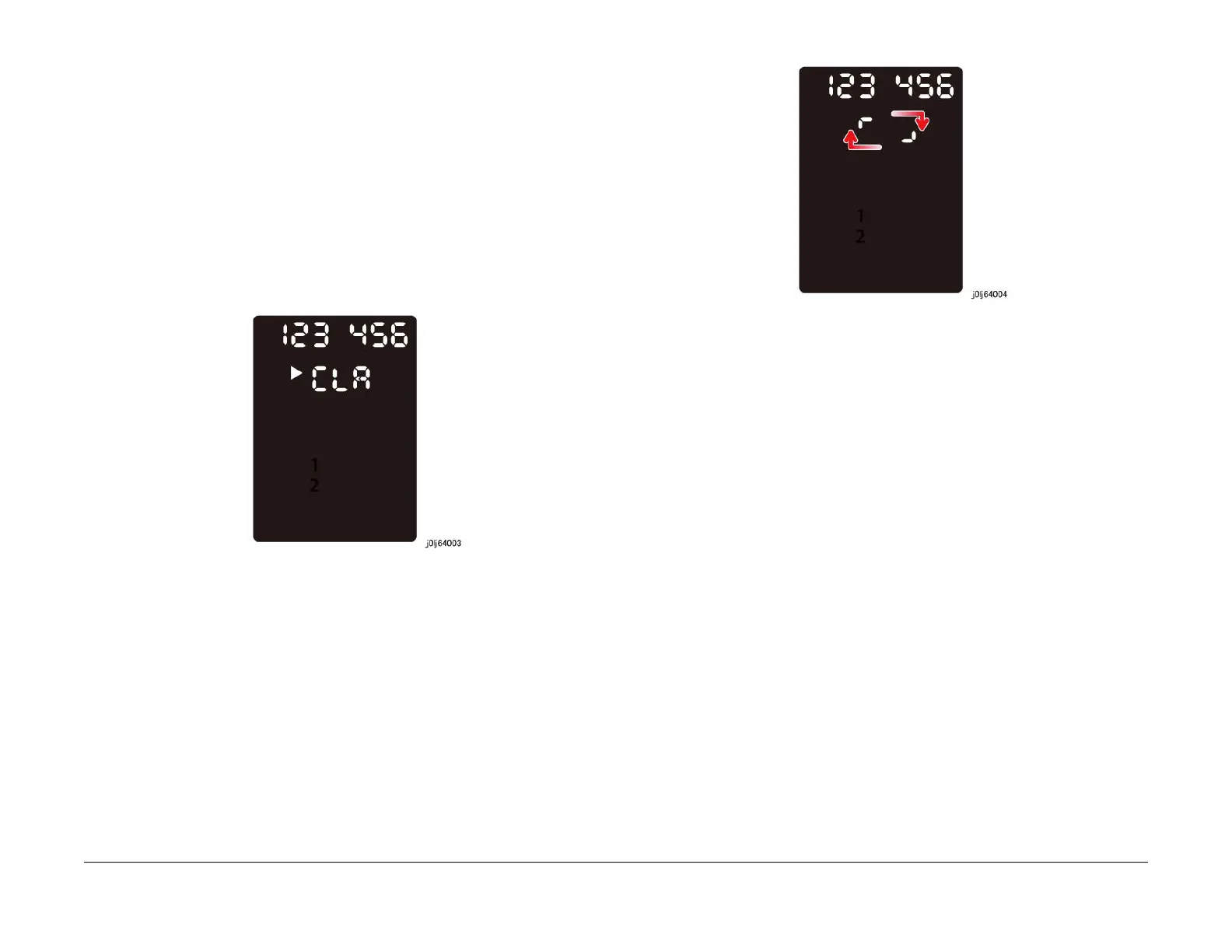

Figure 1 j0lj64003
3. Pressing the [Start] button starts the clearing of all [HFSI Counter].
• An animation will be displayed to indicate that it is in progress.
Figure 2 j0lj64004
4. When the clear all has completed successfully, [End] will flash twice -> remain ON to indi-
cate the completion of the [HSFI Counter] reset.
5. Pressing the [Clear All] button returns you to the [Chain-Link Number Entry] screen.
