Xerox WorkCentre 5021 Service Documentation

08/2012
6-97
WorkCentre 5021/5019
6.4.2.6, 6.4.2.7
General Procedures
Initial Issue

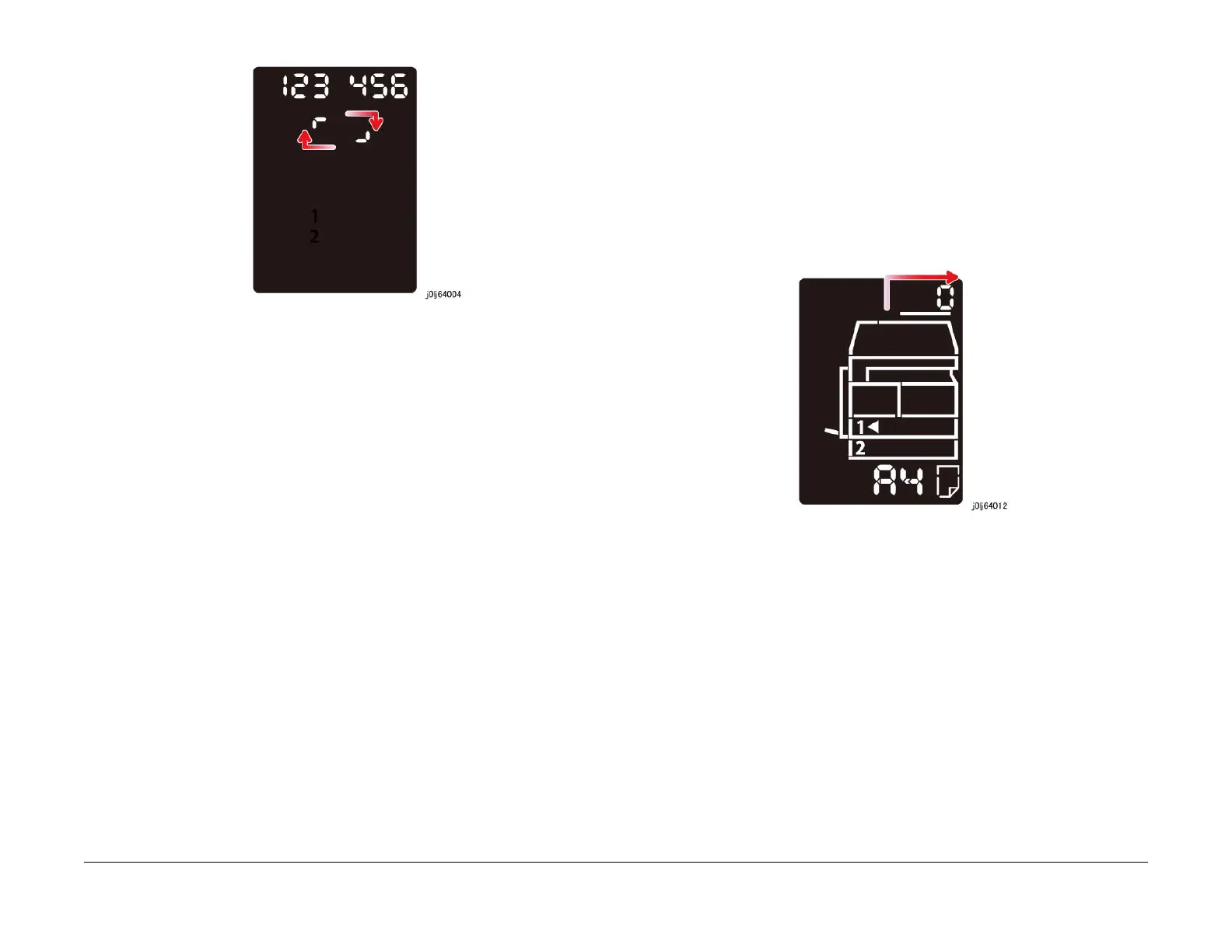

Figure 2 j0lj64004
3. Pressing the [Auto Stop] or [Stop] button causes the [End] to flash twice -> remain ON to
indicate that the Input Check has completed.
4. Pressing the [Clear All] button returns you to the [Chain-Link Number Entry] screen.
6.4.2.7 Maintenance Report
Purpose
Prints the Maintenance items that can be set from and displayed on the CE Mode.
Procedure
1. Enter the CE Diag Mode and input 999-980 in the Chain-Link.
2. Set the [Paper Size] using the [Paper Supply] button.
3. Pressing the [Start] button prints the Maintenance Report using the following settings.
• 1 Sided Print - fixed. (The Maintenance Report cannot be printed using 2 Sided.)
• Quantity: 1 - fixed.
4. An animation will be displayed when this is in progress.
Figure 1 j0lj64012
5. After the last output or when the [Stop] button is pressed, [End] will be displayed.
6. Pressing the [Clear All] button returns you to the [Chain-Link Number Entry] screen.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
