General Procedures

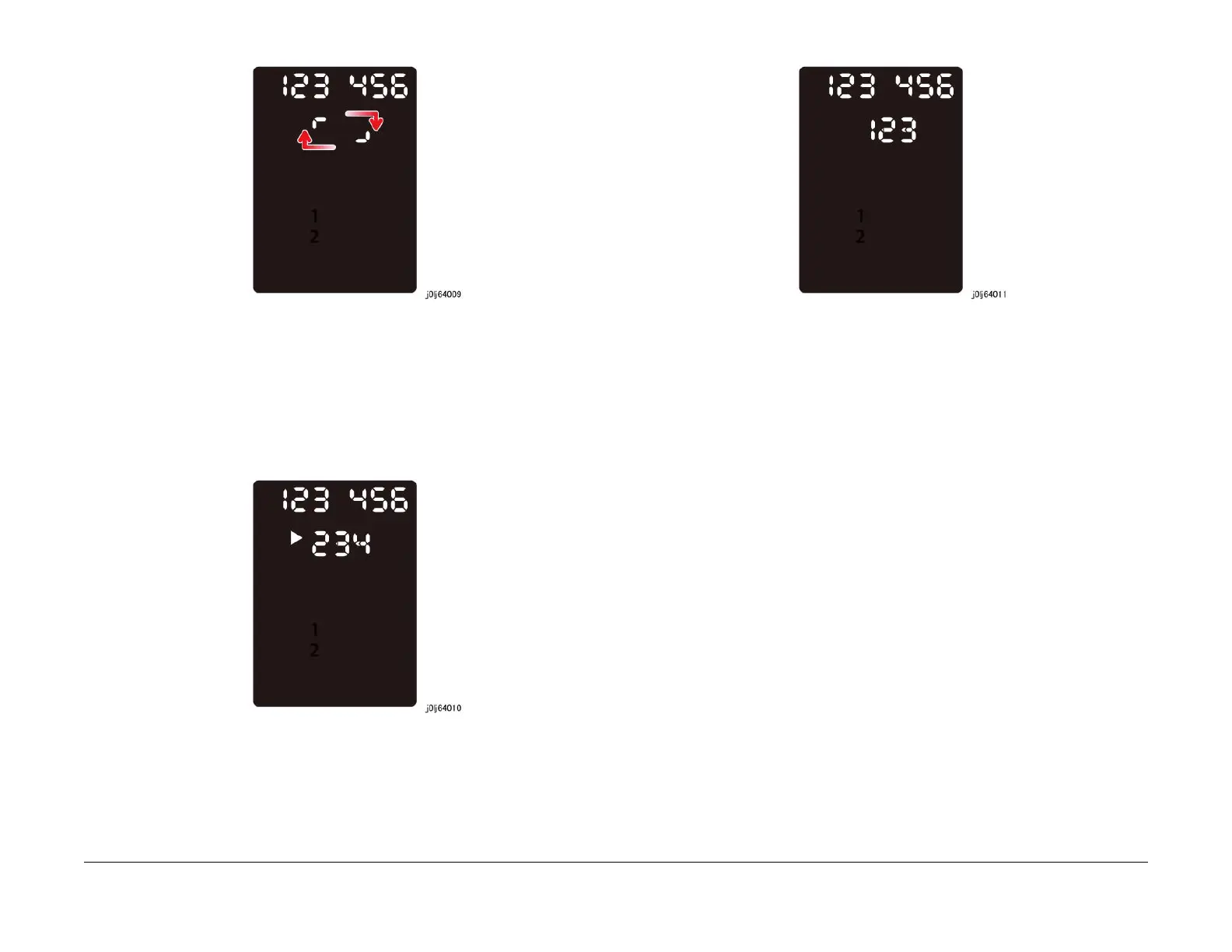

Figure 2 j0lj64009
4. After the computation has completed, the result for ATC Correction Target Value will be
displayed on the UI.
• The ATC Correction Target Value is displayed with a [triangle mark] at its heading.
Pressing the [Original Size] button will display the ATC Average Value and the ATC
Correction Target Value alternately on the UI.
– ATC Correction Target Value
Figure 3 j0lj64010
– ATC Average Value
Figure 4 j0lj64011
5. Pressing the [Clear All] button returns you to the [Chain-Link Number Entry] screen.
