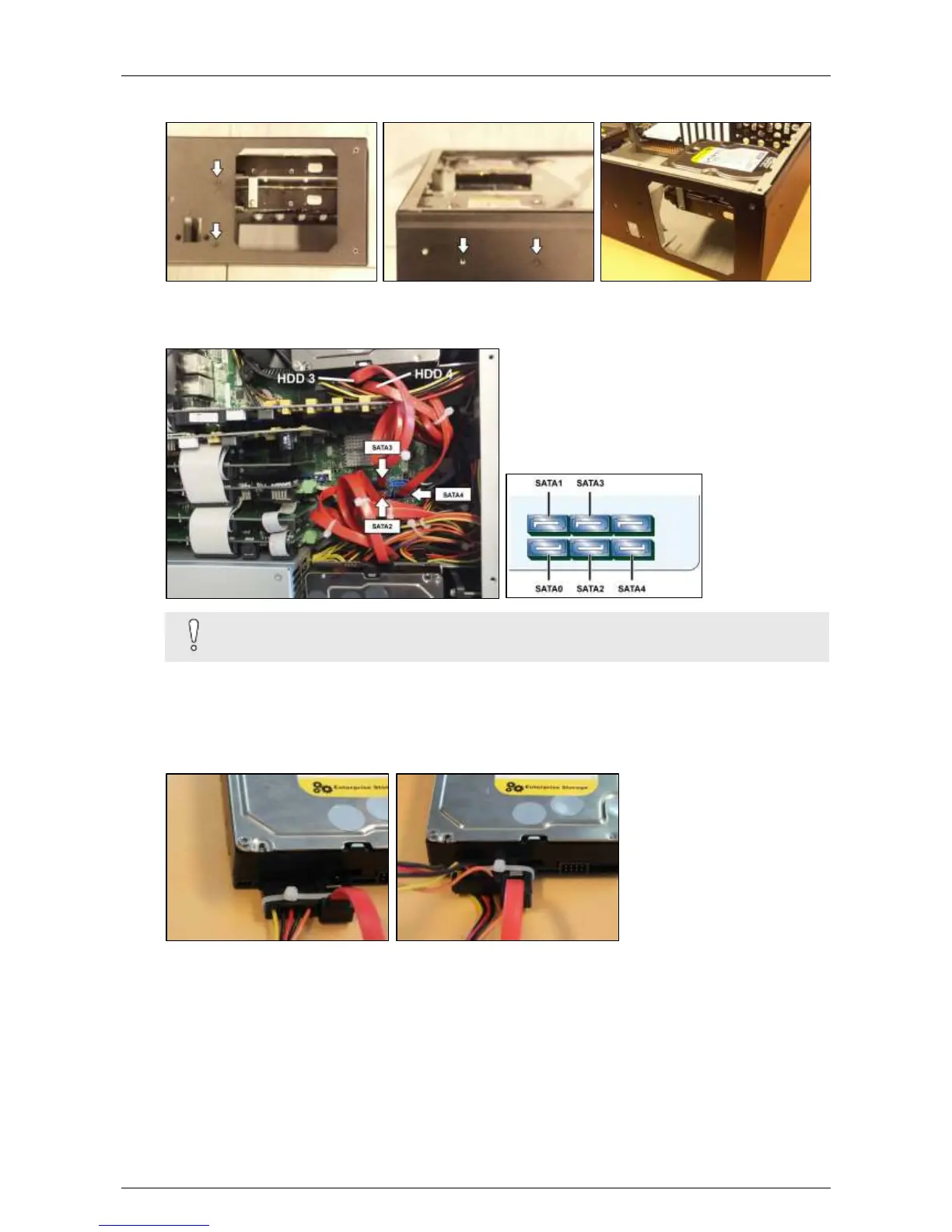

8. Fix the support to the casing with 4 screws (#17439080): 2 at the front, and 2 at the right side of the
casing.
9. Connect disk 3 to the SATA3 connector on the motherboard with a SATA cable (#1652087*).
10. If necessary, connect disk 4 to the SATA4 connector on the motherboard with a SATA cable
(#1652087*).
Caution!
Do not bend the SATA cables too sharply to prevent cable damage.
11. For the power supply to the disk, take an unused SATA power cable and connect it as follows:
- Use the connector that is closest to the power supply for disk 4.
- Use the next connector for disk 3.
12. If the SATA cables do not have a locking mechanism, use tie-wraps to secure the cables on the
disk(s) in the following way:
