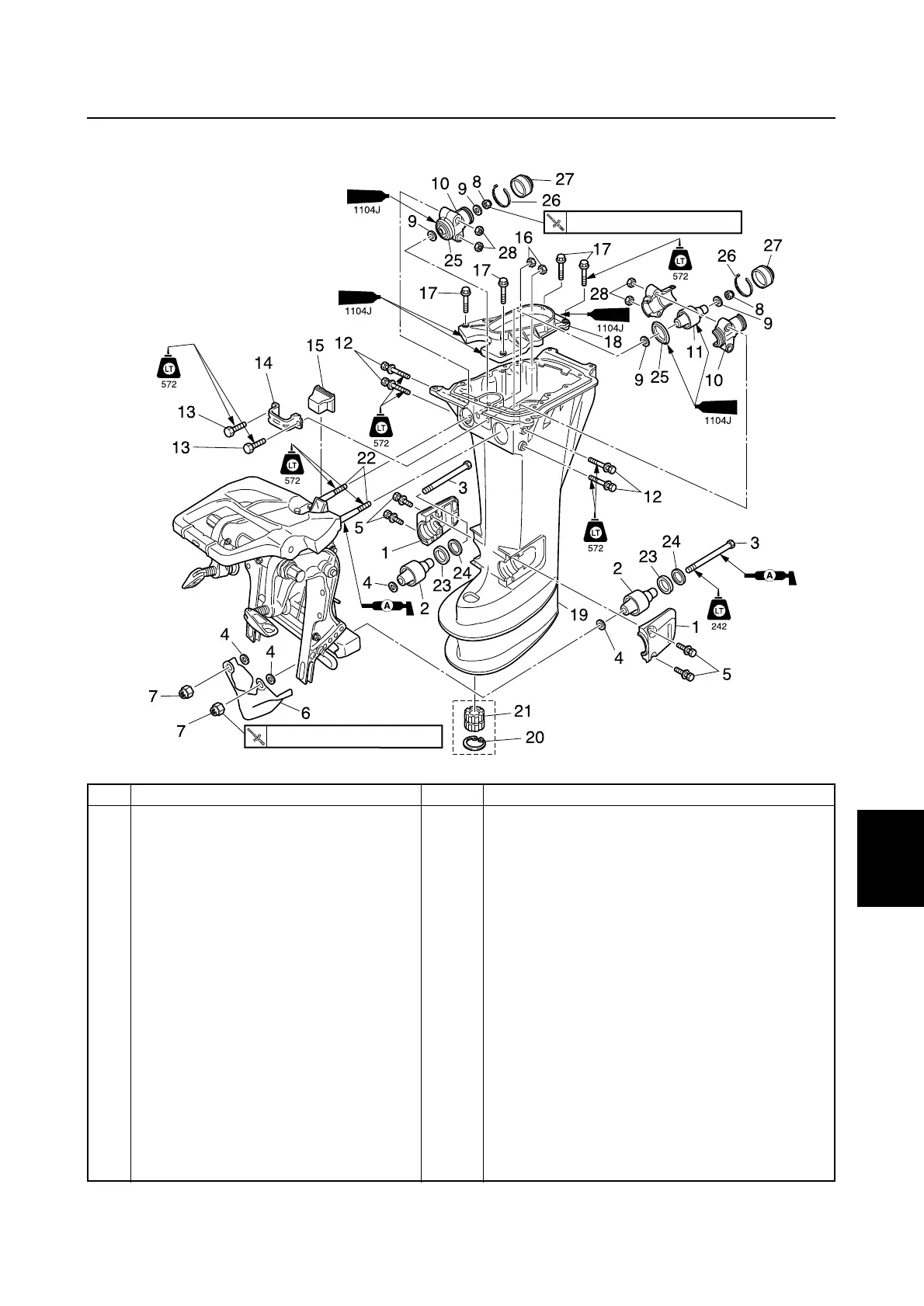

Yamaha E40J - Page 157

6F65G11
7-8
9
8
7
6
5
4
3
2
1
Upper case, pivot shaft
6F67030E
28 N·m (2.8 kgf·m, 20 ft·lb)
55 N·m (5.5 kgf·m, 40 ft·lb)
No. Part name Q’ty Remarks
1 Cover 2
2 Lower mount 2
3 Bolt 2 M12 × 130 mm
4 Washer 4
5 Bolt 4 M6 × 25 mm
6 Cover 1
7 Nut 2
8 Nut 2
9 Washer 4
10 Bracket 2
11 Upper mount 2
12 Bolt 4 M8 × 50 mm
13 Bolt 2 M6 × 25 mm
14 Bracket 1
15 Damper 1
16 Nut 2
17 Bolt 4 M6 × 25 mm
